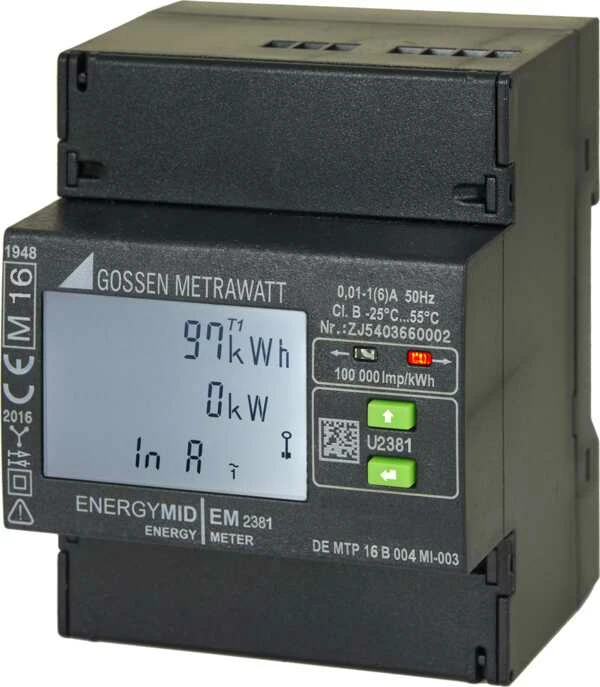

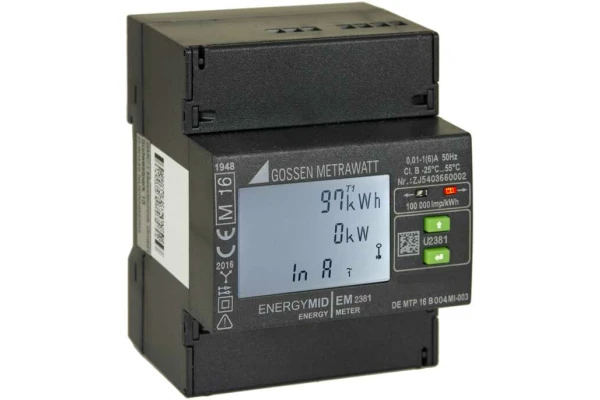

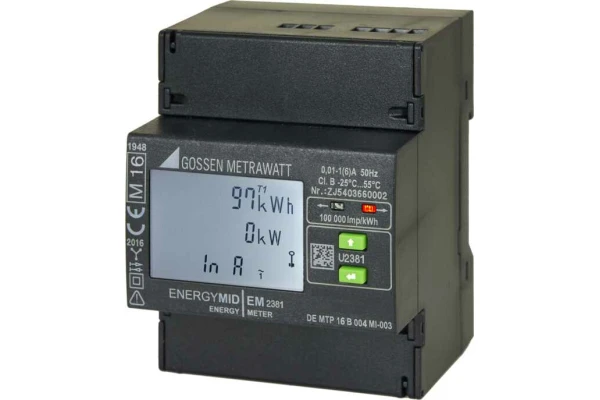

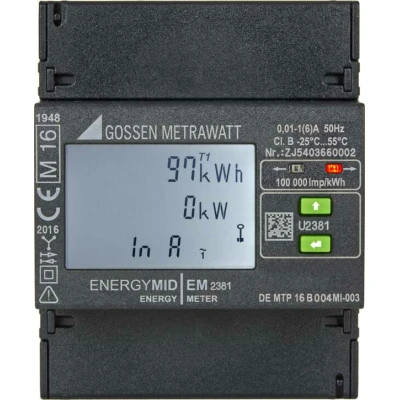

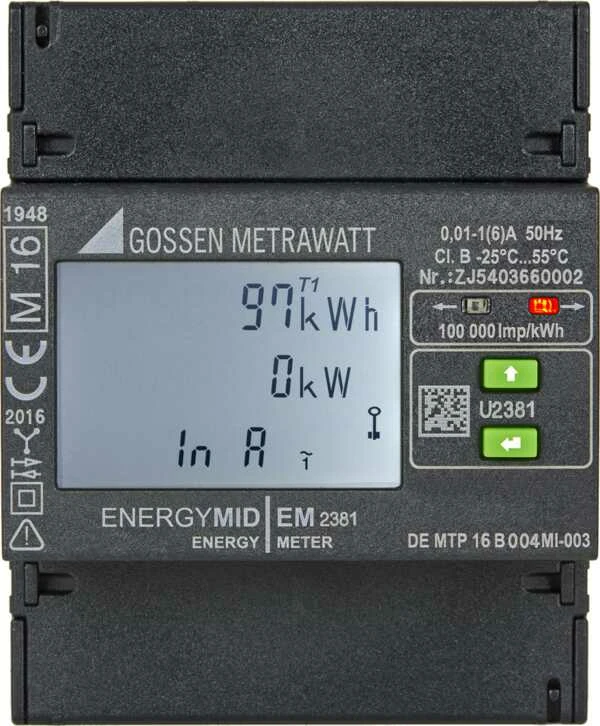

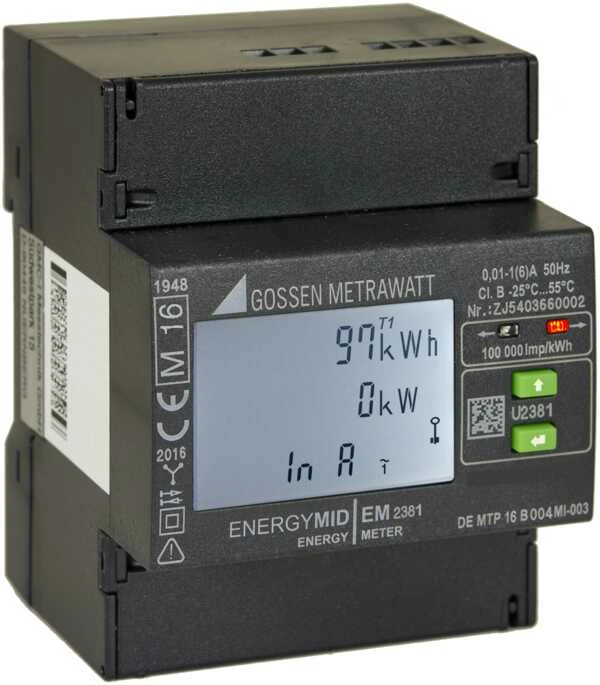

ENERGYMID EM2381

ENERGYMID – Multifunctional Energy Meter – 2-wire system and transformer connection 1 (6) A

The MID approved meters can be used to acquire and bill active energy in industrial, household, commercial and building management applications.

  • 1 (6) A transformer connection
  • Extremely compact housing (4 standard width units, i.e. 72 mm) with integrated interface
  • Fast error detection thanks to color change at the display, e.g. direction of phase rotation, phase failure, transformers with reversed polarity or overload
  • Multifunctional variant – up to 33 additional measured quantities such as reactive power, apparent power, power factor and frequency

Additional Features:

  • Accuracy class B for industrial and commercial use, as well as for household use with highly demanding requirements
  • Suitable for billing purposes thanks to initial calibration at the factory in accordance with MID (conformity assessment procedure modules B and D)
  • Measurement of energy import and export thanks to 4 quadrant measurement
  • Inexpensive power monitoring by acquiring THD for current and voltage, as well as neutral conductor current IN
  • Flexible communication via integrated bus interfaces (M-Bus, Modbus RTU, Modbus TCP, LON or BACnet), or universal pulse output (2 ea. S0 with adjustable pulse rate and duration, as well as selectable voltage range)
  • High-contrast, 3-line LCD (42 x 28 mm) with LED background illumination
  • Calibration even with adjustable transformation ratios
  • Optionally integrated load profile with 96 registering periods per day for 60 days with event logger (e.g. overvoltage or changing CT/VT values)
  • 8 tariff inputs which can be adjusted to future energy market tariff structures: 4 tariffs (hardware-controlled as standard), 4 additional tariffs with bus (software-controlled)
  • Manipulation is ruled out thanks to tamper-proof cover and configuration disabling

Istruzioni per l’uso
Istruzioni per l’uso 2
Certificato CE
Scheda tecnica
Articolo professionale
Guida di riferimento rapido
Opuscolo, volantino, brochure, …
Certificato 4
Certificato 5
EnergyMID Tool V1.27 – Configuration for Modbus and M-Bus
LON installation V1.1
IP Firmware (Ethernet Loader) V1.18
IP

  • ENERGYMID Energy meter
  • Condensed operating instructions
