EM2289, MID, kWh, 4-L, 5(80)A TCP

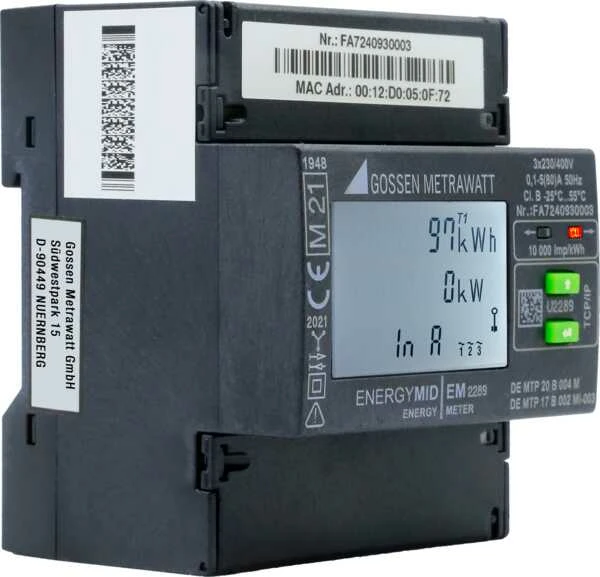

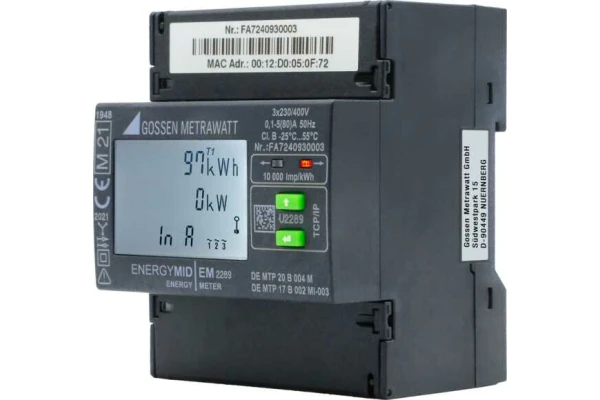

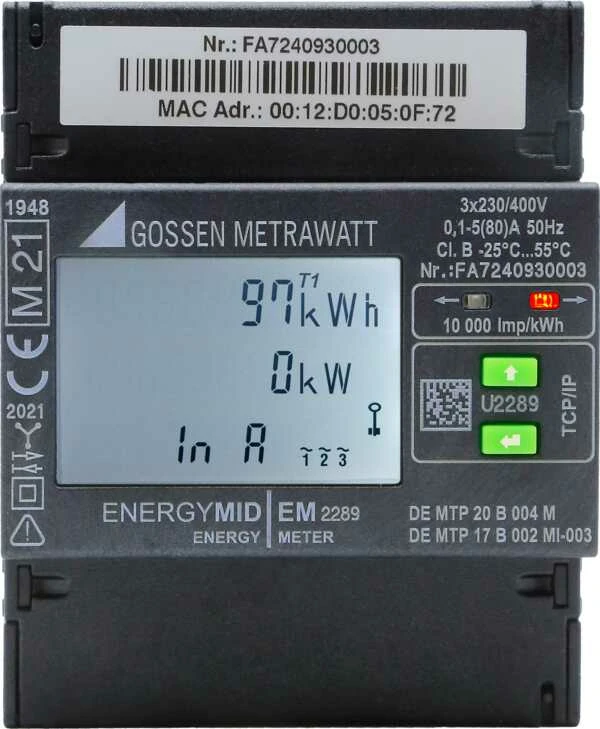

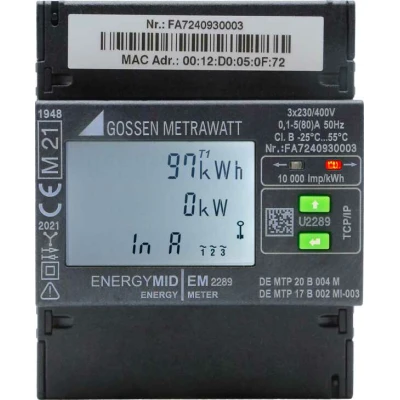

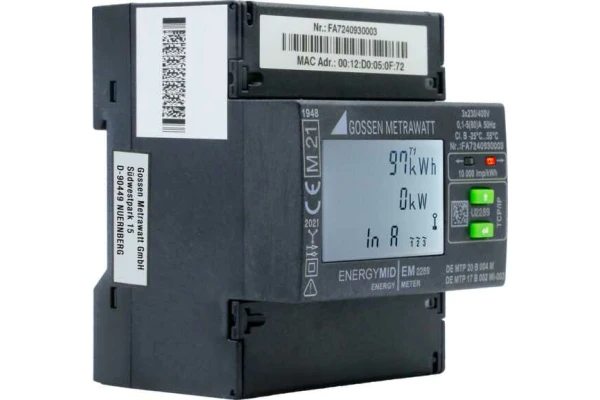

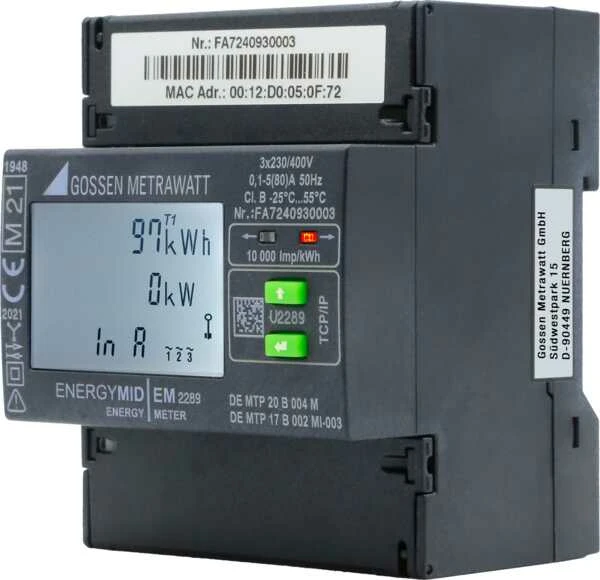

ENERGYMID – Multifunctional Energy Meter 4-wire system and direct connection 5 (80) A
The MID approved meters can be used to acquire and bill active energy in industrial, household, commercial and building management applications.
- 5 (80) A direct connection
- Extremely compact housing (4 standard width units, i.e. 72 mm) with integrated interface
- Fast error detection thanks to color change at the display, e.g. direction of phase rotation, phase failure, transformers with reversed polarity or overload
- Multifunctional variant – up to 33 additional measured quantities such as reactive power, apparent power, power factor and frequency
Additional Features:
- Accuracy class B for industrial and commercial use, as well as for household use with highly demanding requirements
- Suitable for billing purposes thanks to initial calibration at the factory in accordance with MID (conformity assessment procedure modules B and D)
- Measurement of energy import and export thanks to 4 quadrant measurement
- Inexpensive power monitoring by acquiring THD for current and voltage, as well as neutral conductor current IN
- Flexible communication via integrated bus interfaces (M-Bus, Modbus RTU, Modbus TCP, LON or BACnet), or universal pulse output (2 ea. S0 with adjustable pulse rate and duration, as well as selectable voltage range)
- High-contrast, 3-line LCD (42 x 28 mm) with LED background illumination
- Calibration even with adjustable transformation ratios
- Optionally integrated load profile with 96 registering periods per day for 60 days with event logger (e.g. overvoltage or changing CT/VT values)
- 8 tariff inputs which can be adjusted to future energy market tariff structures: 4 tariffs (hardware-controlled as standard), 4 additional tariffs with bus (software-controlled)
- Manipulation is ruled out thanks to tamper-proof cover and configuration disabling
- ENERGYMID Energy meter
- Condensed operating instructions
