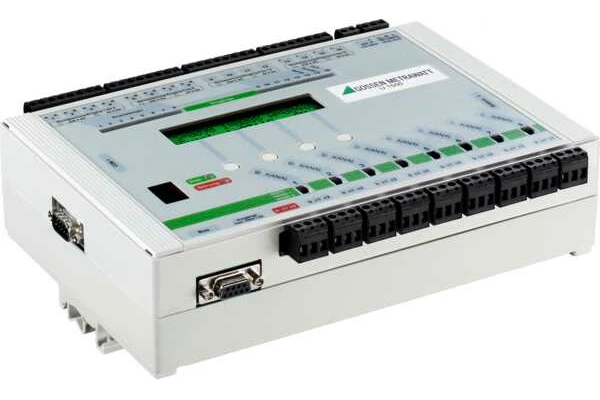

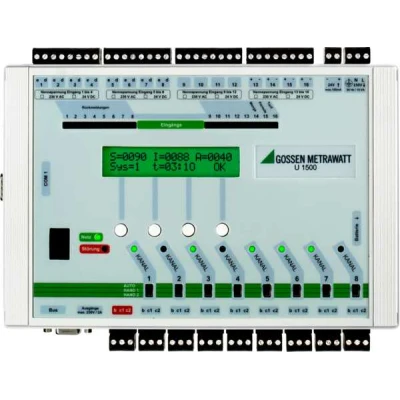

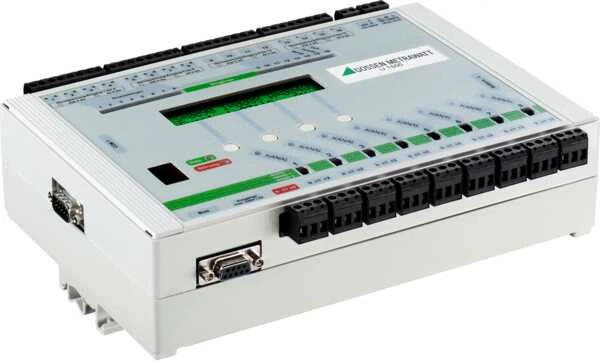

U1500
Optimization System for Load Management
extendable in steps from 8 to 64 optimizing channels
- Minimal interference in the production process thanks to combined trend-extrapolation process
- Can be expanded in steps for 8 to 64 optimizing channels
- Simultaneous optimization of various media, e.g. electrical power and gas
- Future oriented setpoint management with specifications of the load profile for 7 days with 96 values each
- Inputs for operating feedback from the consumers
- Takes minimum and maximum making and breaking times of the power consumers into consideration
- Special control programs for kitchen optimization
- 3 Years Warranty
- Made in Germany
- Inputs: 16, individually switchable 24 VDC or 230 VAC,
- with potential-isolated in two groups
- Outputs: 9 Relays changer, 250 VAC max. 2 A,
- power supply 24 VDC, max. 100 mA
- Power supply: 230 V AC, 50 Hz, max. 15 VA
- Dimensions: 240 x 160 x 60 mm
- Assembly: DIN rails according to EN 50022
Features Versions
Article number U1500A0 U1500A1 U1500A2
Display, Keyboard x x –
Optimization channels 8 8 8
Extentability up to 64 channels – x x
