AC/DC Current transformer with transmitter functionality: Measurement range 50 A AC/DC

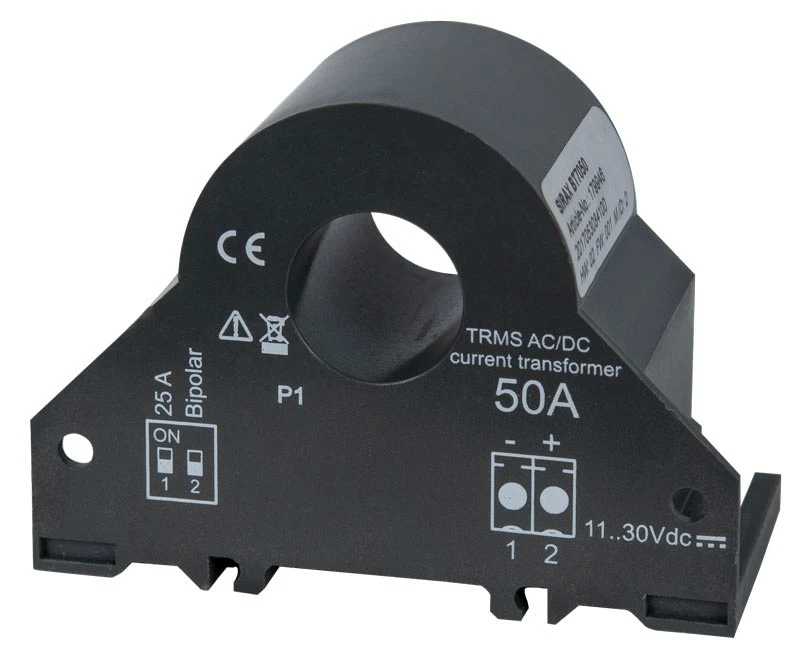

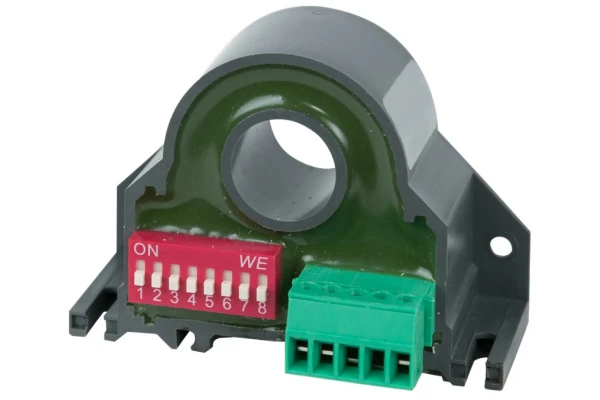

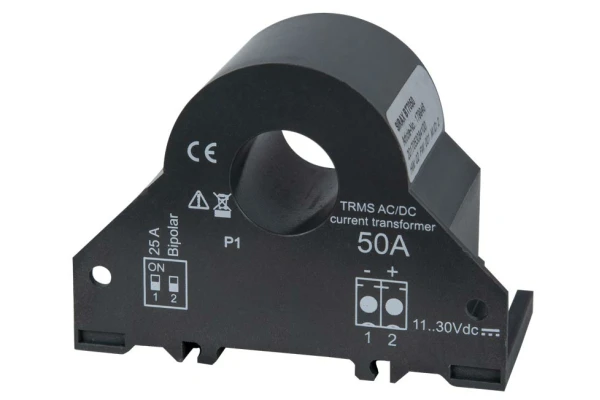

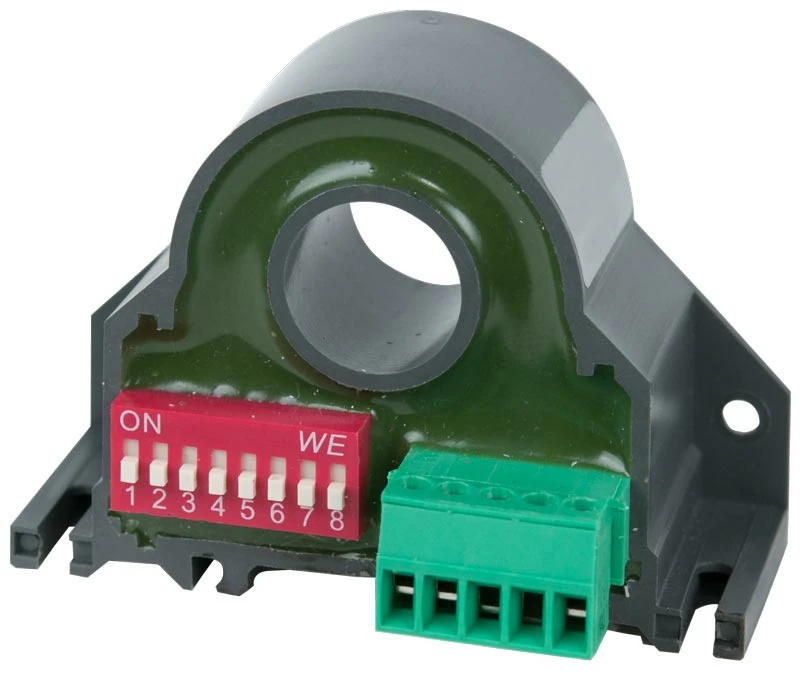

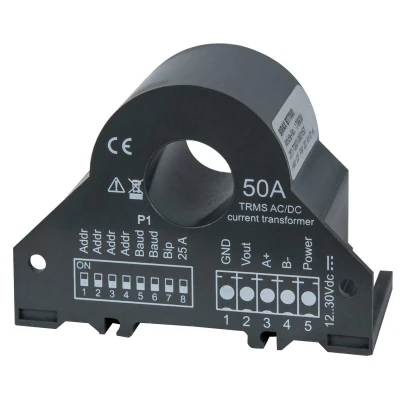

SIRAX BT7000 / BT7050 current transformers with integrated transmitter functionality for monitoring single-phase AC or DC applications. The current measurement is done galvanically separated from the measured line. The large number of measured variables, the maximum current of up to 50 A AC/DC allow a versatile use of the devices.

  • Break-resistant plastic housing made of PBT
  • Flame retardant and self extinguishing according to UL94 V0
  • Galvanic separation from the measuring circuit
  • Configuration by means of configuration software
  • Serial RS485 Modbus/RTU output and analogue 0…10 V or 4…20 mA output
  • DIN rail or wall mounting for vertical or horizontal position

The AC/DC current transformers with transmitter functionality are the ideal solution for applications where only current needs to be monitored. The devices are perfect for monitoring medium / large photovoltaic installations, battery charging systems and industrial processes.
