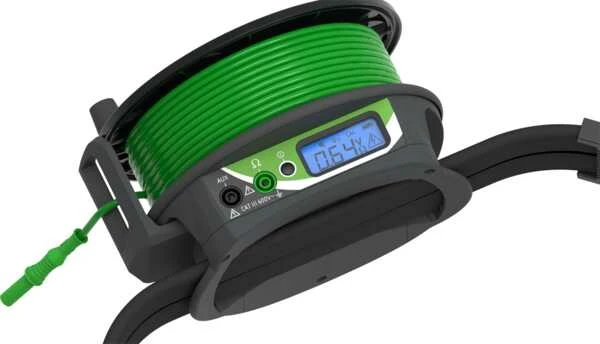

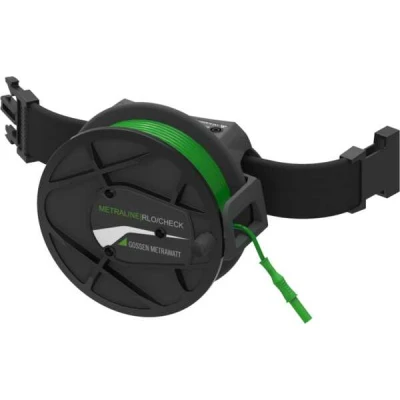

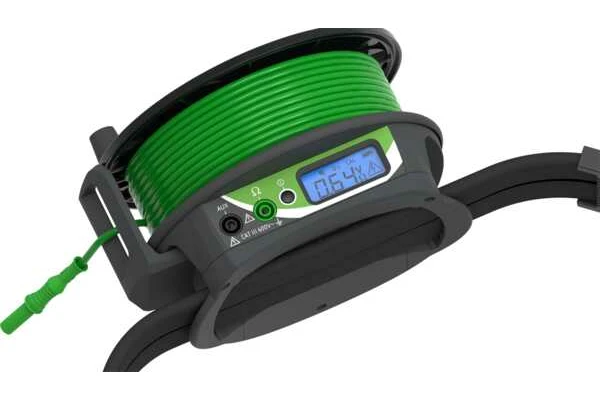

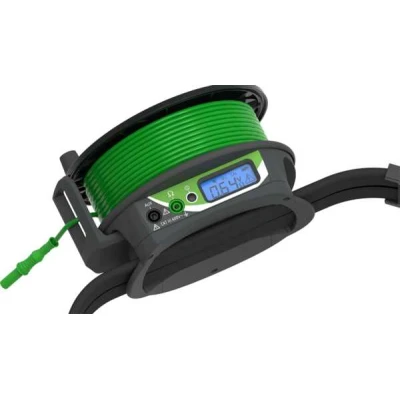

The Metraline RLO-Check is a low-resistance ohmmeter with digital display for hazard-free testing of line resistances up to 20 Ω in electrical installations with nominal voltages of up to 500 V.

The Metraline RLO-Check is suitable for quick and safe testing of large protective conductors, ground conductors and equipotential bonding conductors, as well as shielding and lightning protection systems.

The measured value appears at the digital display with red (no-go) or blue (go) background illumination. Values of less than 1 Ω can be additionally indicated by means of a buzzer.

The METRALINE RLO-CHECK is a measuring instrument for checking the continuity of protective conductors and equipotential bonding.

1 Measuring instrument
4 Batteries (AA)
1 Hip belt
1 Cable reel with 30 m cable
1 Test probe with protective cap
1 Alligator clip
1 Measurement coil cable
1 PE adapter for electrical outlets
1 Short-circuit jumper (0 Ω)
1 Calibration shunt for continuity threshold (1 Ω)
1 Set of operating Instructions
1 Test certificate
