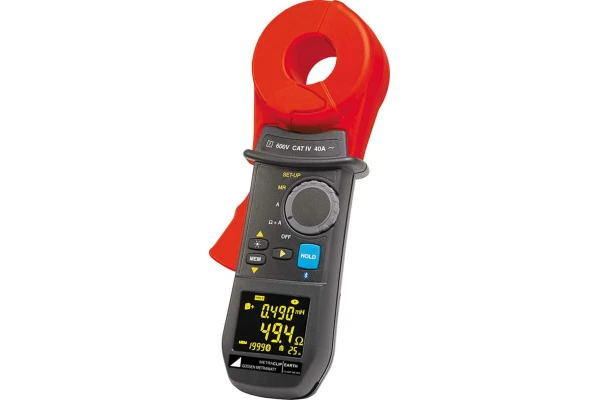

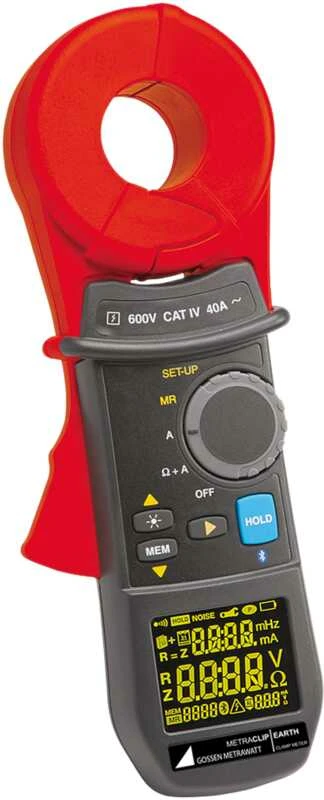

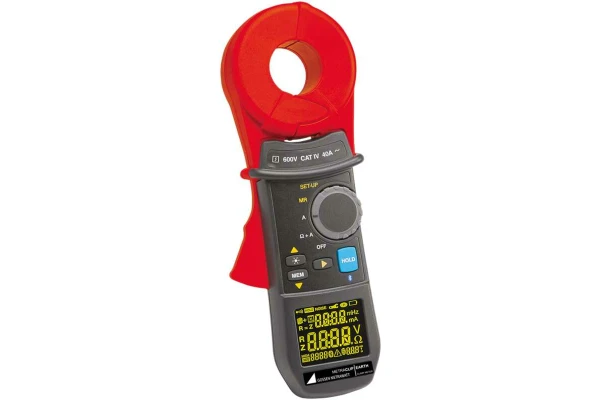

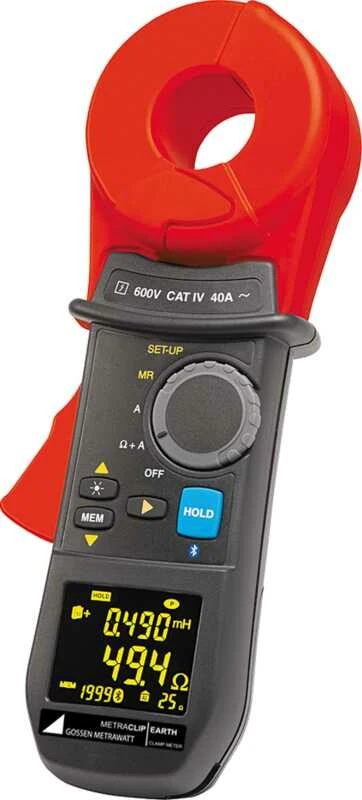

Clamp Meter for Measuring of Ground Loop Resistance, Loop Inductance, Touch Voltage and Leakage Current

The earth clamp meter can be used to test the resistance of any conductive system which demonstrates loop characteristics.

  • Compact and user-friendly – One-hand operation thanks to minimal weight and easy to open clamp with spring force compensation
  • Large OLED display: up to 3 measured values can be read simultaneously
  • Clamp opening Ø 35 mm max.
  • Minimal influence due to interference current
  • Measured value memory for resistance and leakage current, each with date and time
  • Extremely safe thanks to CAT IV 600 V

Measuring functions

  • Ground loop resistance: 0,01 … 1500 O
  • Loop inductance: 10 … 500 µH
  • Leakage current: 0,2 mA … 40 A AC
  • Touch voltage: 0,1 … 75 V

Following measurings are possible:

  • Earth resistance measurement if grounding is connected in series to the equipotential bonding conductor.
  • Other earth measurements, for example via overhead ground wires or interconnected transmission towers for power transmission or telecommunications.
  • Measurements at distributed ground connections with a common ground plane.

Istruzioni per l’uso
Certificato CE
Scheda tecnica
Guida di riferimento rapido

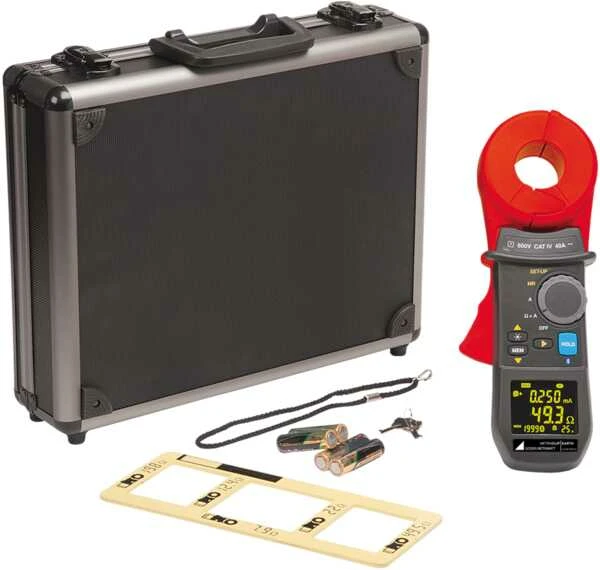

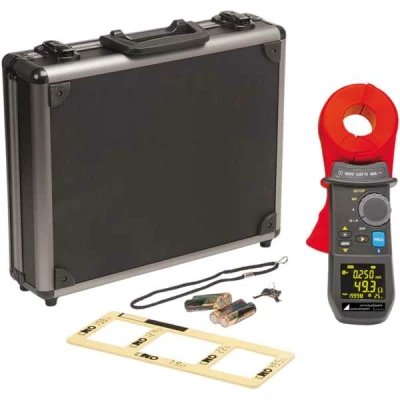

1 Earth clamp meter in carrying case
4 Batteries (LR6 or AA)
1 Test certificate
1 Mini CD ROM with operating instructions in D, GB, F, E, I
1 Condensed operating instructions in D, GB, F, E, I as well as NL, PL, RO, printed
1 Safety data sheet in 20 languages
1 Calibration loop
