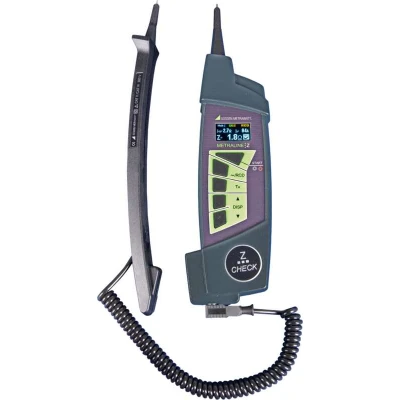

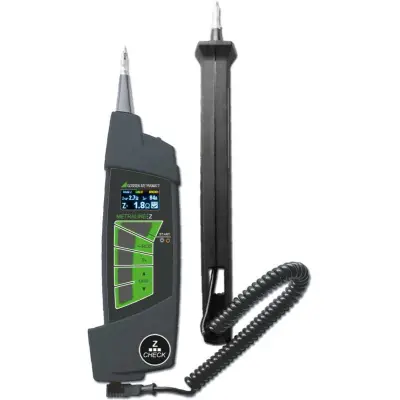

Loop resistance measuring instrument

The test instrument is used to measure earth-fault loop impedances and line impedances.

  • Table of common protective devices can be displayed
  • Digital display, backlit color OLED display, switching between brief and detailed representation
  • LED for measurement point illumination
  • Patented test probe retainer
  • Compact and rugged – for service calls under harsh conditions and laboratory use

The measuring range of 0 to 200 Ω (0.27 Ω to 200 Ω per VDE 0413 / EN 61557) permits calculation of short-circuit current from 0 to 23 kA.

The following measurements can be performed with the METRALINE Z-CHECK:

  • Fault loop impedance with short-circuit current
  • Fault loop impedance with short-circuit current without tripping the RCCB
  • Line impedance with short-circuit current
  • Line voltage • Phase detection

Istruzioni per l’uso
Certificato CE
Scheda tecnica
Guida di riferimento rapido
Opuscolo, volantino, brochure, …
Opuscolo, volantino, brochure, … (2)

1 Test instrument with mobile test probe
4 Batteries (AAA)
1 Pouch
1 Condensed operating instructions
1 CD-ROM with operating instructions in available languages
1 Factory calibration certificate
