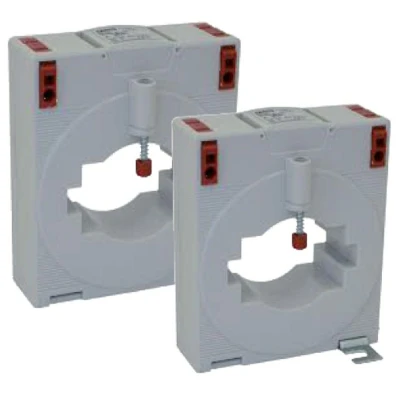

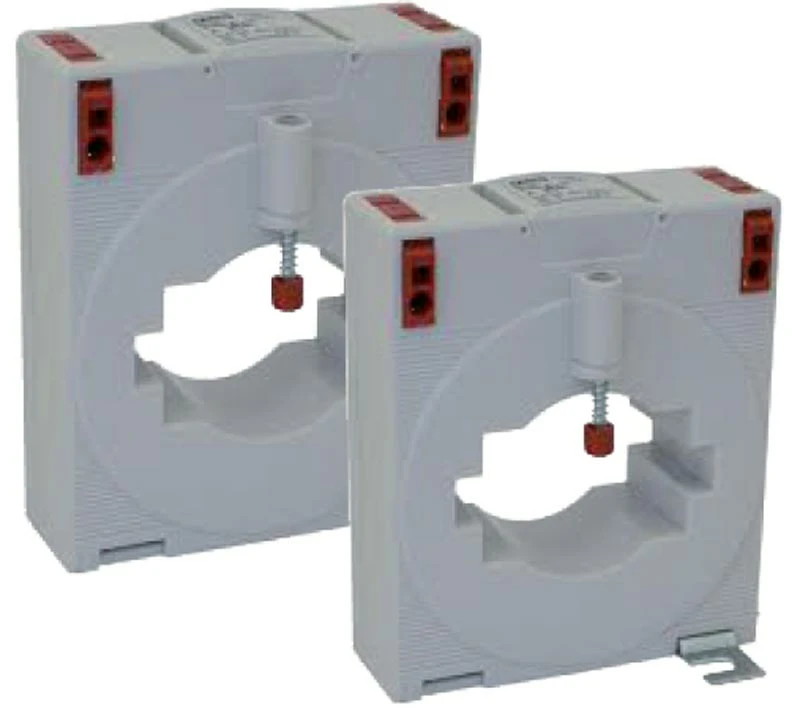

Bushing-type current transformer of the “XCTB” series for power quality applications up to 20 kHzapplications

The bushing-type current transformers for power quality applications ensure high-precision transmission up to 20 kHz and are designed for use in harmonic-loaded 9 kHz networks. The output signals are 5 A as in the conventional bushing-type current transformers. The power specifications also correspond to the usual values. Thus, they can also be used in conventional 50 Hz applications.

  • For power quality applications up to 20 kHz
  • Suitable for harmonic loaded networks up to 9 kHz with the basic frequencies of 50 Hz or 60 Hz
  • High insulation test voltage up to 6 kV
  • Tested lightning surge voltage for 690 V systems according to the IEC 61439-1 / -2
  • Safe housing with high flame protection
  • Protection against contamination due to optimized housing
  • Easy and quick installation
  • Safe, time-saving and screwless connection technology for massive and flexible conductors
  • Various mounting options such as wall mounting, DIN rail mounting or Quick-Fix are available
  • Shock and vibration resistant
  • Maintenance-free
