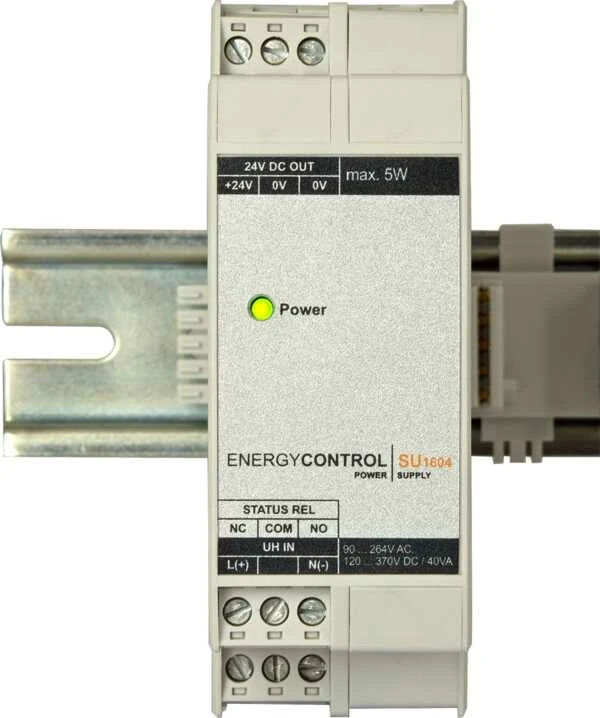

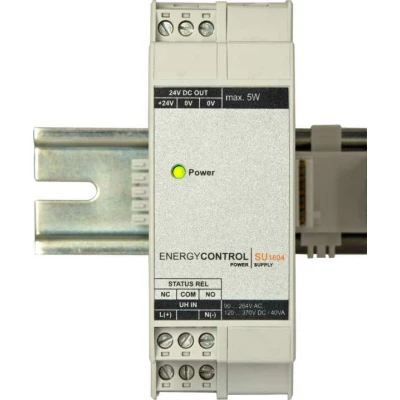

SU1614
Power supply unit for summator SU1604
Power supply unit for the voltage supply of the summator SU1604.
U1614 – Power supply with wide range input AC – DC
- Rated operating range: AC 90 V … 264V
- Frequency: 47 … 440Hz
- Rated operating range: DC 120 V … 370V
- Efficiency: 83%
- DC output: 24 V 5 W max.
- Voltage accuracy: ±2
- Total DC output power: 24 V 20W max. (incl. DC output)
- Power consumption: 40 VA max.
- U1604 (base module): 5 W
- U1624 (12x S0 input): 1 W
- Fuse: T1.6A/250V (20mm)
- Status relay: 250 V AC, 5A, 3-pole, AgNi 90/10
- 1x SU1614 power supply module
- 2x mounting rail connector ME 17.5 T-Bus
- Short manual (German and English)
