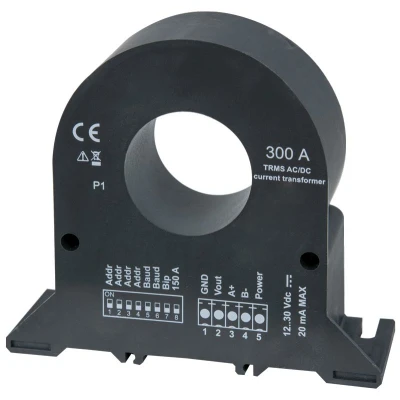

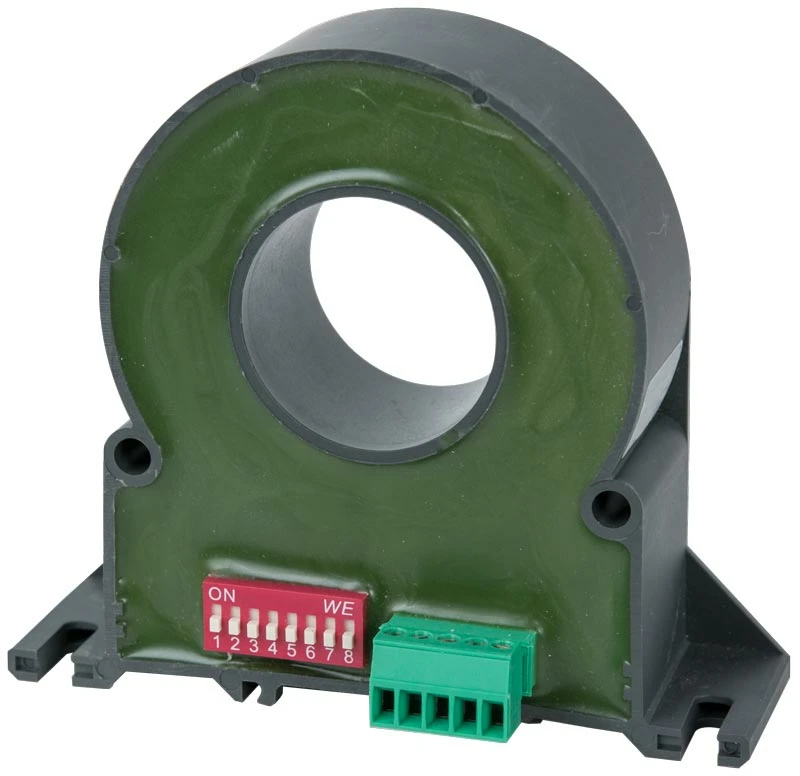

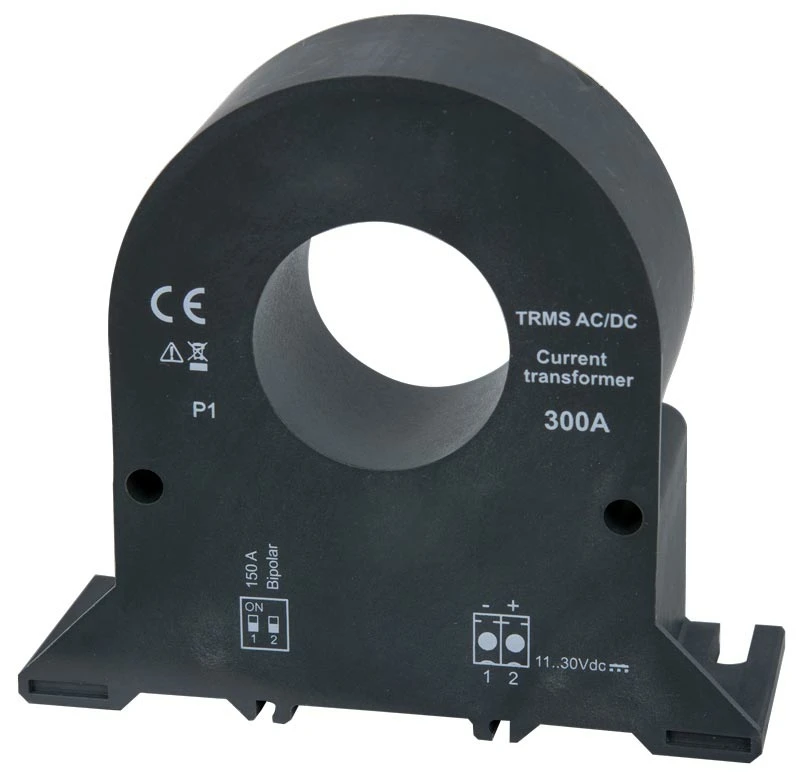

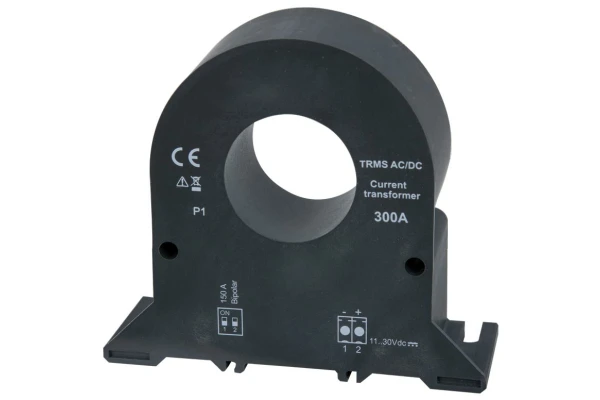

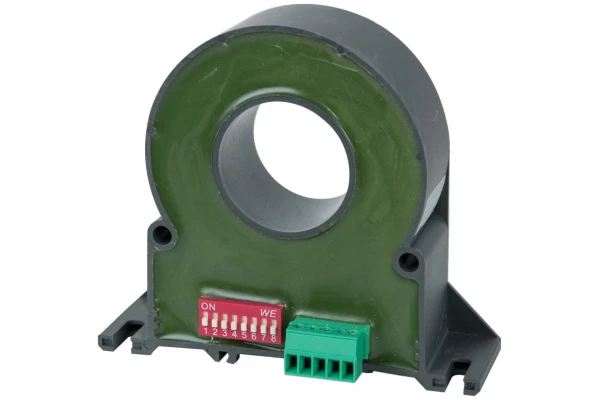

AC/DC Current transformer with transmitter functionality: Measurement range 300 A AC / 400 A DC

SIRAX BT7100 / BT7150 current transformers with integrated transmitter functionality for monitoring single-phase AC or DC applications. The current measurement is done galvanically separated from the measured line. The large number of measured variables, the maximum current of up to 300 AAC or 400 ADC allow a versatile use of the devices.

  • Break-resistant plastic housing made of PBT
  • Flame retardant and self extinguishing according to UL94 V0
  • Current sensing by Hall effect; range: 300 AAC / 400 ADC
  • Galvanic separation from the measuring circuit
  • Configuration by means of configuration software
  • Serial RS485 Modbus/RTU output and analogue 0…10 V or 4…20 mA output
  • DIN rail or wall mounting for vertical or horizontal position

The AC/DC current transformers with transmitter functionality are the ideal solution for applications where only current needs to be monitored. The devices are perfect for monitoring medium / large photovoltaic installations, battery charging systems and industrial processes.
