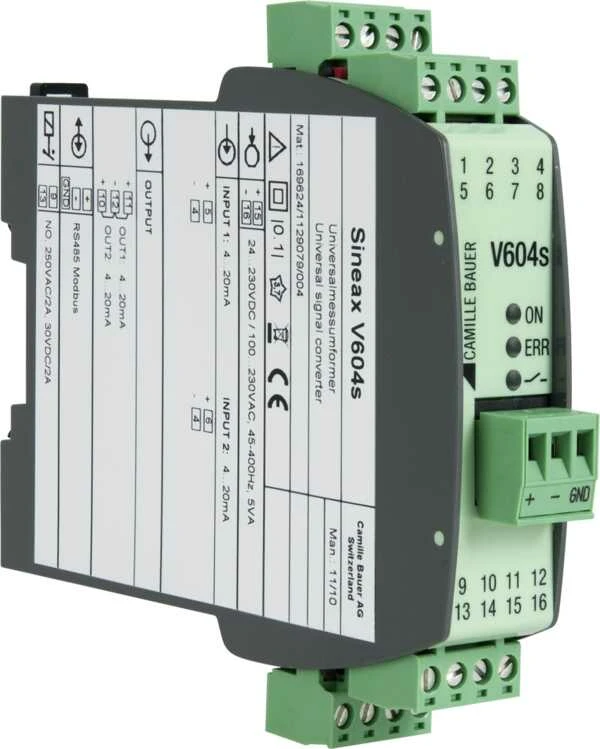

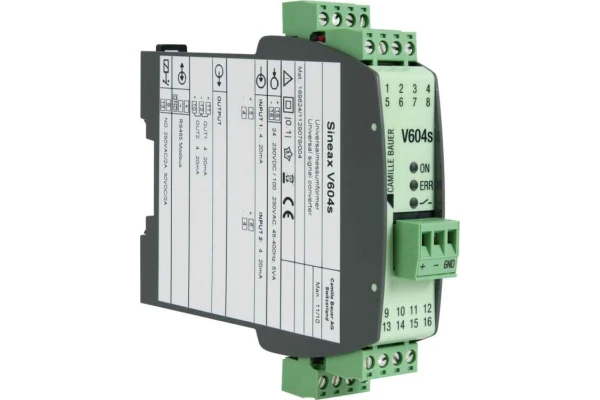

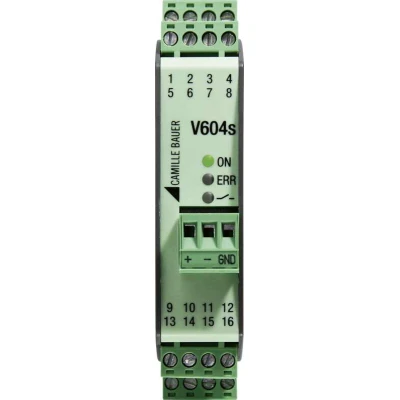

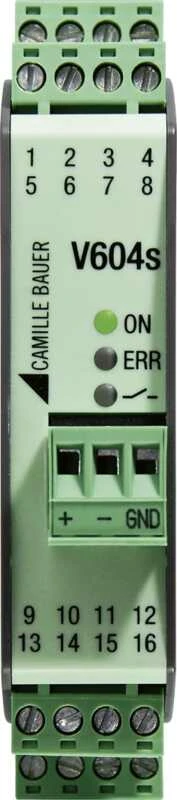

Prog. Measuring Transducer for Temperature and DC Quantities, 2 Inputs

Programmable Multifunctional Transmitter for currents, voltages, temperature sensors, remote transducers or potentiometers

The V604s is for top-hat rail mounting with the following main features:

  • Measurement of DC-voltage, DC-current, temperature (RTD or TC), resistance
  • Sensor connection without external jumpers
  • 2 inputs (e.g. for sensor redundance or differential measurement)
  • 2 outputs (U and / or I)
  • 2 inputs can be combine with each other and can be related to the 2 outputs. With this calculations and sensor monitoring is possible (e.g. for a predictive maintenance of the sensors)
  • System capability: communication through RS485 Modbus-interface
  • Programmable relais e.g. for limi valves and alarms
  • AC/DC-wide range power supply unit
  • Pluggable top quality value screw terminals

All adjustments of the device can be adapted to the measuring task by means of a PC-software. The software can also be used for visualization, commissioning and for service.

Istruzioni per l’uso
Certificato CE
Scheda tecnica

1 SINEAX V604s

1 Safety Instructions 168 501

1 Software and Docu-CD 156 027
