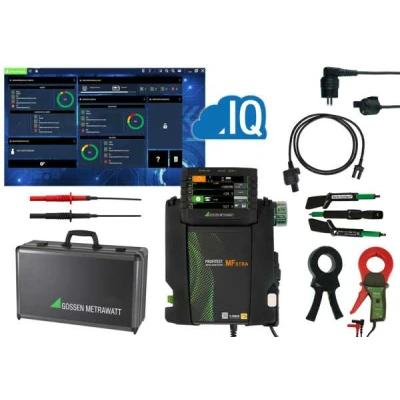

PROFiTEST MF XTRA Profi Set for Testing the Effectiveness of Protective Measures at Stationary Electrical Systems After Completion, Repair, Expansion or Periodic Testing, Especially for the Fulfillment of DGUV Regulation 3

PROFiTEST MF XTRA Profi Set with PROFiTEST MF XTRA and defined accessories for testing the effectiveness of protective measures at stationary electrical systems in accordance with testing standards IEC 60364-6 (DIN VDE 0100-600) and EN 50110-1 (DIN VDE 0105-100). Measuring category: 300 V CAT IV / 600 V CAT III.

  • Context-sensitive color graphic display
  • Measuring and test sequence – easy setup of the system structure / measuring and storage / report generation
  • Preconfigured and user programmable test sequences for testing electric systems quickly
  • Storage concept for up to 50,000 data records
  • Testing of all up-to-date AC/DC sensitive RCDs, RDC-DDs and RCMBs
  • User safety thanks to PE detection when using finger contact
  • Forward-looking connectivity

  • Defined accessories for special measuring tasks
  • Broad-range measuring device for all alternating and 3-phase electrical systems with voltages from 65 to 500 V and frequencies of 15.4 to 420 Hz
  • Loop and line impedance measurement with DC bias magnetization
  • Measurement of insulation resistance using nominal voltage, with variable or rising test voltage
  • Low-resistance measurement with automatic polarity reversal
  • Testing of residual current devices and special RCCBs (selective S, SRCDs, PRCDs, Schukomat, Sidos, types G/R, AC, A, E-EV, F, F-EV, B, B+ and B-MI)
  • Testing of RDC-DDs per IEC 62955 and RCMBs per IEC 62752
  • Testing of RCCBs in IT systems
  • Testing of insulation monitoring devices (IMDs)
  • Testing of residual current monitoring devices (RCMs)
  • Measurement of earth resistance (mains/battery operation)
  • Leakage current measurement with PRO-AB adapter
  • Standards-compliant testing of charging stations per IEC 61851-1 in combination with a suitable test adapter
  • Testing of type S and K PRCDs with the PROFITEST PRCD
  • Residual voltage measurement per EN 60204-1
  • Automatic test sequence function
  • USB port
  • Push-print function – transmission of the measured value after measurement

  • Defined accessories for special measuring tasks
  • Intuitive user prompting with help function which provides support for pending measuring tasks
  • All decisive measuring functions can be quickly selected with the rotary switch
  • Especially well-suited for mobile use, even at construction sites and in industrial environments, thanks to the compact, impact-resistant housing with integrated rubber protector
  • Also suitable for international use thanks to extensive setting options for language etc.
  • 4-wire measuring method – no compensation of the measurement cables is required

Testing of the effectiveness of protective measures at stationary electrical systems and machines per IEC 60364-6 (DIN VDE 0100-600), EN 50110-1 (DIN VDE 0105-100), EN 60204-1 (VDE 0113-1) and other country-specific standards. Testing of electric charging points per EN 61851-1 (DIN VDE 0122-1), for example: general electrical installations with alternating or 3-phase current, lightning protection systems, power utilities, industrial operations, machinery manufacturers, public facilities, public authorities, universities and service providers in accordance with DGUV regulation 3 etc.

Istruzioni per l’uso
Certificato CE
Scheda tecnica
Guida di riferimento rapido
Opuscolo, volantino, brochure, …
Opuscolo, volantino, brochure, …
The latest firmware is now available for downloading in our download area “myGMC”.
License and Open Source Software Information

1 Earthing contact plug insert (country-specific)
1 Two-pole measuring adapter
1 Cable for expansion into a 3-pole adapter (PRO-A3-II)
2 Alligator clips 1 Neck strap
1 Set of rechargeable batteries (Z502H)
1 Charger (Z502R)
1 Condensed operating instructions
1 Supplementary sheet with safety information
1 DAkkS calibration certificate
1 USB interface cable
1 VARIO plug adapter set
1 Set of probes
1 E-Clip 2 generator clamp
1 Z3512A clamp meter
1 PRO-RE-2 measuring adapter
1 Profi-case
1 IZYTRONIQ Business Professional software
1 IZYTRONIQ coupon for 12-month cloud subscription
