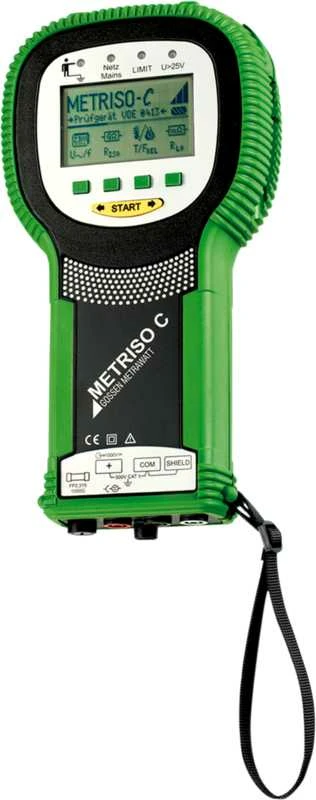

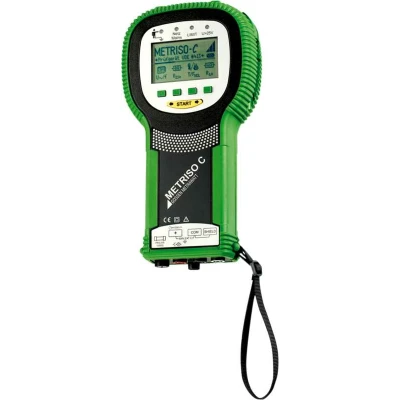

Insulation and Resistance Measuring Instrument, 1000 V, Digital

Battery Operated Insulation Resistance Tester in Accordance with DIN VDE 0413, Parts 2 and 4, for Measurement in Systems with Nominal Voltages of up to 1000 V

Insulation resistance measurement

  • Measuring range 0 … 100 G Ω
  • Variable test voltage: adjustable from 50 to 1000 V

Low-resistance measurement

  • Measuring range 0 … 100 Ω

Temperature and humidity measurement

  • via IrDa interface with additional adapter

Contact current measurement

  • Measuring range 0 … 10 mA

There are also versions for the countries:

England (GB), Sweden, Italy, Tschech Rep., Netherlands, Spain, France, Portugal, Norway, Finland, Poland and Denmark.

1 METRISO C test instrument
1 carrying strap
1 set of batteries
1 pair of measurement cables
1 proprietary calibration certificate
1 operating instructions
