High-end TRMS system multimeter with digital display (60,000 digits), measuring ranges optimized for measuring transducers and IR interface

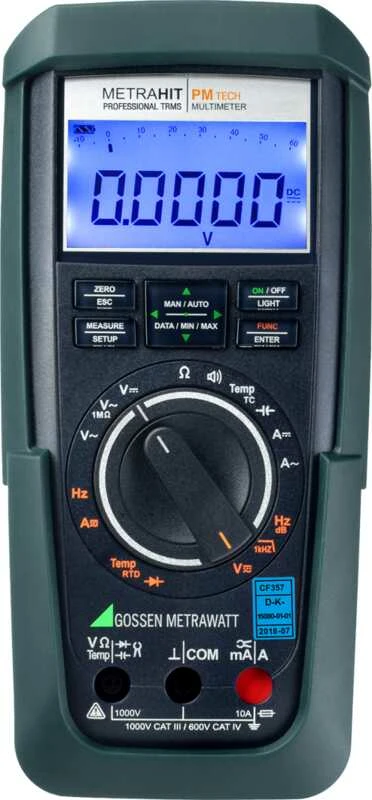

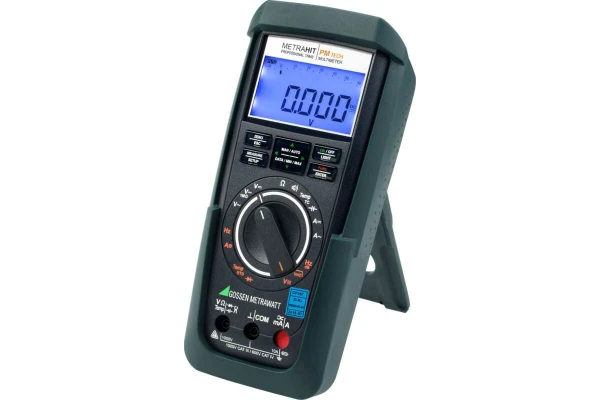

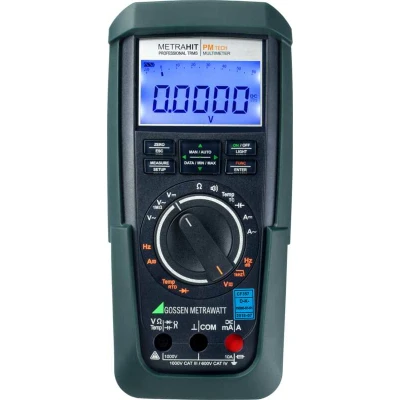

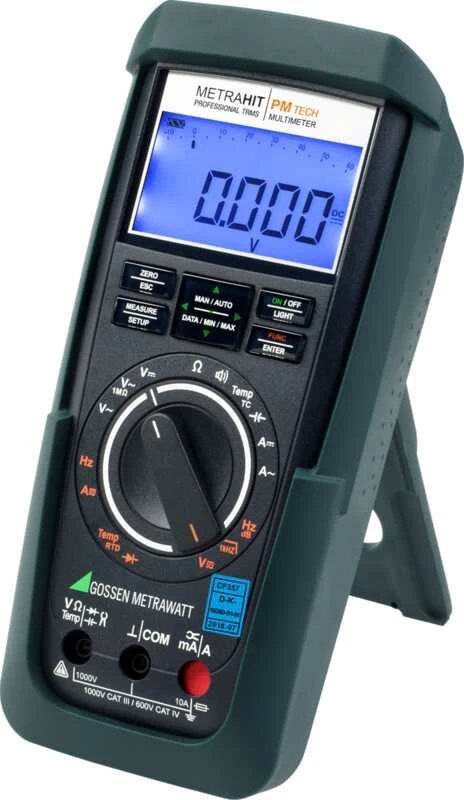

The METRAHIT PM TECH is a universal multimeter from the METRAHIT Professional Multimeter series.

The high-end TRMS multimeters of the METRAHIT PM series: The METRAHIT PM TECH, XTRA and PRIME are extremely rugged, reliable digital multimeters which have been developed for professional use. They feature an appealing design with housings made of impact-resistant plastic and state-of-the-art technology.

  • TRMS AC, AC+DC measurement up to 20 kHz for voltage and current
  • Direct current measurement with increased accuracy of 0.1% for measurements at 4 to 20 mA measuring transducers
  • Broad range capacitance measurement


  • Universal use in all fields of electrical engineering!
  • TRMS measurement up to 20 kHz with digital display (60,000 digits) and analog scale
  • Measurement of voltage and current, DC, AC and AC+DC, dB, resistance, capacitance, temperature, frequency, continuity/diodes
  • Clip function for current measurement with transformers and sensors
  • Automatic measuring range selection and measured value storage
  • Safety for the user and the instrument in measuring categories CAT IV up to 600 V and CAT III up to 1000 V.

The multimeter is suitable for universal use in electrical engineering, electrical installation, laboratory applications, telecommunication, training etc.

Thanks to its current measuring ranges with increased accuracy, it’s especially well suited for measurements at measuring transducers in the process industry.

The instrument can be used in the field and is equipped with an internal, mains-independent power supply.

Istruzioni per l’uso
Scheda tecnica
Guida di riferimento rapido
Opuscolo, volantino, brochure, …

1 Multimeter
1 Pair of safety measurement cables (1.5 m) with 4 mm test tips, 1000 V CAT III, 600 V CAT IV (KS17-2)
1 HC20 hard case
2 Batteries, 1.5 V, type AA
1 Condensed operating instructions, English/German
1 CD ROM with operating instructions in German and English
1 DAkkS calibration certificate 1 Rubber holster
