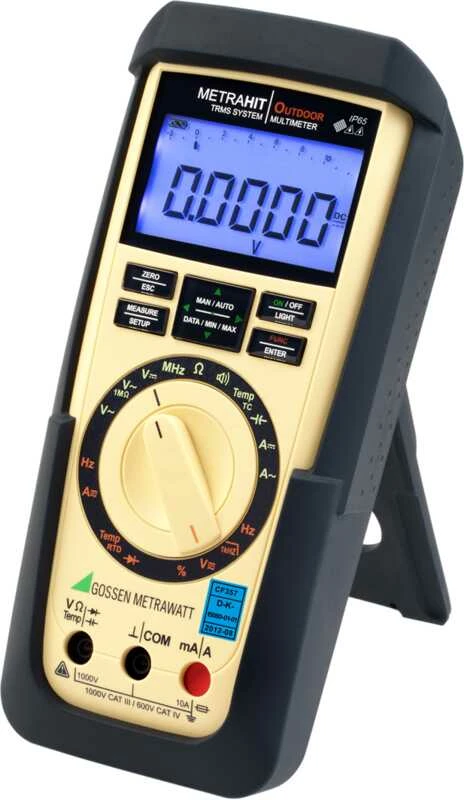

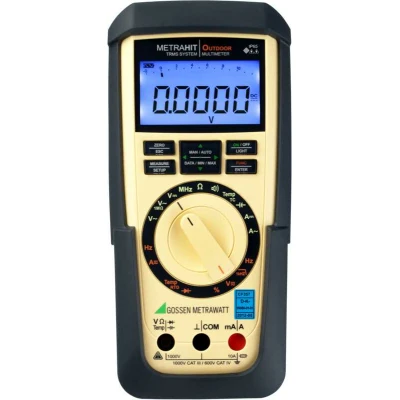

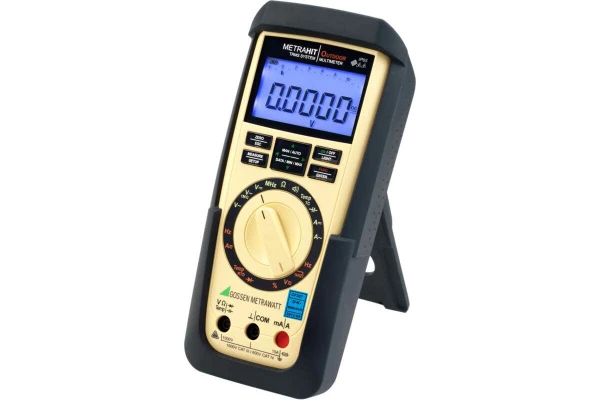

TRMS SYSTEM Multimeter, Extremely Rugged, Impact-Resistant, Water-Proof and Dust-Proof, and is Resistant to Extreme Temperatures

The METRAHIT AM XTRA is the top-of-the-line instrument of the METRAHIT Advanced Multimeter series.

The multimeters of the METRAHIT AM series, including METRAHIT AM BASE, PRO, TECH and XTRA, are extremely rugged, reliable digital multimeters with housings made of impact-resistant plastic. They feature an appealing design and are equipped with state-of-the-art technology.

  • Misura TRMS AC, AC+DC fino a 20 kHz per tensione e corrente
  • Data logger e interfaccia IR per PC
  • Presa per il connettore dell’alimentatore

  • Resolution: ± 12,000 digits, 4½-place
  • 3 connector jacks with patented automatic blocking sockets (ABS)
  • TRMS AC and AC / DC function
  • Voltage measurement with a basic accuracy­ of ±0.05% (V DC)
  • Automatic and manual measuring range selection
  • Automatic storage of measured values: DATA / MIN / MAX
  • Large, light-blue illuminated display with extra-large characters (15 mm) and an analog bar graph for dynamic processes
  • Separate battery and fuse compartments
  • IP 65 protection against dust and water
  • Measuring categories: 1000 V CAT III and 600 V CAT IV
  • Made in Germany
  • DAkkS calibration certificate included

23 multimeter functions

  • Voltage AC TRMS, voltage AC+DC TRMS, voltage DC, frequency (Hz, MHz), duty cycle, resistance, diode test, continuity test, capacitance, current AC TRMS, current AC+DC TRMS, temperature with Pt 100/1000 sensors and type K thermocouples
  • Auto-range current measurement from 100 µA (resolution: 10 nA) to10 A (16 A) via a single connector jack and a single fuse
  • Additional filter function and voltage measurement with reduced input­ impedance for limiting interference, e.g. for measurements at frequency­ converters
  • 540 kB data memory (15,400 measured values) for long-term measurements with data logger function
  • Power pack connector socket for operation without batteries
  • Infrared interface for communication with a PC
  • Rubber holster safeguards against shocks and impacts

  • Impiego universale in tutti i campi dell’elettrotecnica!
  • Misura TRMS fino a 20 kHz con display digitale (12000 cifre) e scala analogica
  • Misura di tensione e corrente, DC, AC e AC/DC, resistenza, temperatura, frequenza, duty cycle, capacità, continuità/diodi
  • Selezione automatica del campo di misura e memorizzazione del valore misurato
  • Sicurezza per l’utente e lo strumento nelle categorie di misura CAT IV fino a 600 V e CAT III fino a 1000 V.

Il multimetro è adatto all’uso universale in elettrotecnica, installazioni elettriche, applicazioni di laboratorio, telecomunicazioni, formazione, ecc.

Lo strumento può essere utilizzato sul campo ed è dotato di un alimentatore interno indipendente dalla rete.

La presa supplementare per l’alimentatore è ideale per le misure a lungo termine e per l’uso in laboratorio.

Istruzioni per l’uso
Certificato CE
Scheda tecnica
Guida di riferimento rapido
Opuscolo, volantino, brochure, …

Delivery Content:

  • 1 multimeter
  • 1 pair of safety measurement cables type KS17-2
  • 2 batteries, 1.5 V, type AA
  • 1 condensed operating instructions, English/German
  • 1 DAkkS calibration certificate
  • 1 protective rubber cover (METRAHIT AM XTRA & OUTDOOR only)
