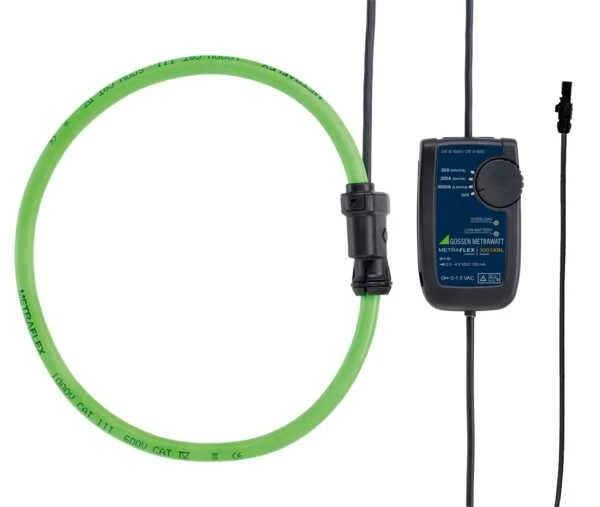

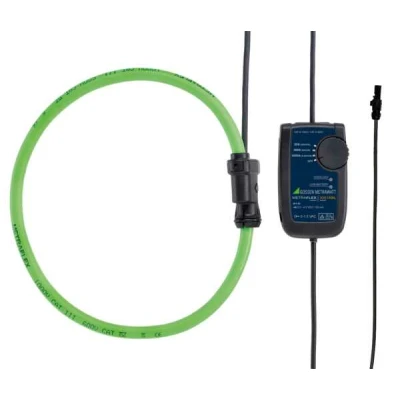

METRAFLEX 3001 XBL/48
Flexible Current Sensor 30/300/3000 AAC, Loop Length 61… 122 cm
The flexible current sensors are used in combination with MAVOWATT or any measuring instruments of up to 1,5 V AC measuring input and Hypertronics plug.
Broad range of applications, 3 measuring ranges 30/300/3000 A AC
and a large bandwidth of 10 Hz … 20 kHz for harmonic analysis
Accurate measurement, even with low current values, thanks to large dynamic range and high sensor sensitivity
Minimal influence due to conductor position or disturbance fields
Easy to use in tight spaces thanks to a small sensor cross-section of
9.9 mm and narrow end-cap 13.6 mm – loop circumference 610 mm
Reliable handling even with safety gloves – the sensor can be opened and the measuring range can be selected with one-hand operation
Extremely long battery service life of up to 2000 hours
External power supply for long-term measurement with the MAVOWATT 50
Connector cable included
Current sensor provides IP 65 protection, measuring amplifier with IP 40
High levels of safety for the operator, measuring category 1000 V CAT III, 600 V CAT IV, and unlimited overload capacity
MAVOWATT 230, 240 and MAVOWATT 270, 270-400 supply the sensors itself.
The flexible current transformers can be placed around one or several conductors of any type and design (insulated cable, busbars, pipes).
Internal batteries allow for an independent operation of the measuring amplifier.
- Wide range of applications, 3 measuring ranges 30 A/300 A/3000 A AC and large bandwidth 10 Hz … 10 kHz for harmonic analysis
- Precise measurements even with low currents, due to wide dynamic range and high sensor sensitivity
- Low conductor position influence and minimum stray field influence
- Easy to operate in restricted space thanks to small sensor cross-section of 9.9 mm and slim end cap of 13.6 mm
- Safe handling even with protection gloves; opening of sensor and measuring range setting in one-hand operation
- Extremely long battery life of up to 2,000 hours
- External power supply for long-term measurements (optional)
- MAVOWATT 230, 240, 270, 270-400: Sensor supply via MAVOWATT, no further accessories necessary
- Current sensor with protection type IP65, measuring amplifier with IP40
- High level of safety for the user, measurement category 1000 V@CATIII, 600 V@CATIV and unlimited overload capacity
Feature Specifications
Measuring ranges 30 A 300 A 3000 A
Output signal (AC) 50 mV/A 5 mV/A 0,5 mV/A
Residual current / ripple 8 mV eff. 2 mV eff. 2 mV eff.
Measuring uncertainty (45… 65 Hz) ±1% ±0,1 A ±1% ±0,1 A ±1% ±1 A
Overload capacity unlimited
Linearity ±0,2% of rdg.
Bandwidth 10 Hz bis 10 kHz (-1 dB)
Phase angle error < ±1° (45… 65 Hz)
Min. load impedance 100 kO for indicated accuracy
Type Loop length max. Article No.
METRAFLEX 3001 XBL 61 cm Z207o
91 cm Z207R
122 cm Z207S
