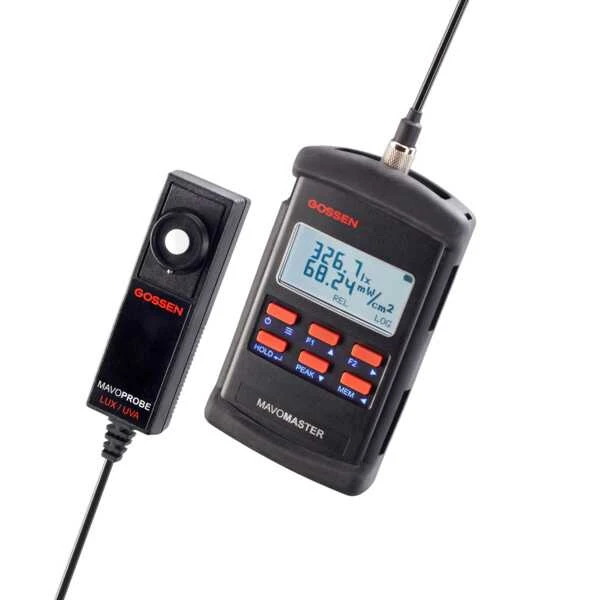

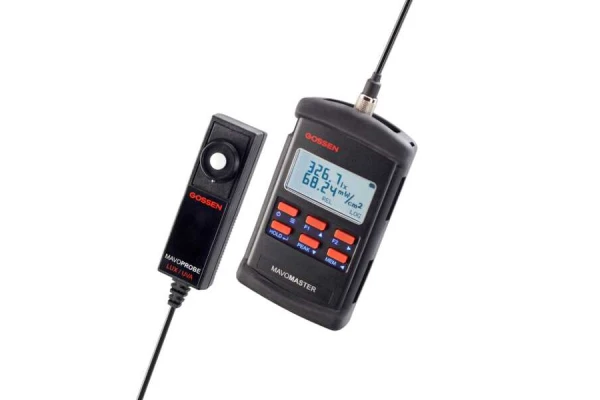

MAVOLUX LUX / UVA – KIT
Illuminance class B DIN 5032-7 and irradiance UV-A 365 nm meter
The combination of MAVOMASTER, MAVOPROBE LUX / UVA forms a high-precision combination measuring device for non-destructive testing and is classified for illuminance according to class B DIN 5032-7, DIN EN 13032-1 appendix B and ISO/CIE 19476 and the measurement of UV-A irradiance corresponds to the requirements of DIN EN ISO 3059 and ASTM E2297 for measuring instruments for fluorescent penetrant and magnetic particle testing.
- Combination measuring device for illuminance and irradiance UV-A 365 nm
- High-resolution measuring range for emergency lighting
- Simple functional expansion with optional luminance attachment
- Grid measurement for the assessment of workplaces and interior lighting
- Extensive measuring functions, relative, integral, deviation, ratio measurement
- Recording of minimum value, maximum value and average value calculation
- Data logger with adjustable Log interval
- Large 4 GB measured value memory, readable via USB, like an external drive on the PC
- Continuous operation via USB with power bank, plug-in power supply or on the PC
- EXCEL macros for logging and data logging
- Measuring device and calibration from a single source!
Illuminance
- Measuring range: 0.001 lx … 199,990 lx
- Accuracy: +/- 2.5% +/- 1 digit
Luminance with optional luminance attachment M516G
- Measuring range: 0.01 cd/m² … 1,999,900 cd/m²
- Accuracy: +/- 3.5% +/- 1 digit (paired) or +/- 5% +/- 1 digit (not assigned)
Irradiance UV-A 365 nm
- Measuring range: 0.01 µW/cm² … 199 990 µW/cm²
- Accuracy: +/- 10% +/- 1 digit
Miscellaneous
- Measuring rate: 2 measurements / second
- Probe connection cable: 1.5 m, pluggable
- Supply: 1 × 1.5 V Mignon type AA, continuous operation via USB interface
- Interface: USB 2.0, Micro-B socket
- Memory: 4 GB
1 x MAVOMASTER
1 x MAVOPROBE LUX / UVA
1 x rubber protective cover
1 x 1.5V Mignon alkaline manganese battery (IEC LR 6)
1 x USB 2.0 cable plug A to plug Micro-B, length 1.0 m
1 x EXCEL reporting / datalogger (download)

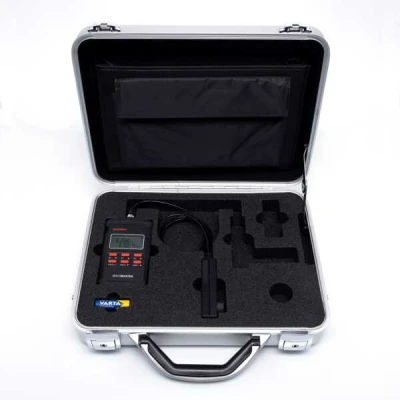

1 x aluminum transport case
1 x operating instructions D/GB
1 x final test certificate
