SU1604
Modular summator for recording digital and analog variables.

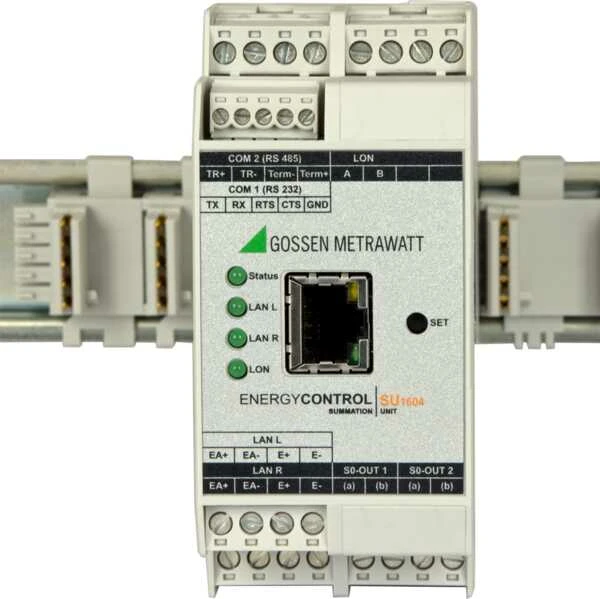

Base module for summator SU1604 – The summator combines proven functions with the latest technology and a flexible, modular housing concept.
The summator stations of the Energy Control System collect meter data via various interfaces and evaluate them via internal calculation channels. The work or consumption values determined in this way are summed up synchronously with the measuring interval of the energy supplier over defined periods and a programmable interval and stored with the associated maxima. Using this self-sufficient energy database, all electrical and non-electrical energies and consumptions can be recorded, visualized, optimized and billed on a cost center basis.
- Energy data logger as a central device for recording digital and analog variables.
- Modular concept consisting of base station (SU1604), power supply unit (SU1614), S0 input modules (SU1624) and analog input modules (SU1634).
- Up to 64 inputs can be used physically or as calculation channels to determine energy, power and costs.
- Energy Control Language (ECL) for programming evaluations, monitoring and optimization.
- High energy data quality at minute intervals for precise analyses and load profiles in conjunction with METRAVIEW thanks to automatic re-reading in the event of a communication failure.
- High performance with minute-by-minute readout through prioritization and use of the ECL via Ethernet (TCP/IP).
- ECL via Ethernet (TCP/IP) enables the summator to be used deep in the field.
- Parallel access via Ethernet for trouble-free reparameterization during operation.
The SU1604 summator station expands the Energy Control System with a modular data logger system.
The summator can be modularly equipped with up to 64 galvanically isolated S0 counter inputs for processing pulse-shaped (S0) input signals. The SU1624 pulse input module is used for this purpose.
Up to 64 LON devices can be connected to the SU1604 summator via the easy to wire, reverse polarity protected and galvanically isolated LON interface.
For easy evaluation, all relevant energy or consumption data is recorded over defined periods and a programmable interval and stored as load profiles with the associated maxima.
In addition to the interval measurement data list, up to four recorders with max. 64 channels and different time bases starting from one second can be defined. Any data (analog values, power values, consumption values in the interval and also total counter readings) can be selected per channel and stored as 32 bit “float” values (default) or also as 64 bit “double” values.
The Ethernet interface allows remote access to device data via a TCP/IP network. Up to 4 TCP/IP sockets with ECL access (corresponding to 4 COM servers used so far) can be used simultaneously. Also an ECS-LAN networking can be realized via two of these sockets (ECS-LAN-via-COM).
- New modular concept
- Software upward compatible with U1600/1/2/3 summators
- 64 calculation channels to determine energy, power and costs. Physical inputs (up to 64) or LON meters can be assigned as required
- Energy Control Language (ECL) for programming evaluations, monitoring and optimizations
- LON interface for 64 LON devices
- 1 RS232 interface (max. 921 kBaud)
- 1 RS485 interface (max. 921 kBaud, half-duplex)
- 2 ECS-LAN interfaces (max. 375 kBaud)
- Ethernet interface (100 MBit/s) with ECL access via TCP/IP (4 sockets)
- 1x SU1604 base module
- 1x hinged ferrite
- 2x mounting rail connector ME 22.5 T-Bus
- Short manual (German and English)
