Programmable multifunctional transmitter with very fast setting times for direct currents, direct voltages, temperature sensors, teletransmitters or potentiometers

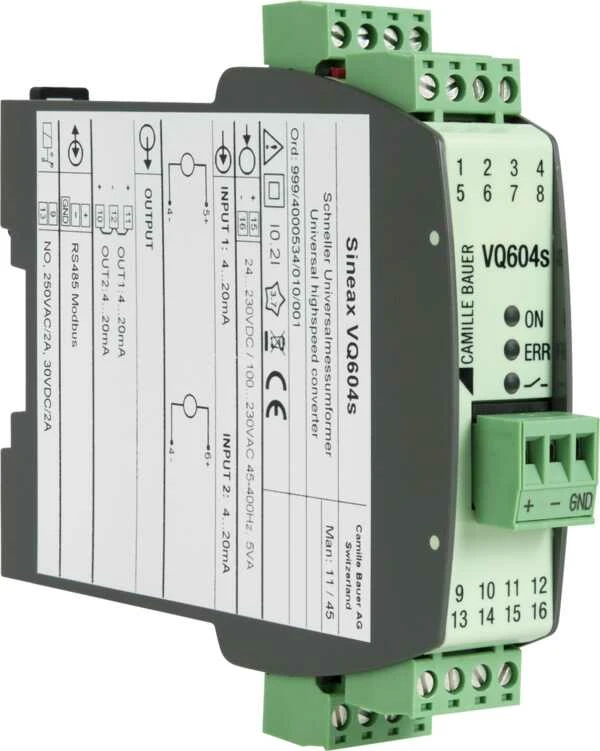

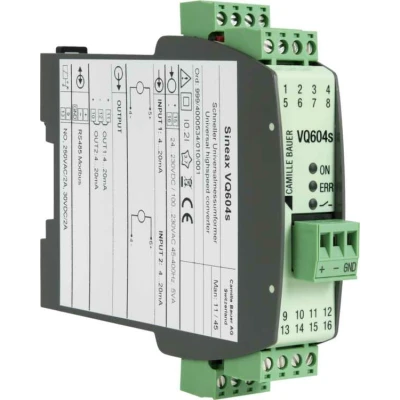

The SINEAX VQ604s is a multifunctional transmitter for top-hat rail assembly with the following main characteristics:

  • Fast measurement of DC-voltage, DC-current, temperature (RTD, TC) and resistance
  • Setting time up to 10 ms
  • Sensor connection without any external jumpers
  • 2 inputs (e.g. for sensor redundancy or difference formation)
  • 2 outputs (I)
  • 2 inputs can be linked with each other and allocated to the 2 outputs which enables calculations and sensor monitoring (e.g. prognostic maintenance of sensors).
  • System capability: Communication via Modbus interface
  • Freely programmable relay, e.g. for limit or alarm signalling
  • AC/DC wide-range power supply unit
  • Pluggable high-quality screw terminals
