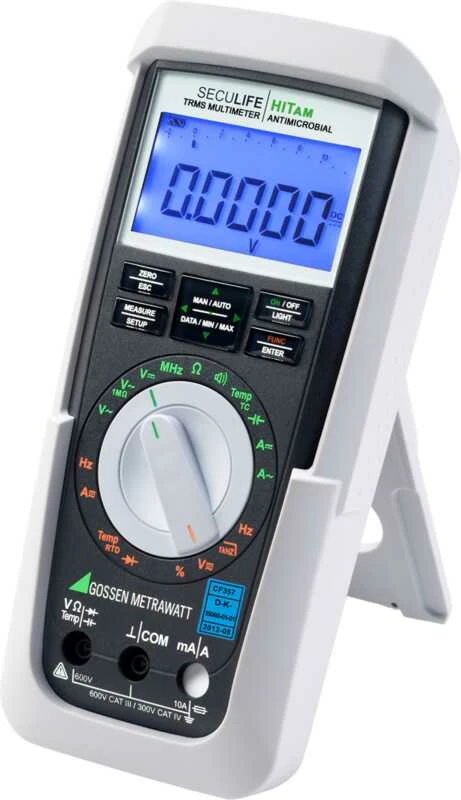

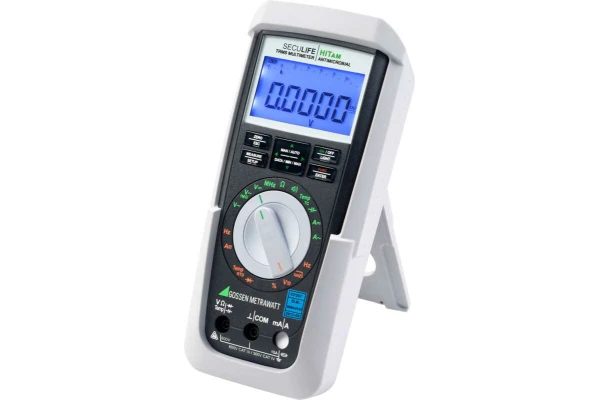

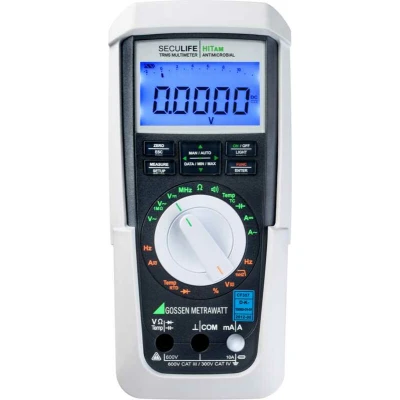

System Multimeter for the Field of Medical Technology, antimicrobial

The measurement and testing of measuring equipment in the field of medical technology necessitates absolute reliability and a broad range of applications. The SECULIFE HIT AM has been custom tailored to fulfill these demands: It’s the ideal device for testing, training and production in the field of medical technology.

  • 23 multimeter functions
  • Voltage measurement
  • Auto-ranging current measurement from 100μA (resolution: 10nA) to 10A (16A)
  • Capacitance and resistance measurement, diode and continuity testing
  • Measuring categories: 600V CAT III and 300V CAT IV
  • 1 kHz low-pass filter
  • TRMS AC and AC+DC, 20 kHz bandwidth
  • Data storage for more than 15,000 measured values
  • Housing, cables and protective rubber holster with atimicrobial properties

  • Interfaces:
    Bidirectional infrared interface for communication with the PC (38.4 kBd)
    Optionally available IR-USB adapter
  • Power supply: battery or mains operation via optional broad range variable power pack (95 to 250 V AC)
  • IP 65 protection against dust and water
  • Automatic blocking sockets (ABS)
  • Separate battery and fuse compartments
  • Made in Germany
  • Furnished with DAkkS calibration certificate
