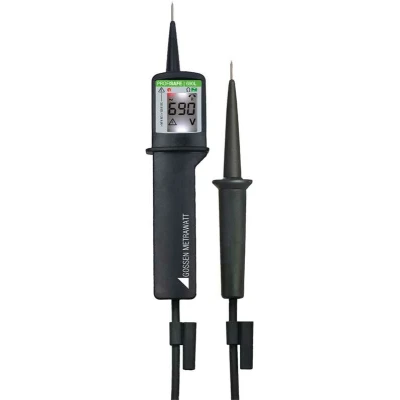

ProfiSafe 690L

SKU: M630JCategoria: Etichette: , , , ,

Voltage, Phase, and Continuity Tester plus Phase Sequence Indicator for up to 690 V AC/DC per DIN EN 61243-3:2011 / VDE 0682-401

Handy instrument for indicating the results of the above listed measuring options, Rugged IP65 voltage tester

  • Display 1 red LED for voltage, >= 50 VAC/ 120 VDC,1 green LED for continuity, 1 LCD with background illumination
  • Measuring range continuously, DC: 12 … 690 V (±3 % +4 D), AC: 12 … 690 V (±3 % +4 D)
  • Input impedance approx. 167 kO AC / DC at 690V, 200 kO AC / DC at 50 V
  • Frequency range 0 … 500 Hz
  • Current crest value 4,2 mA at 690 V AC / DC
  • On-time 30 s at 690 V
  • Continuity test 0 … 1000 kΩ
  • Sampling rate 2/s

Certificato CE
Scheda tecnica

1 Voltage and continuity tester

1 Set of operating instructions
