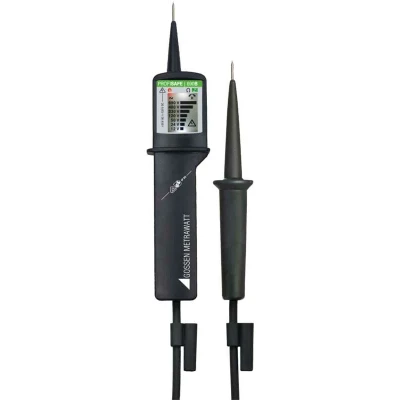

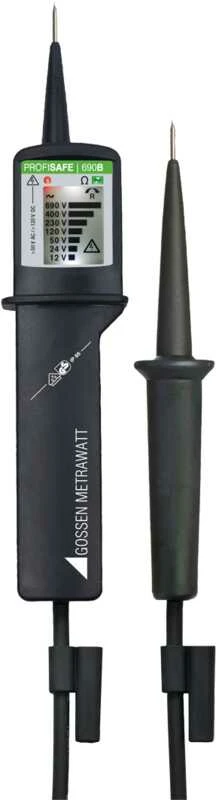

ProfiSafe 690B
Voltage, Phase, and Continuity Tester plus Phase Sequence Indicator for up to 690 V AC/DC per DIN EN 61243-3:2011 / VDE 0682-401
Handy instrument for indicating the results of the above listed measuring options, Rugged IP65 voltage tester
- Voltage test
- Phase test
- Polarity test
- Phase sequence indicator
- Continuity test
- Measuring category: CAT IV 600 V / CAT III 690 V
- VDE-GS tested
- IP65 protection – safe use even under moist conditions
- Test voltage: 6 kV
- Surge strength: >8 kV (1,2 / 50 µs)
PROFISAFE 690B
Display 1 red LED for voltage, >= 50 VAC/ 120 VDC, 1 green LED for continuity, 1 LCD with background illumination
Measuring range 7-level bar graph, 12, 24, 50, 120, 230, 400, 690 V
Input impedance approx. 167 kO AC / DC at 690V, 200 kO AC / DC at 50 V
Frequency range 0 … 500 Hz
Current crest value 4,2 mA at 690 V AC / DC
On-time 30 s at 690 V
Continuity test 0 … 1000 kO
Sampling rate 2/s
1 Voltage and continuity tester
1 Set of operating instructions
