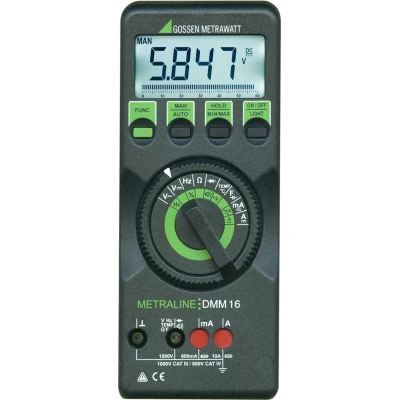

METRALINE DMM16

TRMS Digital Multimeter with Analog Bar Graph, Temperature Measurement and Calibration Interface

CE Protection IP40 DAkkS National Accreditation Body of Germany optional

  • Resolution: 6000 digits (3 6/7 place) and analog bar graph (60 points)
  • Basic accuracy: 0.5% VDC
  • Bandwidth, V AC TRMS: 2 kHz
  • Patented automatic blocking sockets (ABS)
  • Voltage: VDC 100 µ to 1000 V and VAC TRMS 100 µ to 1000 V
  • Current: IDC 10 µ to 10 A (16 A 30 sec.) and IAC TRMS 10 µ to 10 A (16 A 30 sec.)
  • Resistance: 100 mOhm to 40 MOhm
  • Temperature: -50.0 to +800.0° C, type K thermocouple
  • Frequency measurement: 0.1 Hz to 1 MHz
  • Duty cycle measurement: 2% to 98% (1 kHz)
  • RPM measurement: 60 RPM to 99.99 thousand RPM
  • Capacitance measurement: 10 pF to 400 µF
  • Continuity and diode testing: 3 V
  • Min-Max measured value storage and DATA hold
  • DAkkS calibration certificate – optional
  • Measuring category: 600 V CAT IV, 1000 V CAT III

Istruzioni per l’uso
Certificato CE
Scheda tecnica
Guida di riferimento rapido
Opuscolo, volantino, brochure, …
Informazioni tecniche
Informazioni tecniche

1 Digital-Multimeter

2 2 x 1.5 V AA size batteries

1 set of measurement cables KS17-2

1 Short-form operating instructions

Detailed operating instructions are available on our website www.gossenmetrawatt.com.
