Cable Multimeter for Measurements in Symmetrical Copper Cable Networks

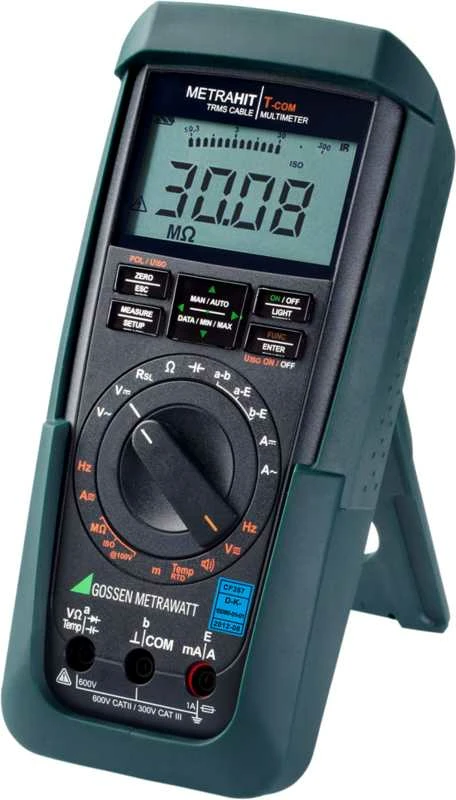

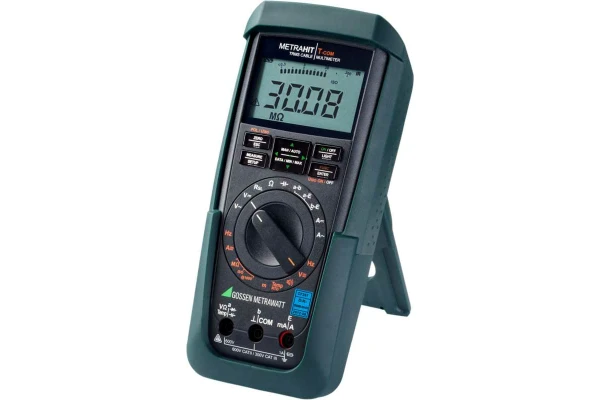

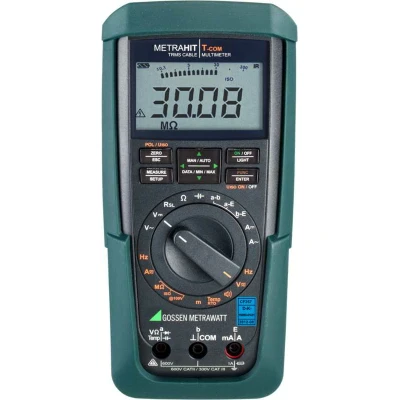

The METRAHIT T-COM cable multimeter is a rugged portable measuring instrument for use in the field.

  • Insulation resistance measurement (test voltage: 100 V) with simultaneous detection of interference voltage and polarity reversal for diode testing
  • Cable symmetry testing by means of rapid changeover switching
  • Multifunctional multimeter (V, O, F, Hz)
  • TRMS measurement, AC and AC+DC for current and voltage
  • Low-pass filter can be activated (200 Hz / -3 dB)
  • Direct current measurement, 100 nA to 1 A
  • Precision temperature indication in °C and °F for Pt100/Pt1000 sensors
  • 3¾ place display, 3100 digits, illumination can be activated, analog display: linear or logarithmic for insulation measurement
  • Acoustic signal for continuity testing, dangerous contact voltages, exceeded overload limits
  • Min-Max value storage
  • Data memory and internal clock, power pack adapter socket
  • Housing with IP 54 protection, dust and splash protected, protective rubber cover as standard feature
  • Bidirectional infrared interface for exchanging data with a PC
  • New housing design, separate battery and fuse compartments, intelligent key functions with SMD button
  • DAkkS calibration certificate as standard feature
  • Manufacturer’s guarantee: 3 years material and workmanship, 1 to 3 years for calibration (depending upon application)

Istruzioni per l’uso
Scheda tecnica
Guida di riferimento rapido
Opuscolo, volantino, brochure, …

Delivery content:

  • 1 cable multimeter
  • 1 protective rubber cover
  • 1 F836 ever-ready case
  • 1 KS21-T cable set consisting of:
    1 two-conductor measurement cable (yellow/blue), 2 meters long with test probes, 1 earth terminal cable (black), 2 meters long with test probe
  • 1 condensed operating instructions, English/German
  • 1 DAkkS calibration certificate with calibration report
  • 2 batteries, 1.5 V, type AA, installed
