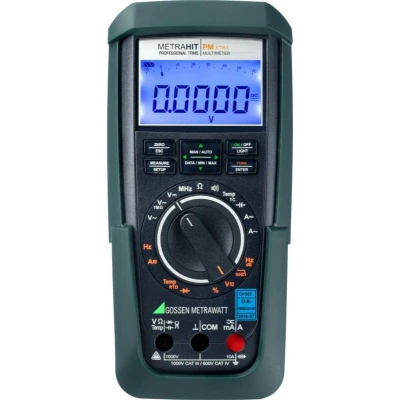

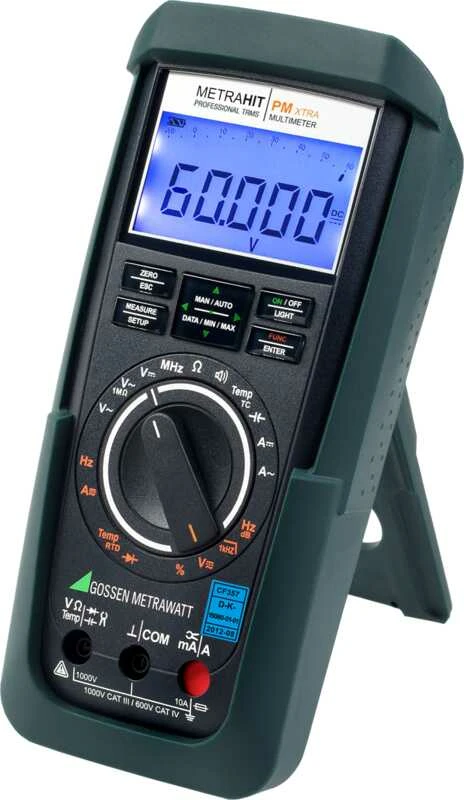

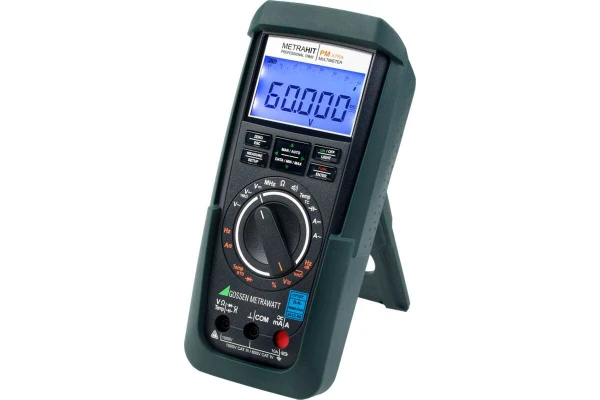

METRAHIT PM XTRA
High-end TRMS system multimeter with digital display (60,000 digits), data logger and IR interface
The METRAHIT PM XTRA is the top-of-the-line instrument of the METRAHIT Professional Multimeter series. ´
The high-end TRMS multimeters of the METRAHIT PM series: The METRAHIT PM TECH, XTRA and PRIME are extremely rugged, reliable digital multimeters which have been developed for professional use. They feature an appealing design with housings made of impact-resistant plastic and state-of-the-art technology.
- Integrated data logger for up to 61,600 measured values with IR interface for convenient PC connection and power pack socket for long-term measurements
- Additional filter function and voltage measurement with reduced input impedance for limiting interference, e.g. for measurements at frequency converters
- Versatile range of functions with TRMS measurement (AC, AC+DC) up to 100 kHz and basic accuracy of up to± 0.05% for demanding measuring tasks
- Highest levels of safety and durability thanks to patented automatic blocking sockets (ABS), impact resistant housing and measuring categories CAT IV 600 V and CAT III 1000 V
- Quality made in Germany including DAkkS calibration certificate and 3-year guarantee
The METRAHIT PM XTRA is the top-of-the-line instrument of the METRAHIT Professional Multimeter series. Ultramodern, high quality measuring instruments with unparalleled precision: 60,000 digits and 0.05% basic accuracy ensure extremely reliable results. Ultramodern technology provides for maximized safety. The diverse range of functions covers a broad spectrum of demanding measuring tasks. The innovative and ergonomic design makes it a pleasure to work with day after day.
- Including DAkkS calibration certificate
- 36-month guarantee for materials and workmanship
- 26 multimeter functions
- Resolution: ±60,000 digits, 4 6/7-place
- Basic accuracy: ±0.05% (VDC)
- Voltage ACTRMS, voltage AC+DC TRMS, voltage DC, level dB, relative value ΔREL, frequency (Hz, MHz), duty cycle, resistance, diode testing, continuity test, capacitance, current ACTRMS, current AC+DCTRMS, temperature with Pt 100/1000 sensors and type K thermocouples
- Auto-ranging current measurement from 10 nA to 10 A (16 A) via a single connector jack and a single fuse
- Clip function for TRMS current measurement with sensors and transformers
- Additional filter function and voltage measurement with reduced input impedance for limiting interference, e.g. for measurements at frequency converters
- Automatic and manual measuring range selection
- Zero adjustment
- Automatic storage of measured values: DATA / MIN / MAX
- 2 MB data memory for 61,600 measured values for long-term measurements with data logger function
- Infrared interface for communication with the PC
- Large, light-blue illuminated display with extra-large characters (15 mm) and an analog bar graph for dynamic processes
- Separate battery and fuse compartments
- Power pack connector socket for operation without batteries
- Patented automatic blocking sockets (ABS)
- Measuring category: 600 V CAT IV, 1000 V CAT III
- Rubber holster for protection against shocks and impacts
- The increased refresh-rate of the LCD reacts directly and without time delay to changed adjustments, e.g. of a potentiometer
- Universal use in all fields of electrical engineering!
- TRMS measurement up to 100 kHz with digital display (60,000 digits) and analog scale
- Measurement of voltage and current, DC, AC and AC/DC, dB, ΔREL, resistance, temperature, frequency, duty cycle, capacitance, continuity/diodes
- Automatic measuring range selection and measured value storage
- Safety for the user and the instrument in measuring categories CAT IV up to 600 V and CAT III up to 1000 V.
The multimeter is suitable for universal use in electrical engineering, electrical installation, laboratory applications, telecommunication, training etc.
The instrument can be used in the field and is equipped with an internal, mains-independent power supply. The additional power pack connector socket is ideal for long-term measurements and laboratory use.
1 Multimeter
1 Pair of safety measurement cables (1.5 m) with 4 mm test tips, 1000 V CAT III, 600 V CAT IV (KS17-2)
1 HC20 hard case
2 Batteries, 1.5 V, type AA
1 Condensed operating instructions, English/German
1 CD ROM with operating instructions in German and English
1 DAkkS calibration certificate
1 Rubber holster
