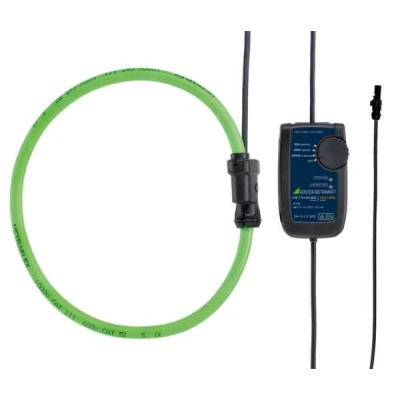

METRAFLEX 3001 XBL/24

Flexible Current Sensor 30/300/3000 AAC, Loop Length 61… 122 cm

The flexible current sensors are used in combination with MAVOWATT or any measuring instruments of up to 1,5 V AC measuring input and Hypertronics plug.

  • Wide range of applications, 3 measuring ranges 30 A/300 A/3000 A AC and large bandwidth 10 Hz … 10 kHz for harmonic analysis
  • Precise measurements even with low currents, due to wide dynamic range and high sensor sensitivity
  • Low conductor position influence and minimum stray field influence
  • Easy to operate in restricted space thanks to small sensor cross-section of 9.9 mm and slim end cap of 13.6 mm
  • Safe handling even with protection gloves; opening of sensor and measuring range setting in one-hand operation
  • Extremely long battery life of up to 2,000 hours
  • External power supply for long-term measurements (optional)
  • MAVOWATT 230, 240, 270, 270-400: Sensor supply via MAVOWATT, no further accessories necessary
  • Current sensor with protection type IP65, measuring amplifier with IP40
  • High level of safety for the user, measurement category 1000 V@CATIII, 600 V@CATIV and unlimited overload capacity

Feature Specifications

Measuring ranges 30 A 300 A 3000 A

Output signal (AC) 50 mV/A 5 mV/A 0,5 mV/A

Residual current / ripple 8 mV eff. 2 mV eff. 2 mV eff.

Measuring uncertainty (45… 65 Hz) ±1% ±0,1 A ±1% ±0,1 A ±1% ±1 A

Overload capacity unlimited

Linearity ±0,2% of rdg.

Bandwidth 10 Hz bis 10 kHz (-1 dB)

Phase angle error < ±1° (45… 65 Hz)

Min. load impedance 100 kO for indicated accuracy

Type Loop length max. Article No.

METRAFLEX 3001 XBL 61 cm Z207o

91 cm Z207R

122 cm Z207S
