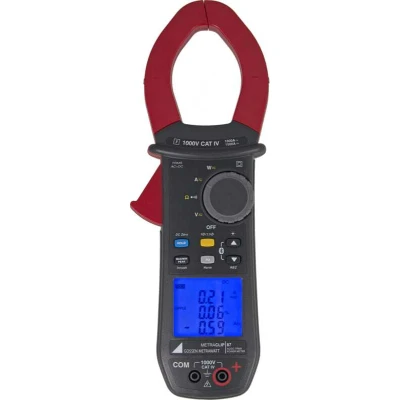

METRACLIP 87
Clamp Multimeter for Current, Voltage, Power, Harmonics and Frequency, 1000 V CAT IV
- Electrical safety per IEC 61010
- TRMS measurement
- Current measurement (AC and DC)
- Voltage measurement (AC and DC)
- Power measurement (W, VA, var, and PF)
- Measurement of crest factor (CF)
- Displacement factor (DPF)
- Residual ripple (RIPPLE)
- Total harmonic distortion (THD)
- Starting and overcurrent measurements (true inrush)
- Frequency measurement
- Automatic measuring range selection
- Display value storage (DATA HOLD)
- Data capture (MIN, MAX, PEAK)
- Continuity test, acoustic signal
- Resistance measurement
- Recording of measured values, wireless data transmission via Bluetooth
- LCD / digits backlit in blue
- Auto power-off
- Software for analyzing measured values, test report included
The METRAclip 87 clamp multimeter is suitable for the measurement of medium power values in the low-voltage range, and thus offers optimized safety for all types of systems and under any measuring conditions. In addition to applications in the areas of maintenance, troubleshooting and repair, the METRACLIP is also used for measurements in railway systems and low-voltage distribution networks.
- Clamp opening: 48 mm
- Current:
AC 99,99 / 999,9 A rms bei 10 Hz – 2 kHz
DC ±99,99 / ±999,9 / ±1500 A dc
AC+DC 99,99 / 999,9 A rms
99,99 / 999,9 / 1500 A peak - Inrush current: 10 ..1000 A rms / 1500 A peak
- Voltage:
AC 99,99 / 999,9 V rms bei 10 Hz – 3 kHz
DC ±99,99 / ±999,9 V dc
AC+DC 99,99 / 999,9 V rms
99,99 / 999,9 / 1500 V peak
- Frequency:
f (Uac) 5,0 Hz ..19,99 kHz
f (Iac) 5,0 Hz ..1999 Hz
- Power:
Active power: 9999 W / 99,99 / 999,9 / 1500 kW
Apparent power: 9999 VA / 99,99 / 999,9 / 1500 kVA
Reactive power: 9999 var / 99,99 / 999,9 / 1500 kvar
PF -1,00 ..+1,00
DPF 0,00 ..1,00
- Distortion:
Ripple 0,1 ..1000 %
CF 1,00 ..10,00
THDr / THDf 0,0 ..100 % / 0,0 ..1000 %
Harmonicals H01 ..H25
1 Clamp multimeter
2 Measurement cables (red and black, 1.6 m long), each with contact protected plug and plug-on test probe, CAT IV 1000 V/15 A
2 Alligator clips, red and black, CAT IV 1000 V/15 A
4 1.5 V batteries
1 Carrying pouch with holding strap
1 Test report
1 Safety data sheet
1 Condensed operating instructions in D/GB/F/E/I, printed
1 Operating instructions in D/GB/F/E/I, on mini CD ROM
1 PC program for measured value evaluation on mini CD ROM
