METRACLIP 85

SKU: M312JCategoria: Tag: , , , ,

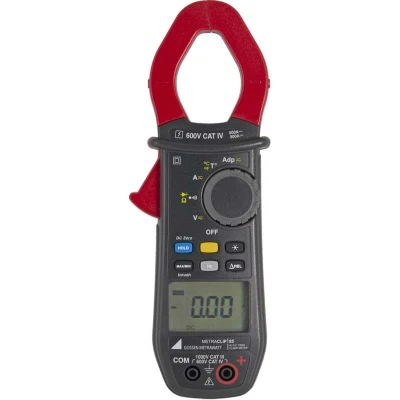

Clamp Multimeter for Current, Voltage and Frequency, 600 V CAT IV

The METRAclip 85 clamp multimeter is suitable for measurements in industrial and service provider applications, for troubleshooting electrical installations and for the repair of electric vehicles.

  • Electrical safety per IEC 61010
  • TRMS measurement
  • Current measurement (AC and DC)
  • Voltage measurement (AC and DC)
  • Starting and overcurrent measurement (true inrush)
  • Frequency measurement
  • Automatic measuring range selection
  • Relative and differential measurements
  • Display value storage (Data Hold)
  • Data logging (min., max., peak)
  • Continuity test, acoustic signal
  • Resistance measurement
  • Diode test
  • Temperature measurement, type K thermocouple
  • Connection of sensors and measuring transducers with voltage output
  • LCD / digits backlit in blue 6,000
  • Auto power-off
  • Test report incl.

  • Clamp opening: 34 mm
  • Current:
    AC 60,00 / 600,0 A rms bei 10 Hz – 3 kHz
    DC ±60,00 / ±600,0 / ±900 A dc
    AC+DC 60,00 / 600,0 A rms
    60,00 / 600,0 / 900 A peak
  • Inrush current: 6 ..600 A rms / 900 A peak
  • Voltage:
    AC 60,00 / 600,0 / 1000 V rms bei 10 Hz – 3 kHz
    DC ±60,00 / ±600,0 / ±1000 V dc
    AC+DC 60,00 / 600,0 / 1000 V rms
    60,00 / 600,0 / 1400 V peak
  • Frequency:
    f (Uac) 5,0 Hz ..19,99 kHz
    f (Iac) 5,0 Hz ..2999 Hz

Istruzioni per l’uso
Certificato CE
Scheda tecnica
Guida di riferimento rapido
Certificato

1 Clamp multimeter
2 Measurement cables (red and black, 1.6 m long), each with contact protected plug, CAT IV 1000 V/15 A
1 Type K thermocouple with banana plugs
1 9 V battery
1 Carrying pouch with holding strap
1 Test report
1 Safety data sheet
1 Condensed operating instructions in D/GB/F/E/I, printed
1 Operating instructions in D/GB/F/E/I, on mini CD ROM
