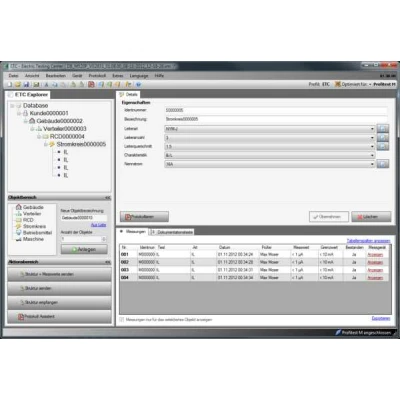

ETC

ETC report generating software for PROFITEST, SECUTEST, MINITEST, SECULIFE and METRISO

ETC offers a wide variety of support options for data acquisition and management, for the creation of test reports, and for controlling test sequences.

Scope of functions for:

SECUTEST Base(10), Pro (new), SECULIFE ST BASE up to version 1.8.3

SECUTESTSII+, S2N+.., SIII, SIII+, PSI, SI, SI+, SECULIFE ST

  • The software copies current test results.
  • The software copies test results from internal memory or from the (P) SI module (not required for series 4).
  • Report data can be supplemented.
  • A condensed * test report can be saved as a PDF file.
  • Condensed * data export is possible to Excel, CSV and XML formats.
  • All data from the test report are saved to an XML file (filename.etc).

*Condensed data are selected such that a test report is generated with only one page if possible.

PROFITEST MBASE, MTECH, MPRO, MXTRA, INTRO
(MBASE + MTECH < V02.21.00), (MBASE+, MTECH+, MPRO + MXTRA < V01.16.00)

  • The software acquires all important data for reports in accordance with DIN VDE 0100, part 600.
  • Test reports (ZVEH) can be generated automatically, report templates for lightning protection per DIN EN 62305-3 and foundation earth electrodes per DIN 18014
  • Distribution structures with electrical circuit and RCD data can be individually defined.
  • Created structures can be saved to memory and loaded to the test instrument as required.
  • The test instrument and the PC can exchange data bidirectionally via USB.
  • Data can be exported to Excel, CSV and XML formats.

PROFITEST 204 / METRAMACHINE 204 / 439

  • This software makes it possible to receive and transmit machine data with measured values
  • and allows for subsequent report generation per DIN EN 60204-1 (VDE 0113-1).
  • Created structures can be saved to memory and their machine data can be loaded to the test instrument.
  • The test instrument and the PC can exchange data bidirectionally via a USB – RS 232 adapter, or via RS 232.
  • Data can be exported to Excel, CSV and XML formats.

MINITEST Pro / Master and SECULIFE SR

  • The software copies measured values from the test instruments.
  • Report data can be supplemented.
  • Limit values can be set.
  • Test reports can be saved as PDF files.
  • Data can be exported to Excel, CSV and XML formats.
  • Additional test sequences can be created for the SECULIFE SR and executed.

METRISO XTRA, G1000+, PRIME+, 5000D-PI

  • The software copies measured values from the test instruments.
  • Report data can be supplemented.
  • Limit values can be set.
  • Test reports can be saved as PDF files.
  • Data can be exported to Excel, CSV and XML formats.

SecuStore memory adapter for the SECUTEST range and the SECULIFE ST

  • The software copies test reports from the memory adapter and saves them automatically as PDF files.

Free download via the myGMC portal at https://www.gmc-instruments.de/en/services/mygmc/ (after registration)
