Apollo 600+ Elite Kit
Testing device for testing in accordance with EN50678/EN 50699 (DIN VDE 0701/DIN VDE 0702)

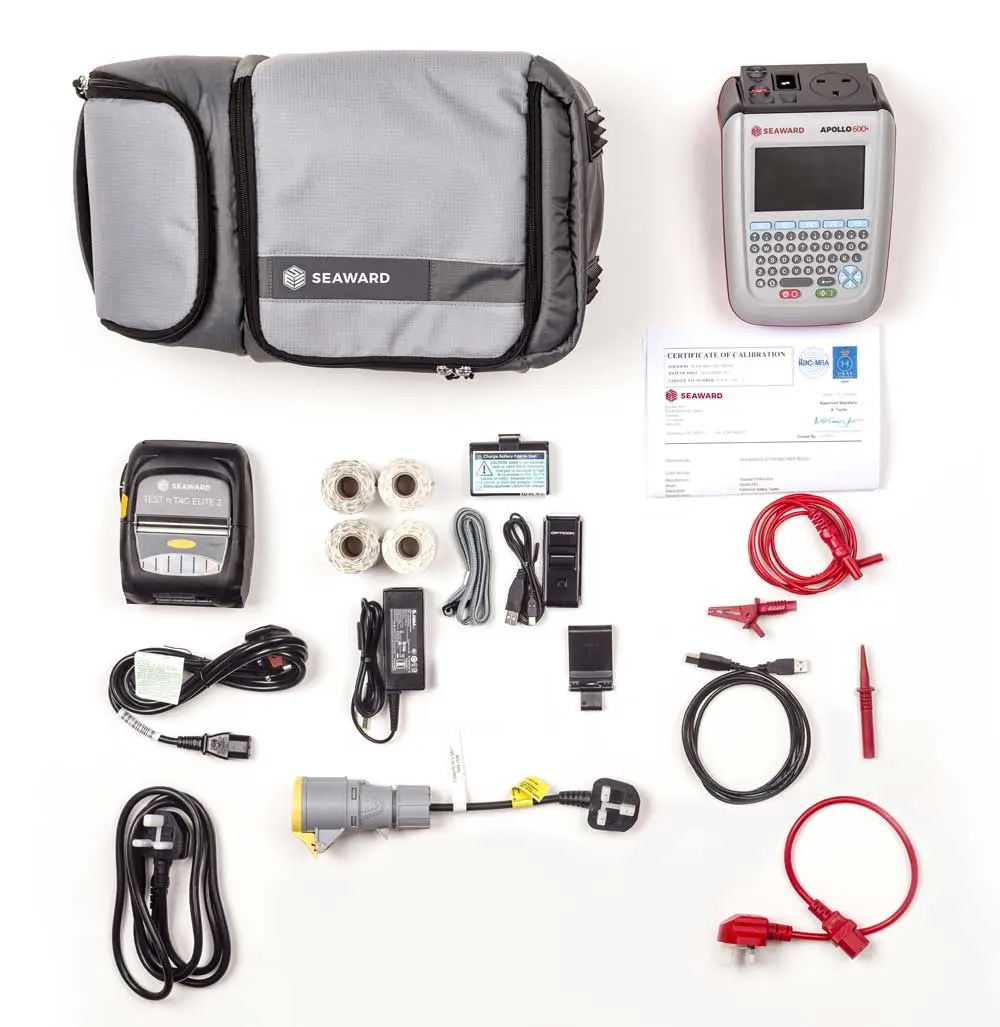

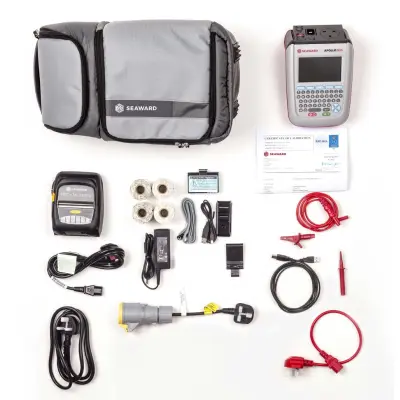

Seaward APOLLO 600+ complete set with Test n Tag Elite 2 printer, Bluetooth barcode scanner, labels, and carrying case – equipped with a protective contact plug, Schuko test socket, and German-language user menu for a comprehensive, mobile testing and documentation solution.
- Color graphic display
- Integrated rechargeable battery (for passive tests and backup)
- Built-in camera for documentation purposes
- Customizable sequences for device tests (up to 100 sequences can be saved)
- Bidirectional transmission of data via PATGuard3 Elite
- 2 probe tests possible for permanently installed devices (RPE and RISO)
- Integrated data memory for up to 50,000 objects
Apollo 600+ has an integrated camera for visual documentation purposes, a USB port for data transfer and a comprehensive range of test functions by means of user-configurable test sequences for testing portable equipment. Apollo 600+ offers storage space for up to 50,000 test objects.
- Protective conductor resistance measurement with 200 mA DC
- Insulation resistance measurement (500 V / 250 V)
- Leakage current measurements
- Direct method, residual current method, alternative method: protective conductor current, touch current
- Continuity testing of cold appliance / extension cables (1-phase)
- PRCD tripping time (30 mA 1xI∆N and 5xI∆N)
- Protection class I according to EN 61140
- Measurement category: 300 V CAT II
- 1 APOLLO 600+ 1 storage bag
- 2 measuring leads rt & sw 1.2 m long
- 2 measuring tips rt & sw
- 2 clip-on crocodile clips rt & sw
- 1 power cable 0.5 m sw
- 1 Apollo Check Box (for self-check)
- 1 USB cable, USB A to USB B
- 1 UKAS calibration certificate
- 1 Quick guide EN
- 1 PATGuard3 Elite 1-year license
- 1 Test n Tag Elite 2 printer
- 1 2D Bluetooth barcode scanner
- 2x Elite 25mm labels
- 2x Elite labels 75 mm
- 1 Apollo kit bag
