SINEAX DM5F
Stationary universal measuring device for high-voltage power networks for DIN rail mounting with particularly fast response time
The SINEAX DM5 are free-programmable universal measurement devices for heavy-current systems: A classical high-accuracy transducer, suited for monitoring tasks and retrofit applications in energy distribution and industry.
- Settling time 15–25 ms
- Power grid status monitoring: Class 0.2
- Universal: U/I, P/Q/S, f, PF, etc.
- Remote communication via Modbus
- Configuration even without auxiliary power
- Certifications: UL
The device can be adapted fast and easily to the measurement task by means of the CB-Manager software – even if there is no auxiliary power available. Depending on the device version measured quantities can be mapped proportional to analog DC current outputs or to Modbus.
The measurement is done uninterrupted in all four quadrants and can be adapted optimally to the system to be monitored. Both the average time of the measurement and the expected maximum signal level can be configured.
Commissioning is very easy and is supported by means of service functions, such as nameplate printing, connection check, measurement acquisition as well as simulation and trimming of the analog outputs.
- System state monitoring: class 0.2
- Energy metering: class 0.5S, up to 16 tariffs
- Remote communication via Modbus
- Assisted commissioning
- Configuration without power supply
- DM5F: Response time 15..25ms

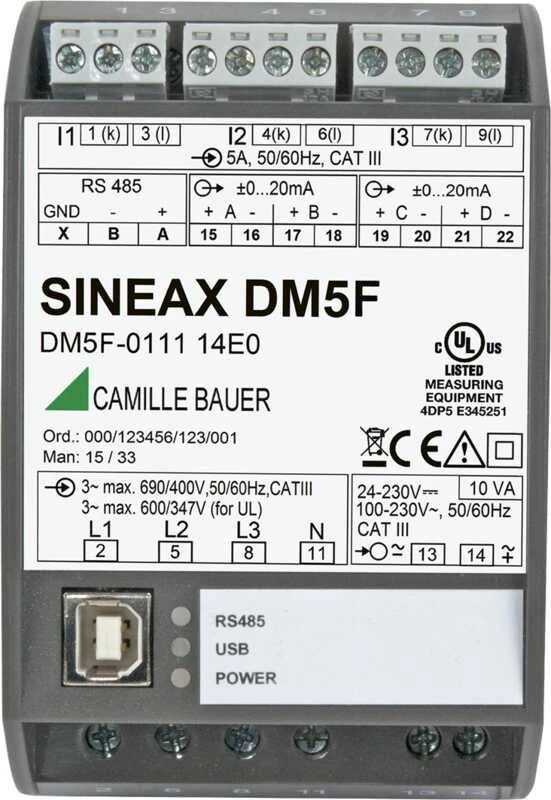

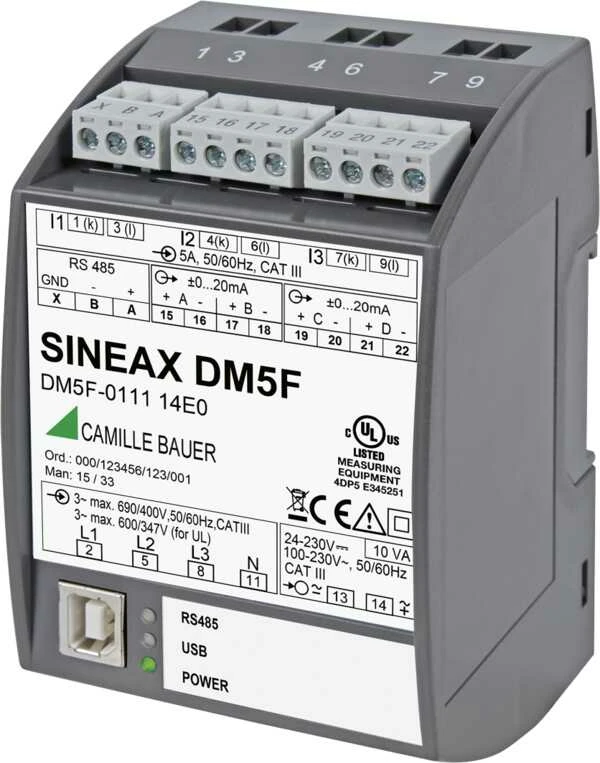

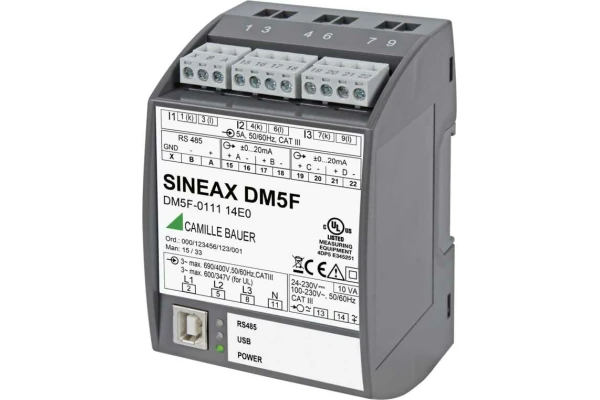

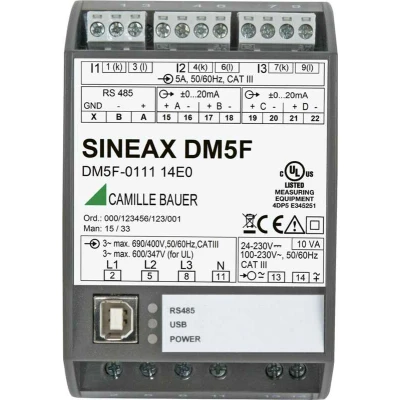

Measurement device SINEAX DM5F
Safety instructions (multiple languages)
