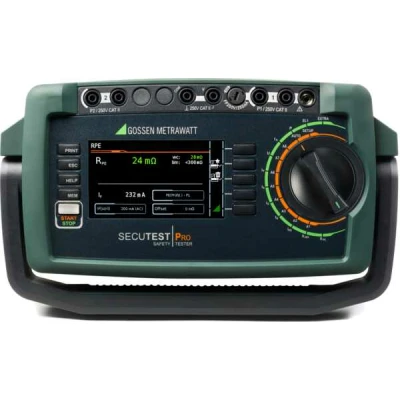

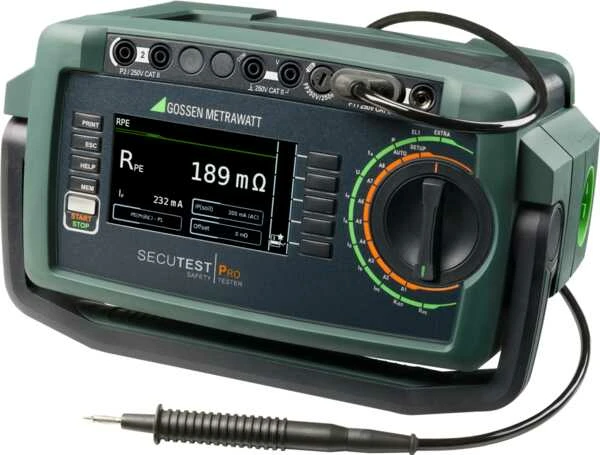

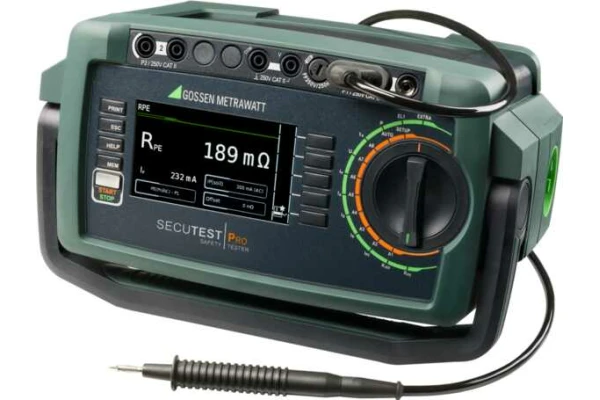

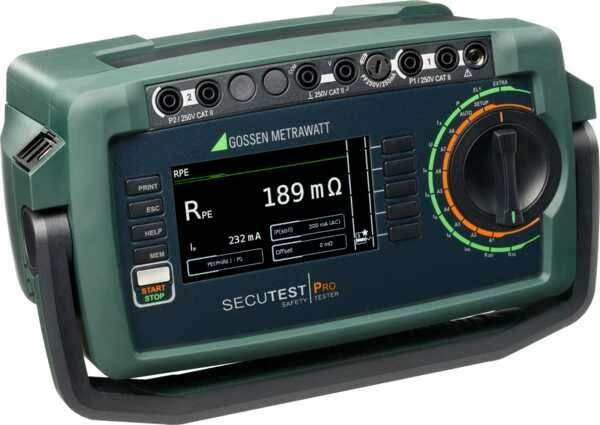

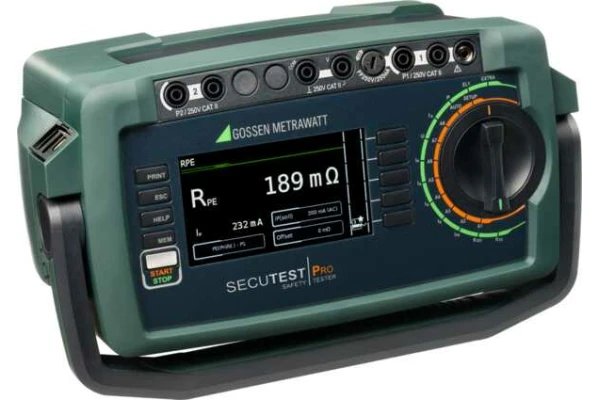

SECUTEST PRO BT comfort IQ

SKU: M705ECategoria: Etichette: , , , ,

Test instrument with standards-compliant test sequences for testing the electrical safety of devices after repair and for periodic testing including IZYTRONIQ data processing software

The Secutest PRO provides all measuring and test functions for testing the effectiveness of protective measures at electric medical devices, as well as welding equipment – with predefined as well as programmable test sequences which are required in accordance with test standards EN 50699/ EN 50678 (VDE 0701-0702), IEC/EN 62353 (VDE 0751) and IEC/EN 60974-4 (VDE 0544-4).

  • Preconfigured and user programmable test sequences for testing electric devices quickly
  • Suitable for use by instructed persons
  • Extensive data management and storage concept for automated test sequences and individual measurements – for up to 50,000 data records
  • providing HTML test report on USB memory

  • Misura della resistenza del conduttore di protezione
  • Misura della resistenza di isolamento
  • Misura della corrente di dispersione                                                                                                                                                                       Metodo equivalente (alternativo), metodo diretto, metodo differenziale: corrente del conduttore di protezione, corrente di contatto                 Corrente di dispersione del dispositivo, corrente del pazient e dalla parte dell’applicazione
  • Misurazione della tensione: tensione di contatto, SELV, tensione PELV
  • Tempo di attivazione PRCD
  • Test funzione (U,I,P,S,LF,f)
  • Prova conduttore: continuità, cortocircuito, polarità (inversione fili)
  • Misura della temperatura (per sensore Pt100/Pt1000)

  • User prompting by means of preprogrammed test sequences in accordance with the standards with automatic evaluation, and thus exceptionally well suited for use by instructed persons
  • Quick access to measuring and test functions via the rotary switch, direct selection keys and softkeys
  • Especially well suited for mobile use, even at construction sites and in industrial environments, thanks to the compact, impact-resistant housing with integrated rubber protector
  • Unique multiple measurement permits convenient documentation of several measuring points
  • Suitable for international use thanks to extensive setting options for language, keyboard, character set, date, time and country-specific standards

Reliable, comprehensive and efficient testing of

  • Electric devices in accordance with manufacturer’s specifications by means of programmable test sequences based on any standards
  • Electric devices per EN 50699/ EN 50678 (VDE 0701-0702) including extension cords and PRCDs
  • Electric medical devices per IEC/EN 62353 (VDE 0751)
  • Arc welding equipment per IEC/EN 60974-4 (VDE 0544-4)

Istruzioni per l’uso
Certificato CE
Scheda tecnica
Guida di riferimento rapido
Opuscolo, volantino, brochure, …

1 SECUTEST PRO BT IQ test Instrument
1 Mains cable
1 Test probe, 2 m, not coiled
1 USB cable, USB A to USB B, length: 1.0 m
1 Plug-on alligator clip
1 KS17-ONE cable set for voltage measuring inputs
1 Calibration certificate
1 Set of condensed operating instructions, D und GB
1 Set of complete operating instructions available on the Internet
1 IZYTRONIQ BUSINESS Starter report generating software
