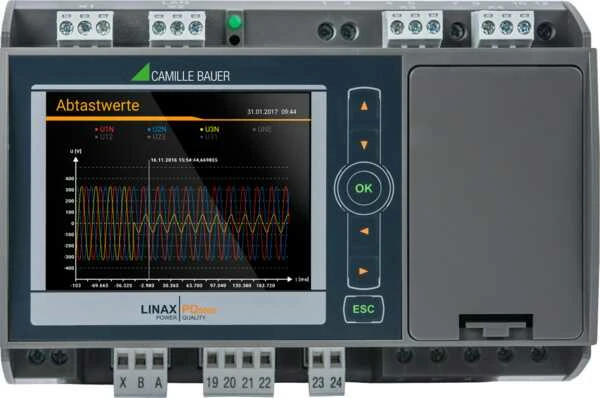

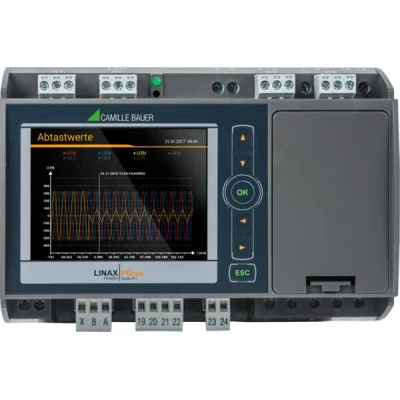

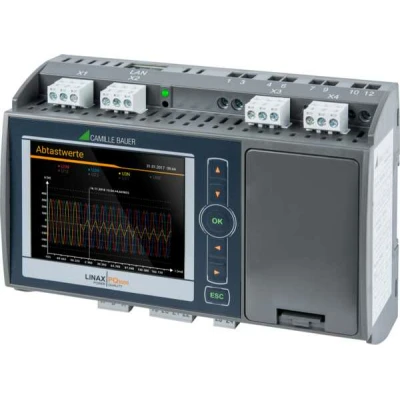

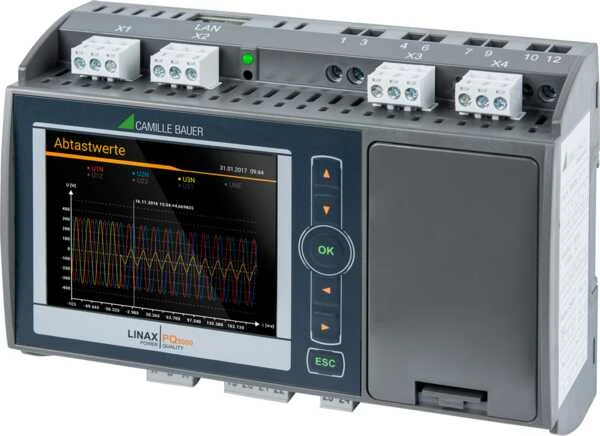

LINAX PQ5000
Stationary PQ measurement technology in class A as top-hat rail mounting.
The LINAX PQ5000 combines the characteristics of a normative power quality measurement device with functions for energy consumption and condition monitoring.
The modern, multi-lingual design allows operating and parameterizing the device via website or the high-resolution color TFT display (800x480px). The integrated webserver provides remote acquisition, visualization and analysis of measured data. No additional software is required.
- Independent certification acc. IEC 62586-2 by Federal Institute of Metrology METAS
- Support for standardized, manufacturer independent PQDIF format acc. IEEE 1159.3
- Definable event recording duration: Up to 6 seconds for samples and 3 minutes for RMS values
- Event display via website with time zooming function and reading of values
- Report generation via the device’s web interface (PQ Easy Report)
- Cyber security (OT) / cyber protection
- Optional PME control center: PME sensors for recording up to 100 currents via radio signal
- Power mean-values with trend-analysis for preventing load-peaks
- Load profile storage with fluctuation range (min/max) per interval
- Active energy class 0.2S, Reactive energy class 0.5S (HT/LT, demand/delivery), configurable resolution
- Further mean-values and meters with selectable base quantity
Power quality analysis
The device is intended to be used for a permanent power quality assessment according IEC 61000-4-30 Ed.3 in class A. The recorded events (voltage sag, voltage swell, voltage interruption, RVC, current swell, frequency change and homopolar voltage) serve both to prove that disturbances have occurred and to search for the origin of the disturbance in order to increase security of supply. Using the statistical voltage and current quantities, compliance with supply contracts or internal requirements can be verified. Assessment according EN 50160, IEC 61000-2-2/4/12, IEEE 519, GB/T or self-defined limits can be carried out after the measurement, corresponding conformity reports can be created via the device website (PQEasy-Report).
Options
Analog outputs ±20mA (4), UPS (5×3 minutes), IEC61850, Profinet I/O
Communication
- Ethernet (Modbus/TCP, http/https, NTP, SFTP, SYSLOG, REST API)
- Modbus/RTU
- Optional: IEC61850, Profinet I/O
- Automated data export (CSV and PQDIF files) to SFTP server
Cyber Security (OT) / Cyber Protection
- Role-based access authorization (RBAC)
- Hypertext Transfer Protocol Secure (https)
- Client Whitelist / Client IEC61850 Whitelist [Firewall]
- Audit log [registration of all manipulations]
- Sys-Log
- Secure firmware updates
- Data logger & uninterruptible power supply (UPS)
- Data export
- PEN test
Further features
- 4 current and 4 voltage measurement channels with 0.1% accuracy
- Measurement category 600V, CAT III (voltage), 300V, CAT III (current)
- Standard I/Os: 1 digital input, 2 digital outputs
- 16 GB data memory
- Sampling rate: 18kHz
- Monitoring and alarming via limit values and monitoring functions
- For top-hat rail mounting
- Identical operation to devices in the SINEAX® AM/DM series and CENTRAX® CU series
Test protocol
- Included in the scope of delivery
Data analysis
The free PQDiffractor software from Electrotek Concepts can be downloaded via the link http://www.pqview.com/pqdiffractor/ (registration required). With this software, the data from the PQDIF files can be analyzed, saved in CSV format or exported as a graphic.
Digital network management
SMARTCOLLECT® SC2 software can be used to set up a complete ecosystem for power quality and power monitoring.
