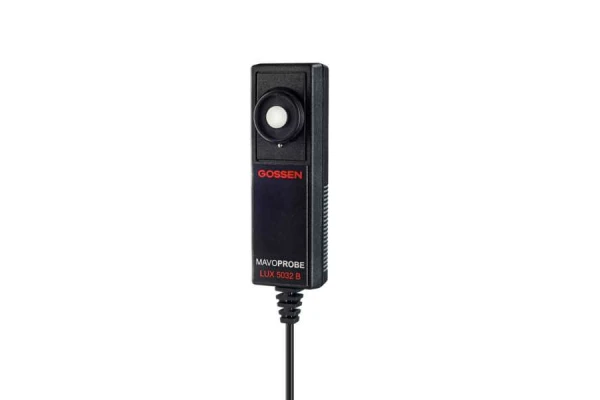

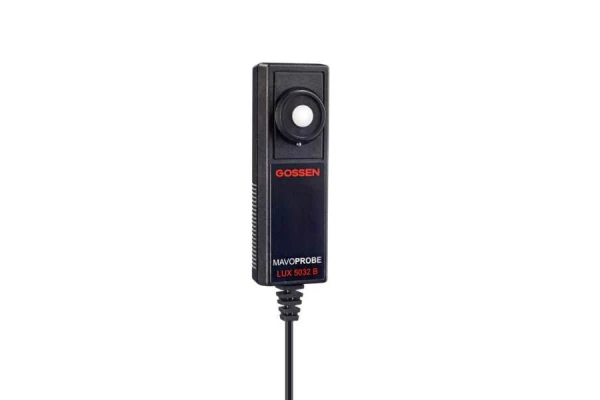

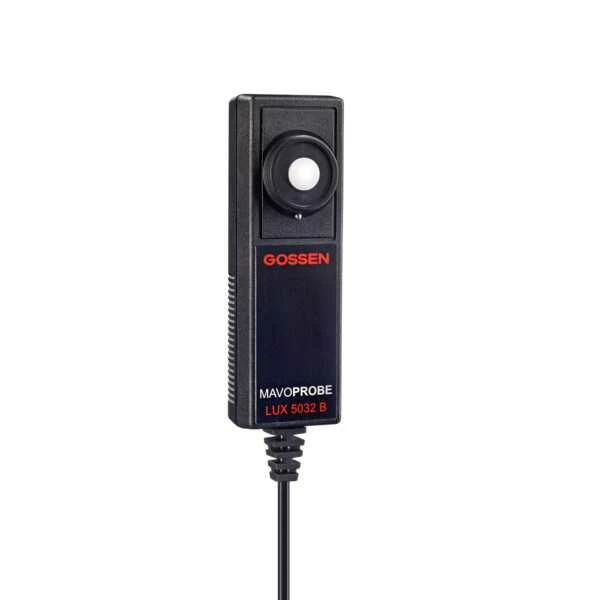

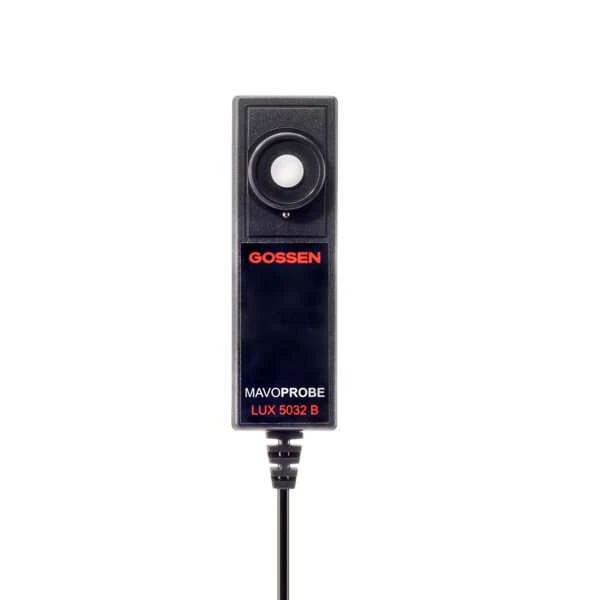

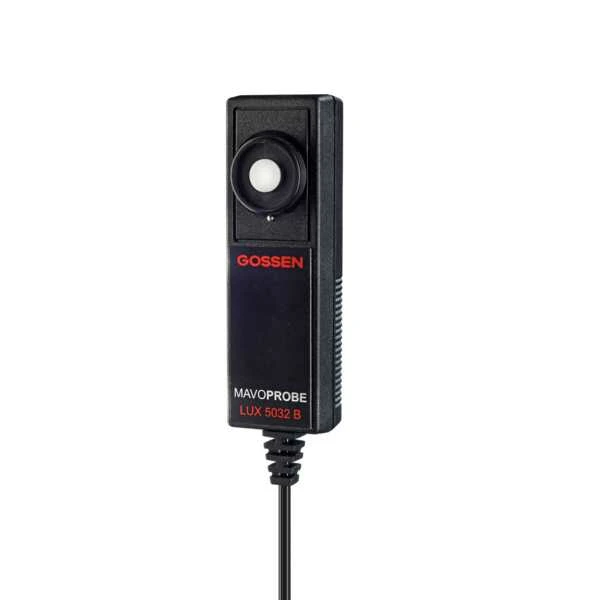

MAVOPROBE LUX 5032 B
High-precision measuring probe for illuminance class B DIN 5032-7
The MAVOPROBE LUX 5032 B is classified according to class B DIN 5032-7, DIN EN 13032-1 appendix B and ISO/CIE 19476. It measures the intensity with which an area is illuminated in lux (lx) or foot-candle (fc).
- Simple functional expansion with optional luminance attachment
- Universal use as a measuring device or single- and multi-channel measuring system
- Simple system integration, serial data transmission, open protocol
- Self-sufficient calibration, low packaging effort and cost-effective shipping
- Sustainable device concept, firmware update via USB interface
- Optionally extendable connection cable and optional adapter for USB 2.0 plug A
- Measuring device and calibration from a single source!
Illuminance
- Measuring range: 0.001 lx … 199990 lx
- Accuracy: +/- 2.5% +/- 1 digit
Luminance with optional luminance attachment M516G
- Measuring range: 0.01 cd/m² … 1,999,900 cd/m²
- Accuracy: +/- 3.5% +/- 1 digit (paired) or +/- 5% +/- 1 digit (not assigned)
Miscellaneous
- Measuring rate: 2 measurements / second
- Connection cable: 1.5 m, pluggable
- Supply: via MAVOMASTER or USB interface
- Interface: USB 2.0 with optional USB adapter cable V074A
1 x MAVOPROBE LUX 5032 B
1 x operating instructions D/GB
1 x final test certificate
