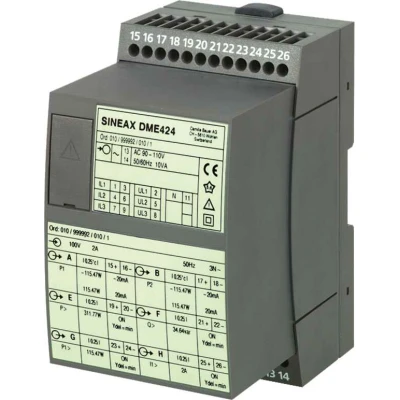

DME 424

Prog. Multi-Transducer, 4 Energy Meters, 2 Anlog and 4 Digital Out, RS232

Programmable multi-transducer for simultaneously acquiring several quantities in heavy current systems. The output quantities of the analog outputs can be configured as load-independent direct current or direct voltage signals.

The digital outputs are suitable for limit value monitoring or energy metering.

  • With 2 analog and 4 digital outputs
  • 4 programmable energy meters for Ah, kVAh, kWh and kvarh
  • Programmable application (type of electrical system)
  • Current to 10 A, voltage to 830 V
  • Programmable universal analog outputs
  • Accuracy: U/I 0.2%, P 0.25% under reference conditions
  • Universal digital outputs: meter transmitter, limit values
  • Password protected software for programming, data analysis and simulation
  • AC-DC power pack with large tolerance range, or AC only
  • CSA certification
  • Housings: SINEAX: top-hat rail or wall mounting

Istruzioni per l’uso
Certificato CE
Scheda tecnica

1 Operating Instructions SINEAX DME 424/442 in three languages: German, French, English
1 blank type label for recording programmed settings
