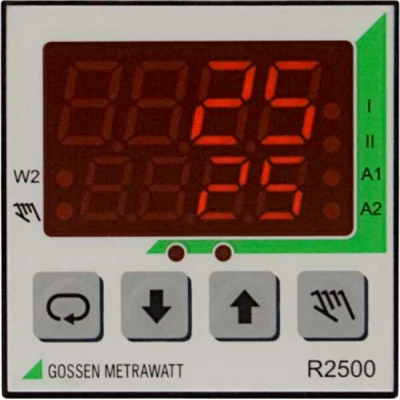

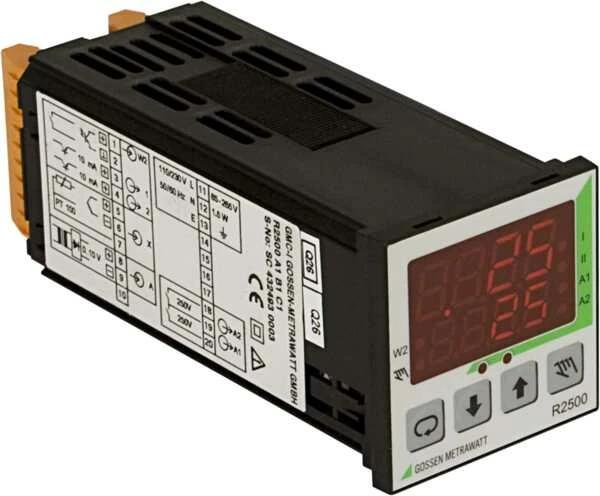

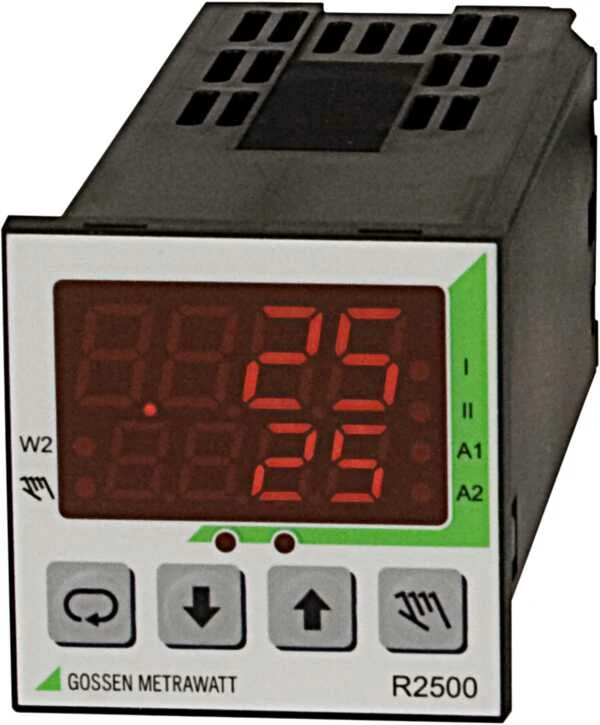

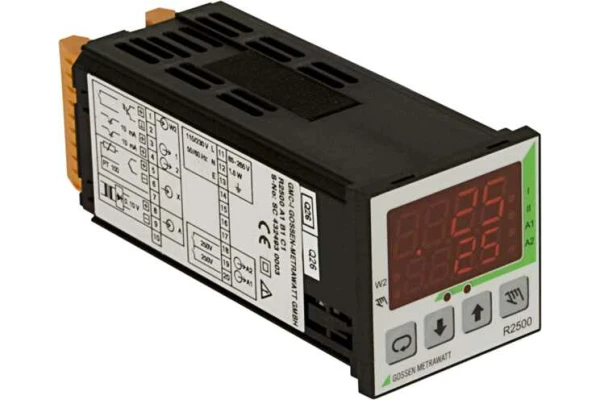

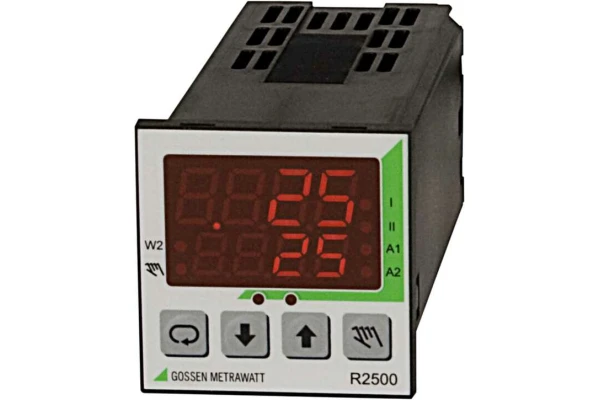

r2500-r2500_front.jpg r2500-r2500_persp1.jpg r2500-r2500_persp2.jpg

The standard version includes the following functions:

  • PDPI – Algorithm for Induction Heating Systems – see pdf below
  • pH-Value Control – see pdf below
  • Outputs configurable
  • IP 67 protection
  • 100 ms sampling cycle with integrated transformation for suppression of 50/60 Hz including harmonics up to the 13th harmonic
  • PDPI control without overshooting
  • Control parameter adaptation can be started at any time
  • 2-step, 3-step, continuous action and step-action controller
  • Program controller – 8 programs with 12 segments
  • Split range controller (discontinuous and continuous)
  • Hot-runner control with actuating circuit and booster circuit
  • Water cooling control (non-linear cooling effect with evaporation)
  • Temperature limiter
  • Data logger for actual values and setpoints
  • Alarm history with time stamp
  • Infrared interface at front panel with optional adapter
  • Password protection
  • CompactConfig software tool
  • Structured operating and programming system
  • RS 485 Modbus interface (optional)
  • Functionally compatible with R2400 electronic controller
  • Special functions -> more information
  • 3 Years Warranty
  • Made in Germany

  • Sensor input for thermocouples, Pt100, Ni100, direct current, direct voltage (optional)
  • Thermocouple input immune to leakage current (up to 230 V)
  • Suitable for zones with temperature rises of up to 100 K/s
  • Monitoring for sensor failure, reversed polarity and short-circuiting
  • Plausible regulated temperature becomes active in the event of sensor failure
  • Setpoint ramps (up-down), proxy setpoint, setpoint limiting
  • Heating circuit monitoring without additional transformer
  • Heating current monitoring via external current transformer (optional)
  • Numerous monitoring functions and alarms
  • Current settings can be saved as user defined standard settings – default values can be restored

Istruzioni per l’uso
Certificato CE
Scheda tecnica
Opuscolo, volantino, brochure, …
Descrizione dell’interfaccia

  • Controller as ordered depending upon designation
  • 2 mounting components
  • Operating instructions, language according to designation
