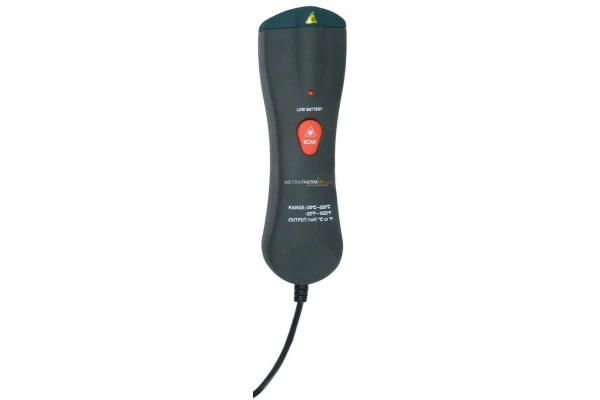

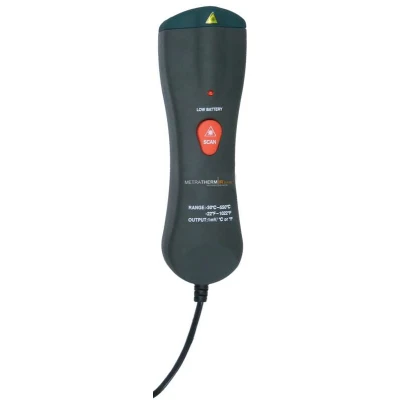

METRATHERM IR BASE temperature sensor

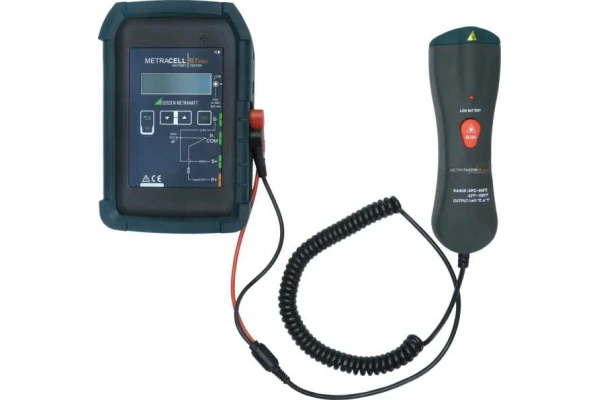

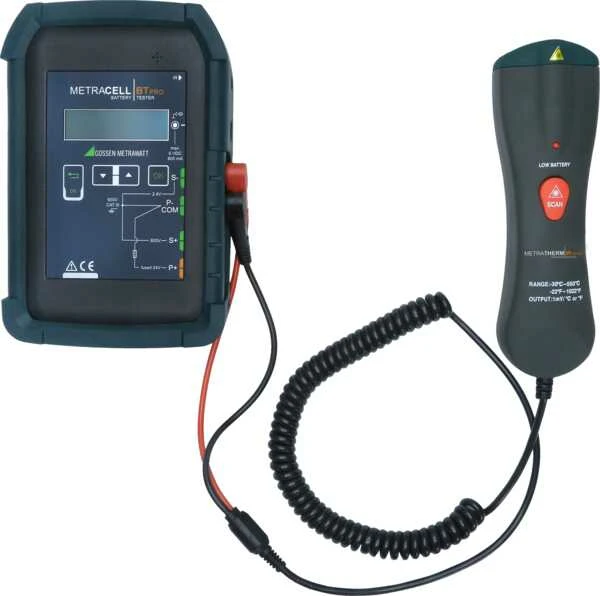

The METRATHERM IR BASE is a non-contact temperature sensor for testing devices of the METRACELL and other series. By simply pointing at the surface to be measured, the temperature is shown on the display of the testing device. The temperature tester automatically compensates for temperature deviations of the ambient temperature.

  • Operating temperature: 0 – 50 °C
  • Measuring range: -30 – +550 °C
  • Protection class: II according to DIN EN 61140/VDE 0140-1/EIC 61140
  • Protection class: IP40
  • Accuracy: ±2 % of measured value or ± 2 °C (4 °F), whichever is greater. Specifications apply at ambient temperatures in the range +18 … +28 °C.
