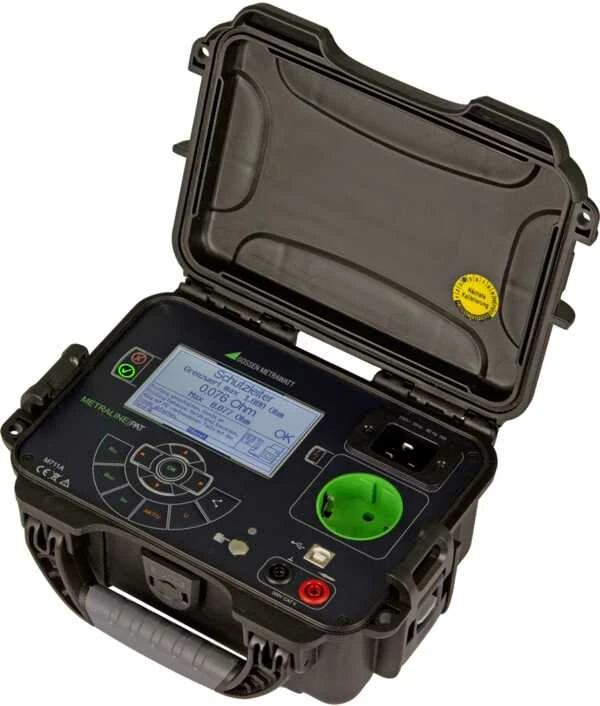

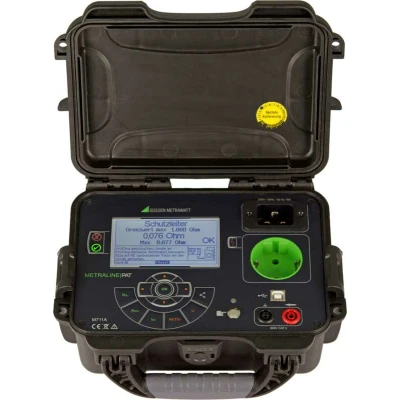

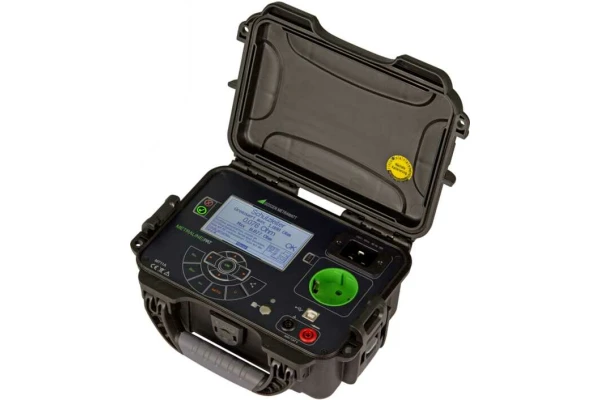

Test Instrument for Testing in Accordance with DIN VDE 0701-0702

Instrument for testing protective measures at electrical devices per DIN VDE 0701-0702, German version, including ELEXONIQ Android app for data logging and data transfer to IZYTRONIQ

  • Quick selection of individual measurements via direct selection keys
  • 2-pole measurement (low-resistance, insulation, equivalent leakage current, voltage)
  • Testing of permanently connected devices is possible
  • Testing of the mains connection for PE connection and automatic shutdown in case of dangerous residual current at the device under test
  • Quick mains polarity reversal with load monitoring
  • Quick processing of all active tests including function test with TRMS power display in just a single step. Standby measurement
  • Bluetooth interface for tablet operation and USB interface for PC operation
  • Android app “ELEXONIQ Appliance Testing APP” for data transfer to IZYTRONIQ (download »)
    Installation via the Google Playstore is not possible. In order to install the app, save it in the download directory of your smartphone (e.g. by sending the app to yourself as an e-mail and saving the attachment). If a current version is already installed on your smartphone, it must be uninstalled first. Subsequently, install the current version from the download directory of your smartphone.
    Unzip the zip file first and transfer the file elexoniq1.7.0.apk subsequently to your smartphone.

  • Protective conductor resistance: 0 … 4000 Ω
  • Insulation resistance: 0 … 20.00 MΩ
  • Equivalent leakage current: 20.00 mA
  • Differential current: 0 .. 20.00 mA
  • Touch current: 0 … 4000 mA
  • Function test: Touch current IT: 0.000 mA … 4000 mA
    Differential current ID: 0.00 mA … 20.00 mA
    Current consumption I: 0.00 A … 20.00 A
    Line voltage U: 0.0 V … 250.0 V
    Active power P: 0 W … 4000 W
  • Dimensions (W x H x D):230 x 175 x 95 mm
  • Weight: approx. 1.3 kg

  • Testing in accordance with DGUV regulation 3, DIN VDE 0701-0702
  • Compact design, minimal weight
  • Clear-text operation with schematic diagrams and green/red LED display for go/no-go
  • Large high-contrast display
  • Finger contact for testing protective conductor potential
  • Short-circuit test for the device under test
  • Automatic limit value adjustment (protective conductor, insulation, equivalent leakage current)

Istruzioni per l’uso
Certificato CE
Scheda tecnica
Opuscolo, volantino, brochure, …

1 test instrument
1 red measurement cable with safety plug and test probe, 2 m
1 mains connection cable, Schuko – IEC 60230, 16 A, 1.5 m
1 factory calibration certificate
1 set operating instructions
