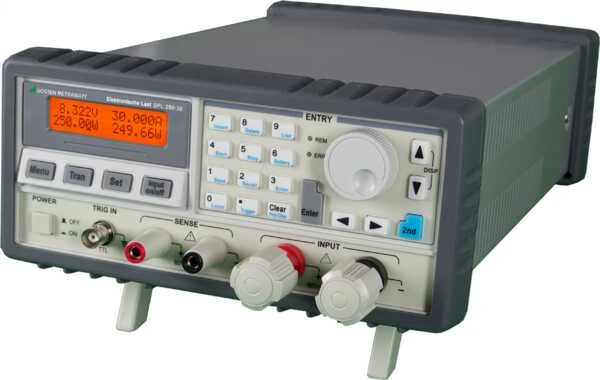

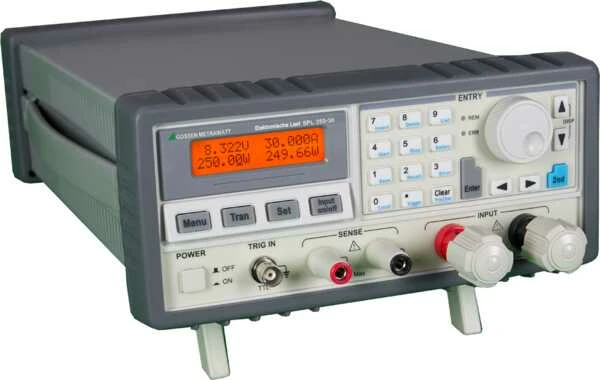

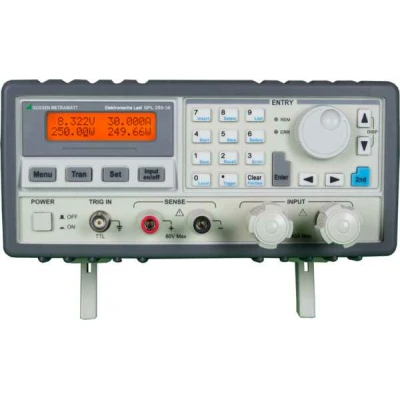

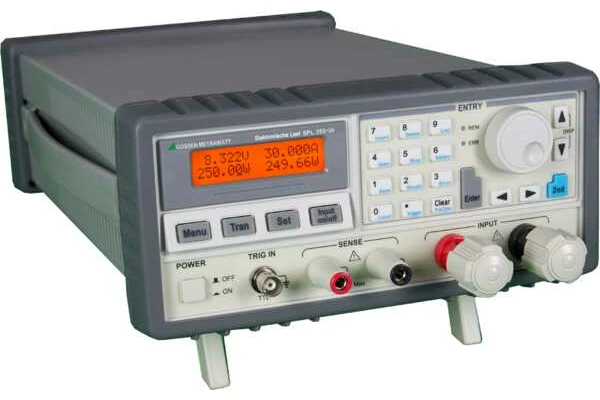

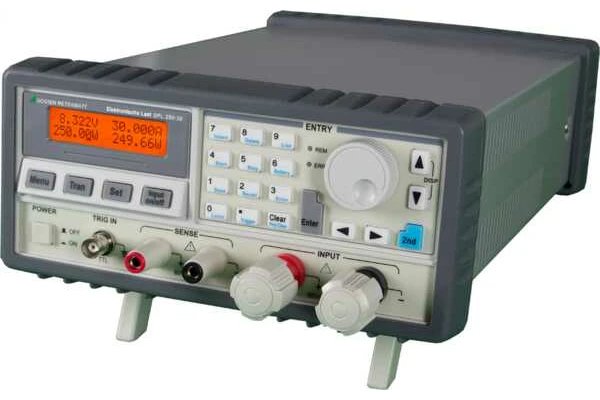

SPL 350-30

Programmable Electronic Loads, Power: 350 W, Voltage: 0…200 V DC, Current: 0…30 A

SPL series electronic loads are high-precision direct current sinks for use in research, product development, production, service and vocational training.

Four types are available with 200 until 400 W input power. The devices are distinguished by a diverse range of functions and excellent regulating accuracy, as well as outstanding ease of operation.

  • 4 operating modes: constant current, constant voltage, constant load and constant power
  • High-speed sequence and transient measurement, short-circuit proof, battery discharging and other auxiliary functions
  • Minimum operating voltage is less than 0.6 V (80 V models)
  • or 1.2 V (200 V models) at maximum current load
  • Programmable current rise and fall time, steep edges
  • Several groups of parameters (device settings) and sequences (load profile) can be saved and retrieved.
  • Floating power input / no grounding
  • Safe electrical separation
  • Input can be switched on and off
  • Voltage or current control is possible with constant power
  • Settings selected by means of a rotary switch and keypad
  • Multifunctional LCD panel
  • Safety functions, amongst others adjustable power limiting
  • Benchtop instrument, also suitable for mounting to a 19″ rack

  • Typ SPL350-30
  • Article No. K855A
  • Front panel load input 1
  • Power W 350
  • Current 0 – 30 A
  • Voltage 0 – 200 VDC
  • Resolution in the operating mode: Constant current from 0,1 mA / Constant voltage 1 mV / Constant load ab 0,1 mOhm / Constant power 10 mW
  • Supply voltage 115 / 230 VAC 50 / 60 Hz
  • Dimensions W/H/D (mm) Approx. 215 / 100 / 350
  • Weight with rubber cover Approx. 6 kg
