Test reports and individual test steps and/or test series can be written („printed“) directly from the SECUTEST… test instrument to the memory adapter, and can be subsequently read out and processed at a PC.

This memory adapter is thus especially well suited for archiving and transmitting test reports. Depending upon their scope, up to 1,000 test reports or test series can be saved to memory.

• Memory for measured values for approx. 1,000 reports
• Stores all measurements that are generated via “direct print-out”
• Stores all reports that are printed via report templates.
• Reading of the memory adapter and printing of the reports in PDF format via ETC software (ETC version 1.23 or higher)

• Suitable for all SECUTEST / SECULIFE ST with firmware version 8.12 e.g. 7.24 or higher
• RS232 interface for connection to SECUTEST / SECULIFE ST
• Additional RS232 interface for connection of a barcode / RFID reader to the tester
• USB interface for connection to a PC
• (Press key “receive structure”)

Please note that the direct print-out option must be enabled in order to save individual test steps or test series to your SECUTEST…

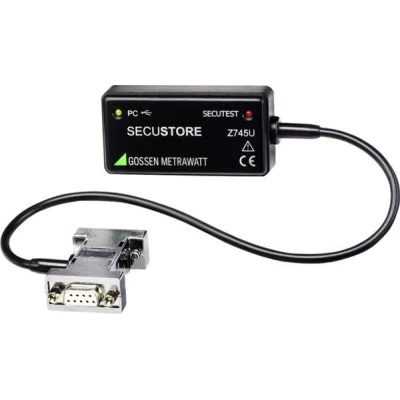

1 SecuStore memory adapter (Z745U)

1 Set of operating instructions

1 USB connector cable (USB-A – USB-B)
