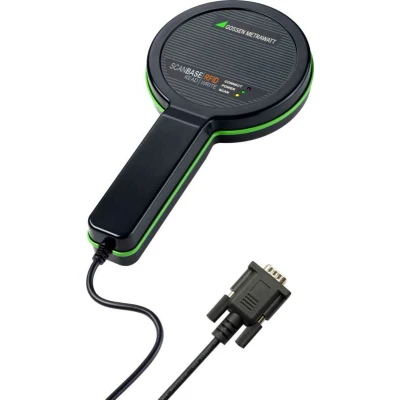

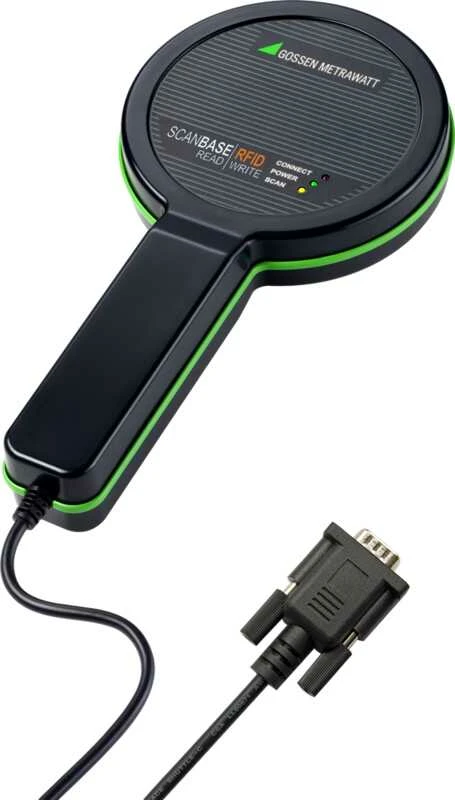

RFID Reader / Writer (13.56 MHz) for Test Instruments with RS 232 Port

The RFID identification system is used to mark and identify tools and equipment.

ID numbers can be written to RFID tags via a PC with the SCANBASE RFID or .SCANBASE RW.

SCANBASE RW devices read out the code and forward it to our test instruments, in order to be able to allocate measured values and test results to the device under test in an unequivocal fashion (*).


Z751E Z751G

  • Interface USB RS 232
  • Frequency 13.56 MHz
  • Readable codes ISO15693, Z751R, Z751S, Z751T
  • Approx. scanning distance 30 mm
  • Power supply Via USB Via RS 232
  • Operating temperature -10 to +55° C
  • Dimensions 240 x 120 x 35 mm

See additional ID systems for data logging.

(*) In order to program the tags, the Z751G must be connected to the RS232 port at a PC. A special RS232 cable with a power pack are required to this end, which can be purchased upon request.

Istruzioni per l’uso
Scheda tecnica
