TRMS universal multimeter with digital display (12,000 digits) and current measuring ranges optimized for measuring transducers

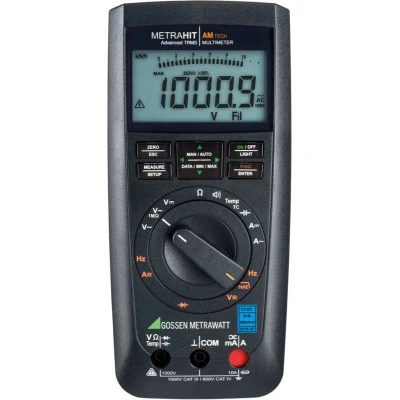

The METRAHIT AM TECH is a universal multimeter from the METRAHIT Advanced Multimeter series.

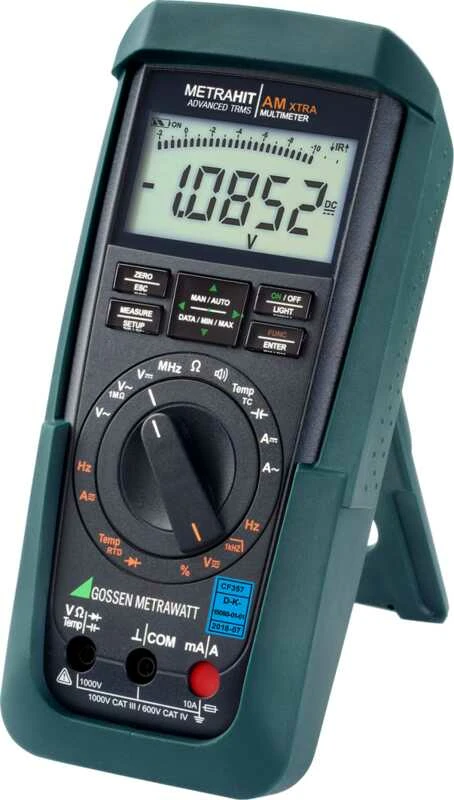

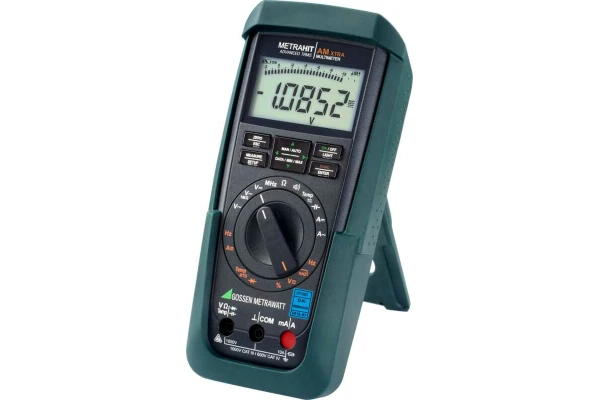

The multimeters of the METRAHIT AM series, including METRAHIT AM BASE, PRO, TECH and XTRA, are extremely rugged, reliable digital multimeters with housings made of impact-resistant plastic. They feature an appealing design and are equipped with state-of-the-art technology.

  • TRMSAC, AC+DC measurement up to 10 kHz for voltage and current
  • Direct current measurement with increased accuracy of 0.1% for measurements at measuring transducers
  • Broad range capacitance measurement

  • 20 multimeter functions
  • Resolution: ±12,000 digits, 4½-place
  • Basic accuracy: ±0.05% (VDC)
  • Voltage ACTRMS, voltage AC+DCTRMS, voltage DC, frequency (Hz, kHz), resistance, diode test, continuity test, capacitance, current ACTRMS, current AC+DCTRMS, temperature with type K thermocouples
  • Auto-range current measurement from 1 mA to 10 A (16 A) via a single connector jack and a single fuse • Clip function for current measurement with transformers and sensors
  • Additional filter function and voltage measurement with reduced input impedance for limiting interference, e.g. for measurements at frequency converters
  • Automatic and manual measuring range selection
  • Automatic storage of measured values: DATA / MIN / MAX
  • Large, light-blue illuminated display with extra-large characters (15 mm) and an analog bar graph for dynamic processes
  • Separate battery and fuse compartments
  • Patented automatic blocking sockets (ABS)
  • Measuring category: 600 V CAT IV, 1000 V CAT III

  • Universal use in all fields of electrical engineering!
  • TRMS measurement up to 10 kHz with digital display (12000 digits) and analog scale
  • Measurement of voltage and current, DC, AC and AC/DC, resistance, capacitance, temperature, frequency, continuity/diodes
  • Clip function for current measurement with transformers and sensors
  • Automatic measuring range selection and measured value storage
  • Safety for the user and the instrument in measuring categories CAT IV up to 600 V and CAT III up to 1000 V.

The multimeter is suitable for universal use in electrical engineering, electrical installation, laboratory applications, telecommunication, training etc.

Thanks to the current measuring ranges with enhanced accuracy, it’s especially well suited for measurements at measuring transducers in the process industry.

The instrument can be used in the field and is equipped with an internal, mains-independent power supply.

Istruzioni per l’uso
Certificato CE
Scheda tecnica
Guida di riferimento rapido
Opuscolo, volantino, brochure, …

1 Multimeter
1 Pair of safety measurement cables (1.5 m) with 4 mm test tips, 1000 V CAT III, 600 V CAT IV (KS17-2)
2 Batteries, 1.5 V, type AA
1 Condensed operating instructions, English/German
1 CD ROM with operating instructions in German and English
1 DAkkS calibration certificate
