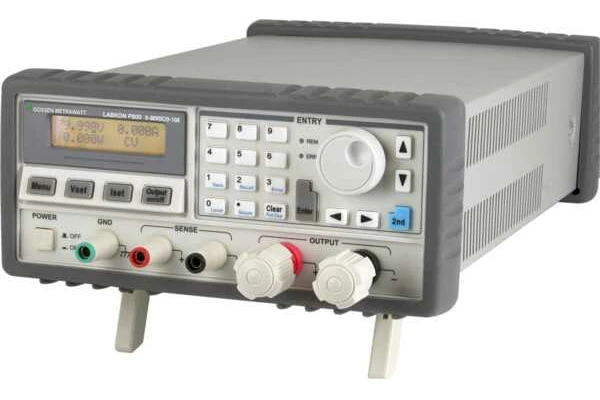

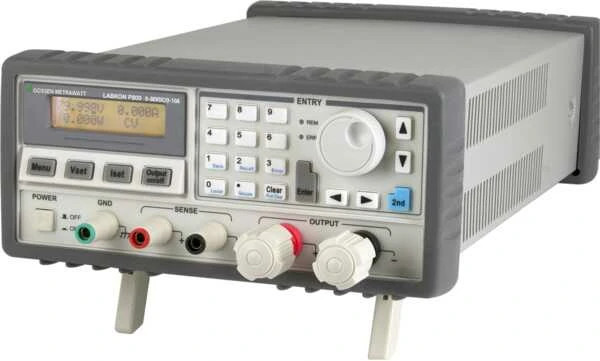

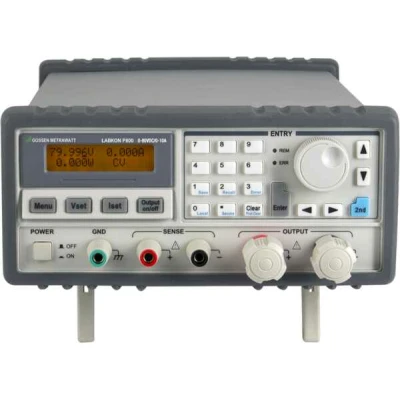

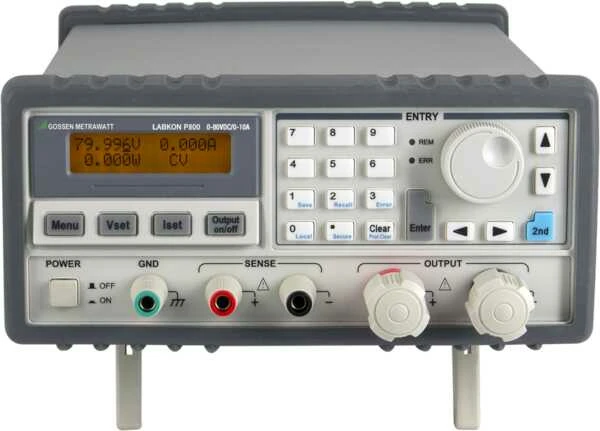

LABKON P800 120/6
Laboratory power supplies, computer controllable
- Power: 500 or 800 W
- Voltage up to 120 V, current up to 22.5 A
- CV and CC operating modes, automatic switching
- Output voltage and output current can be continuously regulated from 0 up to nominal value.
- Several groups of parameters (device settings) can be saved and retrieved.
- Floating power output / no grounding
- Highly efficient • Safe electrical separation
- Output can be switched on and off
- Supports SCPI (standard commands for programmable instruments)
- Settings selected by means of rotary switch and keypad
- Multifunctional LCD panel
- Protective functions, amongst others overvoltage protection
- Auto-sensing mode
- Benchtop instrument, also suitable for mounting to a 19″ rack
- Rugged and compact with simple handling
- RS 232 port, optional GPIB (IEEE-488) and USB interfaces
- Calibration (adjustment) function
- Power: 500 or 800 W,
- voltage: up to 120 V, current: up to 22.5 A
- CV and CC operating modes, automatic switching
- Output voltage and output current can be continuously regulated from 0 up to nominal value
- Several groups of parameters (device settings) can be saved and retrieved.
- Floating power output / no grounding
- Highly efficient
- Safe electrical separation
- Output can be switched on and off
- Supports SCPI (standard commands for programmable instruments)
- Settings selected by means of rotary encoder and keypad
- Multifunctional LCD panel
- Protective devices – amongst others overvoltage protection
- Auto-sensing mode
- Benchtop instrument, also suitable for mounting to a 19″ rack
- Rugged and compact with simple handling
- RS 232 port, optional GPIB and USB
- Calibration (adjustment) function
- Type LABKON P800
- Power (W) 800
- Voltage (V) 0-120
- Current (A) 0-180
- Article No. K160A
1 Benchtop instrument
1 Rubber protector
1 Mains cable (earthing contact)
1 Safety precautions
1 CD ROM with operating instructions (German and English)
