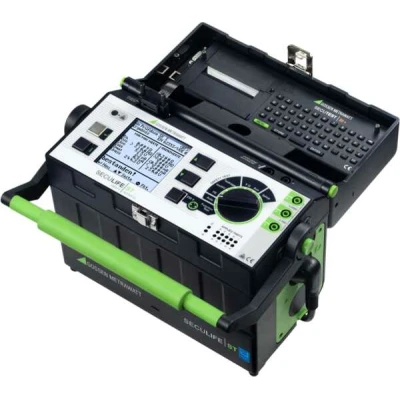

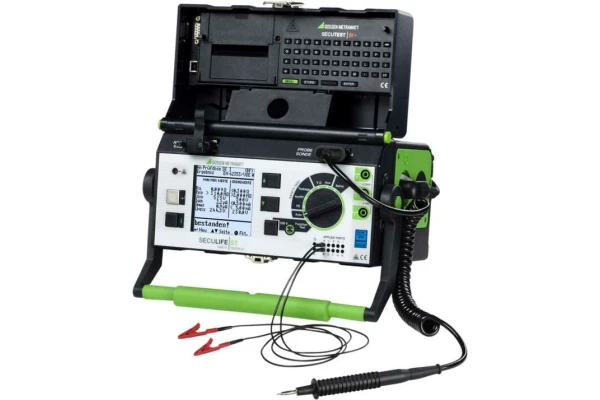

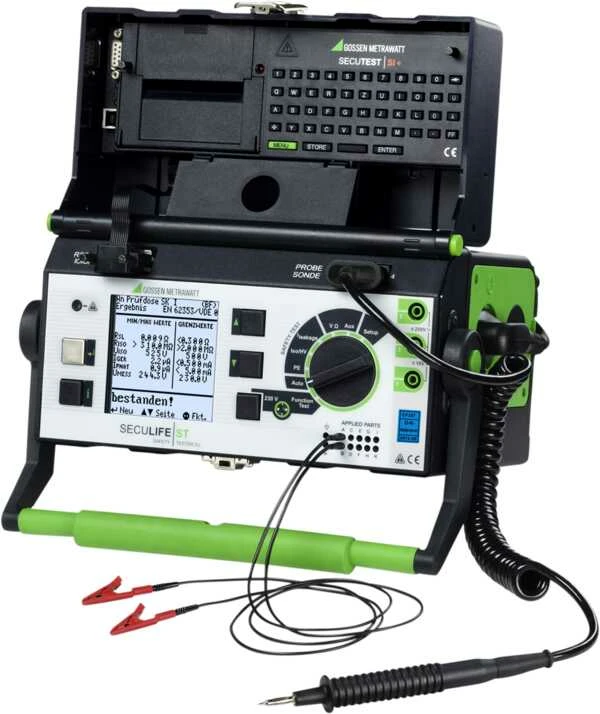

Item number: M693D (SECULIFE ST HV (int.) for international use with English user interface)

Test Instrument with Standards-Compliant Test Sequences according EN 62353, EN 60601, EN 61010, EN 60335, EN 60950, GOST R (ГОСТ Р) 60601, VDE 0701-0702 for Testing the Electrical Safety of Devices, in Particular After Repair or in Production

The SECULIFE ST is the only measuring instrument available on the market which has been designed to test medical devices operated with 3-phase electrical current. The three-phase current adapters AT3-IIIE and AT3-IIS 3-phase current adapters can be furnished to this end as optional accessories.


  • RS 232 port
  • SecuStore memory adapter (optional)

Power supply: mains connection for 110 V / 60 Hz, 230 V / 50 Hz

Options: printer-memory-interface (PSI module)

Software: The SECULIFE ST is compatible with PS3, visualFM, Fundamed, MD Data and other software packages.


Features Combination: as M693A, but with test current 200 mA DC and 25 A AC additionally with high-voltage test max. 6,126 kV DC (ca. 4 kV AC)

Article No. Preferred Types: M693C

Electrical safety testing:

  • Electrical medical devices per DIN VDE 0751 / IEC 62353 and EN 60601 2nd and 3rd edition
  • Electrical equipment per DIN VDE 0701-0702
  • Routine tests, e.g. per EN 61010, EN 60950, EN 60335 etc.

Measuring options:

  • Protective conductor resistance with 200 mA and 10 A test current
  • Insulation resistance
  • Earth leakage current
  • Contact current (device leakage current)
  • Patient leakage current, AC and DC
  • Patient auxiliary current
  • Equivalent leakage current procedure
  • Direct measurement
  • Differential current measurement
  • Up to 10 application parts can be connected (4 mm) and individually assigned to groups
  • Internal memory for 125 tests

Istruzioni per l’uso
Certificato CE
Scheda tecnica
Guida alla configurazione rapida

1 test instrument with 10 + 2 connectors for application parts
1 probe cable with test probe
1 plug-on alligator clip for test probes
3 plug-on quick-connect terminals
10 conductor patient connection cable 2 mm
10 Clip-on alligator clip 2 mm
1 Calibration Certificate per DAkkS
1 operating instructions
1 carrying strap
