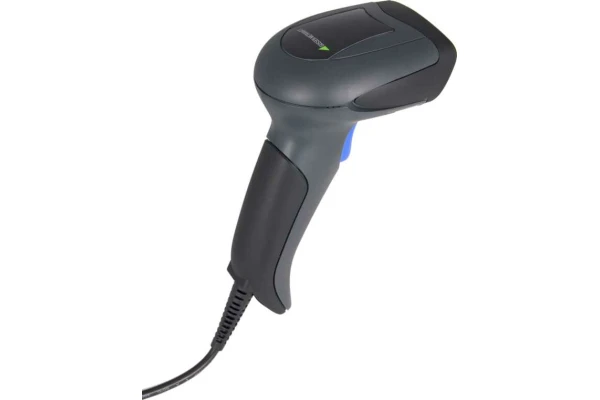

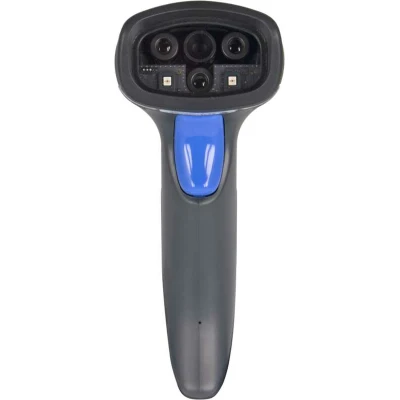

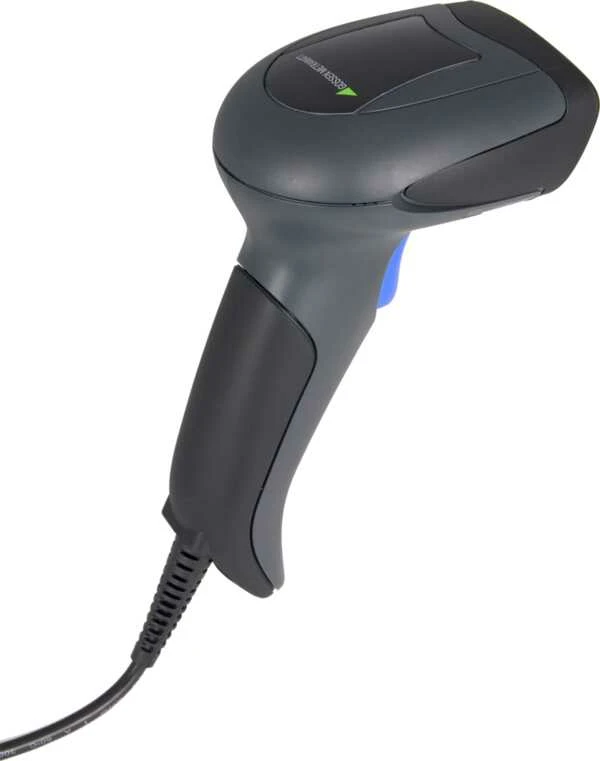

Z720A

Barcode Reader / Scanner with Laser for Test Instruments with RS 232 Port

Advantages of the laser scanner:

  • scanning of 2D codes eg. QR codes … (*)
  • Scanning of barcodes from considerable distances
  • Variable barcode lengths
  • Better reading accuracy

The barcode scanner is configured for use with the following barcodes: EAN 13, CODE 39 and CODE 128.

For use with PROFITEST 204 and MetraMachine an additional adapter is required. For use with SECUTEST PSI or SI+ an upgrade in our GMC-I Service is required […more].

Please contact our product support department if you would like to use the SECUTEST… for other codes.

Barcode Reader / Scanner

Type Z720A Z751A

Technology Sensor: wide VGA Sensor: wide VGA

Interface RS232 USB

Readable codes Code 39, Code 128, EAN 13, EAN 128, 2D-Code, ..

Approx. scanning distance 350 mm 350 mm

Power supply Via RS232 Via USB

Operating temperature 0 … 50 °C 0 … 50 °C

Dimensions 163 x 91 x 41 mm 163 x 91 x 41 mm

(*) 2D codes (and QR codes) as of serial number G15 (approx. August 2015).

See additional ID systems for data logging.
