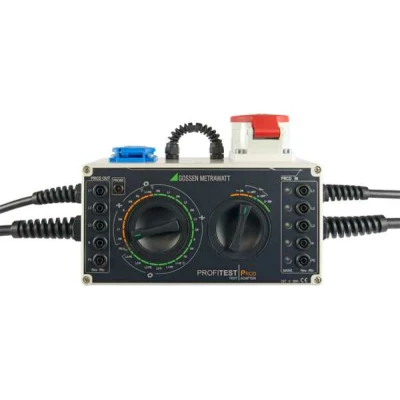

Adapter for Standards Compliant Testing of Portable Protective Devices

Adapter for standards compliant testing of type S and K PRCDs by simulating faults per DIN VDE 0701-0702, VDE 0661, BGI / GUV-I 608 and manufacturers’ specifications.

Testing of Type S and K PRCDs by Simulating Errors with the Profitest PRCD and the Profitest MXTRA

  • Testing of the following types of portable protective devices: – PRCD-S (single-phase / 3-pole and 3-phase / 5-pole) – PRCD-K (single-phase / 3-pole)- PRCD (2-pole / 3-pole)
  • Function test, i.e. tripping test by means of simulating the following faults:- Interruption – Wire reversal- PE to phase
  • Measurement of protective conductor current with current clamp transformer
  • Measurement of protective conductor and insulation resistance with the PROFITEST MXTRA tester
  • Tripping test with nominal residual current and measurement of time to trip with PROFITEST MXTRA tester
  • Evaluation and documentation of the individual test steps with the PROFITEST MXTRA tester and ETC software

Istruzioni per l’uso
Scheda tecnica
Opuscolo, volantino, brochure, …

1 Test adapter
1 Probe cable with plug-in test probe
1 Set of operating instructions
