PROFiTEST MF TECH EVSE Set for Testing the Effectiveness of Protective Measures at Stationary Electrical Systems, in Particular Electric Charging Points, After Completion, Repair, Expansion and Periodic Testing, Especially for the Fulfillment of DGUV Regulation 3

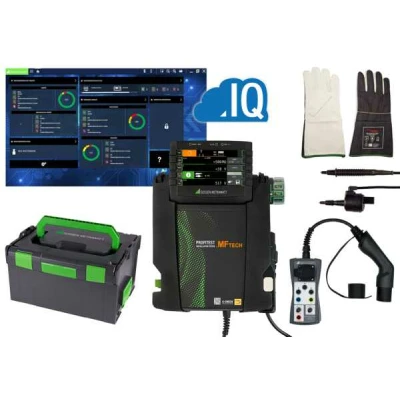

PROFiTEST MF TECH EVSE-Set with PROFiTEST MF TECH, METRALINE PRO-TYP EM II and defined accessories for testing electric charging points

  • Context-sensitive color graphic display
  • Measuring and test sequence – easy setup of the system structure / measuring and storage / report generation
  • Preconfigured and user programmable test sequences for testing electric systems quickly
  • Storage concept for up to 50,000 data records
  • Testing of all up-to-date AC/DC sensitive RCDs, RDC-DDs and RCMBs
  • User safety thanks to PE detection when using finger contact
  • Forward-looking connectivity

  • Defined accessories for special measuring tasks
  • Broad-range measuring device for all alternating and 3-phase electrical systems with voltages from 65 to 500 V and frequencies of 15.4 to 420 Hz
  • Loop and line impedance measurement with DC bias magnetization
  • Measurement of insulation resistance using nominal voltage, with variable or rising test voltage
  • Low-resistance measurement with automatic polarity reversal
  • Testing of residual current devices and special RCCBs (selective S, SRCDs, PRCDs, Schukomat, Sidos, types G/R, AC, A, A-EV, F, F-EV, B, B+ and B-MI)
  • Testing of RDC-DDs per IEC 62955 and RCMBs per IEC 62752
  • Testing of RCCBs in IT systems
  • Measurement of earth resistance (mains operation)
  • Standards-compliant testing of charging stations per IEC 61851-1 in combination with a suitable test adapter
  • Automatic test sequence function
  • USB port
  • Push-print function – transmission of the measured value after measurement

  • Defined accessories for special measuring tasks
  • Intuitive user prompting with help function which provides support for pending measuring tasks
  • All decisive measuring functions can be quickly selected with the rotary switch
  • Especially well-suited for mobile use, even at construction sites and in industrial environments, thanks to the compact, impact-resistant housing with integrated rubber protector
  • Also suitable for international use thanks to extensive setting options for language etc.
  • 4-wire measuring method – no compensation of the measurement cables is required

The test instrument set is suitable for testing stationary electrical installations, in particular electric charging points such as wall boxes and charging stations.

Single and 3-phase charging points can be tested for correct functioning and electrical safety:

  • IEC 61581-1 (DIN VDE 0122-1)
  • IEC 60364-4 (DIN VDE 0100-600)
  • EN 50110-1 (DIN VDE 0105-100)

Istruzioni per l’uso
Certificato CE
Scheda tecnica
Guida di riferimento rapido
Opuscolo, volantino, brochure, …
Opuscolo, volantino, brochure, …
The latest firmware is now available for downloading in our download area “myGMC”.
License and Open Source Software Information

1 Earthing contact plug insert (country-specific)
1 Two-pole measuring adapter
1 Cable for expansion into a 3-pole adapter (PRO-A3-II)
2 Alligator clips
1 Neck strap
1 Set of rechargeable batteries (Z502H)
1 Charger (Z502R)
1 Condensed operating instructions
1 Supplementary sheet with safety information
1 DAkkS calibration certificate
1 USB interface cable
1 Pair of safety gloves for protection against internal arcs
1 SORTIMO plastic system case with insert
1 IZYTRONIQ Business Professional software
1 IZYTRONIQ coupon for 12-month cloud subscription
