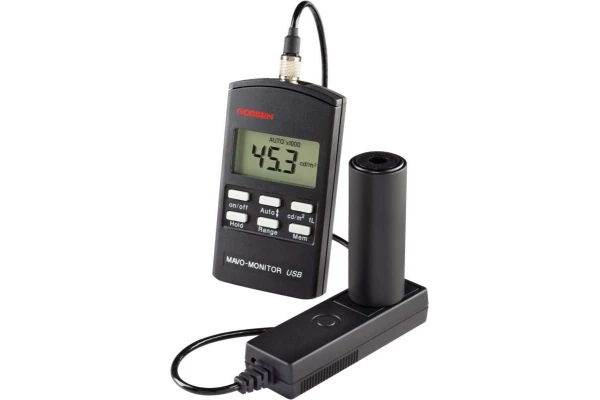

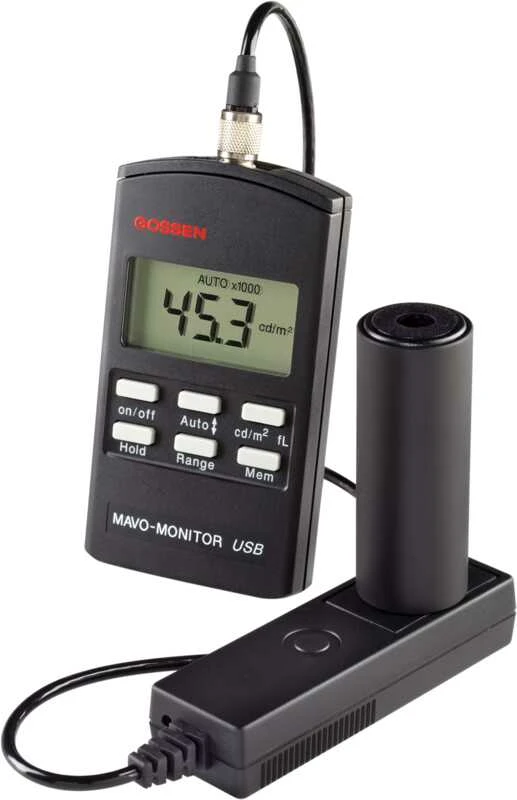

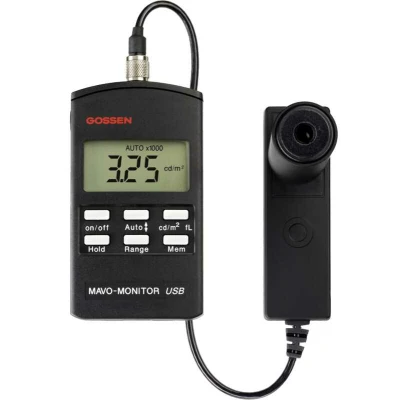

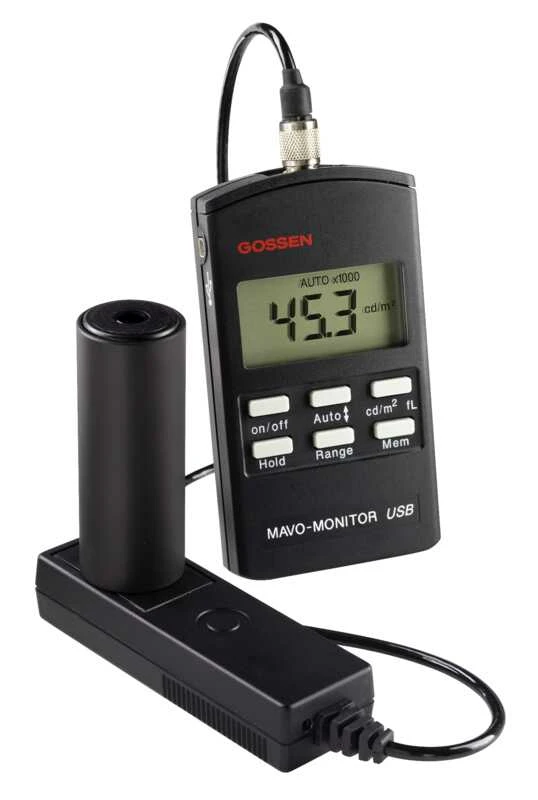

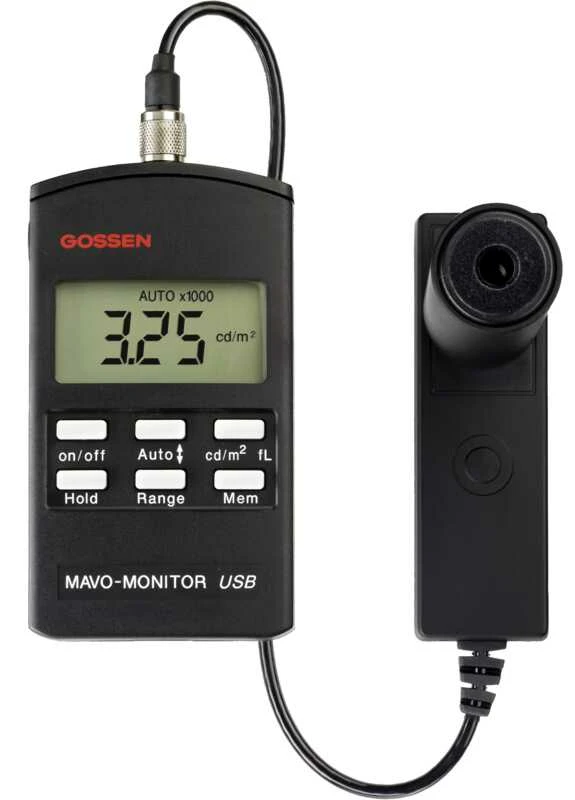

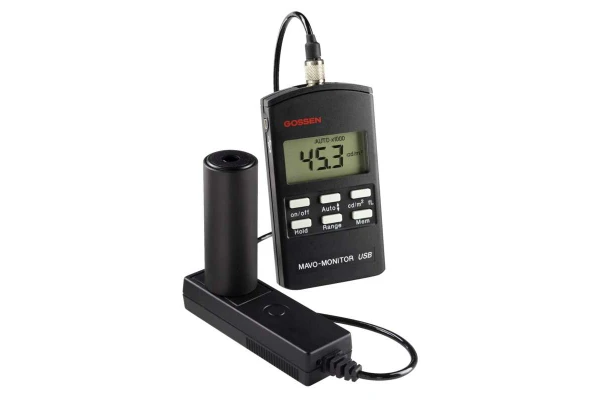

Luminance meter class B DIN 5032-7 for contact measurement

The high-precision luminance meter for contact measurement is classified according to class B DIN 5032-7, DIN EN 13032-1 appendix B and ISO/CIE 19476. It measures the brightness effect of a luminous surface in candela per square meter (cd/m²) or foot-lambert (fL).

  • Attachment measurement Adapter disc as scratch protection, positioning aid and to exclude light incidence
  • Simple system integration, serial data transmission, open protocol
  • Optional versions with 3 m, 5 m and 10 m probe connection cable
  • Continuous operation via USB with power bank, plug-in power supply or on the PC
  • Acquisition, display and storage of the measured values via GLUX 2 Software
  • Measuring device and calibration from a single source!


  • Measuring range: 0.01 cd/m² … 19,990 cd/m²
  • Accuracy: +/- 2.5% +/- 2 digits


  • Supply: 1 × 1.5 V Mignon type AA, continuous operation via USB interface
  • Interface: USB 2.0, Mitsumi Mini-B socket
  • Memory: 100 readings

Istruzioni per l’uso
Opuscolo, volantino, brochure, …

1 x adapter disk
1 x 1.5V Mignon alkaline manganese battery (IEC LR 6)
1 x USB 2.0 cable plug A to Mitsumi plug Mini-B, length 1.5 m
1 x GLUX 2 software ( Download)

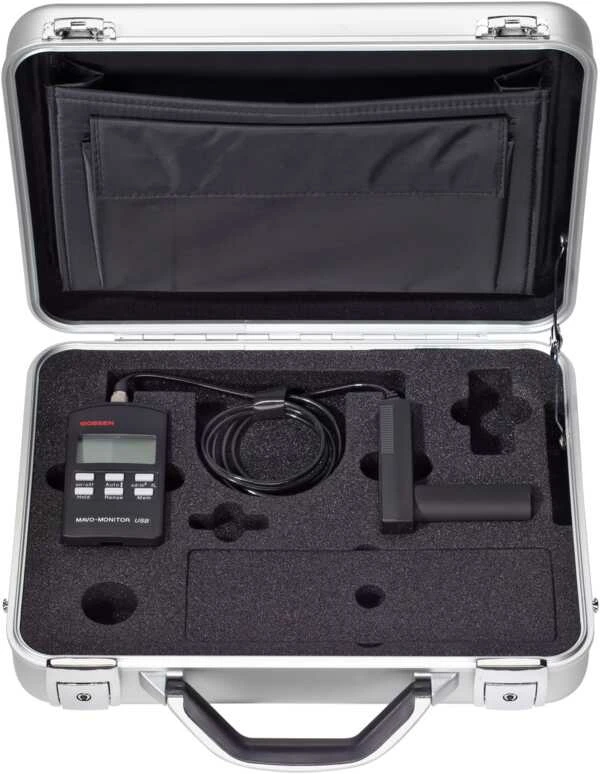

1 x aluminum transport case
1 x operating instructions D/GB
1 x calibration report
