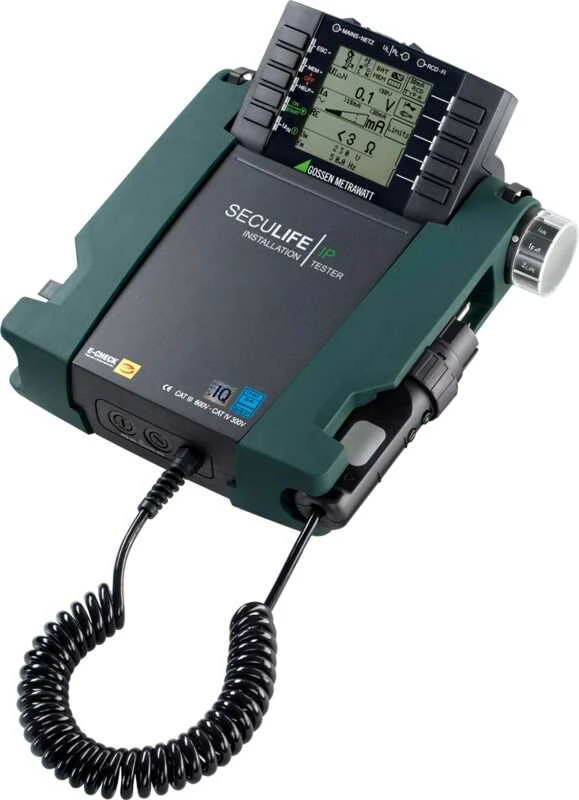

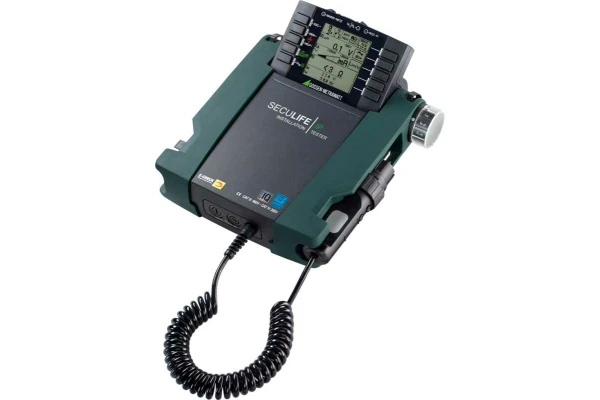

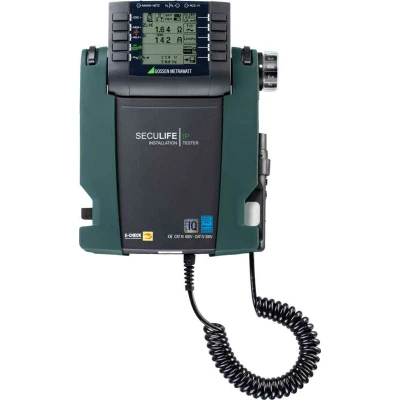

SECULIFE IP IQ

SKU: M535ECategoria: Etichette: , , , ,

The SECULIFE IP IQ provides all measuring and test functions for testing the effectiveness of protective measures at stationary electrical installations – with predefined, or optionally with programmable test sequences which are required in accordance with test standards IEC 60364-6 (DIN VDE 0100-600) and EN 50110-1 (DIN VDE 0105-100). Measuring category: 300 V CAT IV/ 600 V CAT III.

  • Measuring and test sequence – easy setup of the system structure / measuring and storage / report generation
  • Preconfigured and user programmable test sequences for testing electric systems quickly
  • Storage concept for up to 50,000 data records
  • Testing of all up-to-date AC/DC sensitive RCDs, IMDs and many others
  • User safety by means of PE detection when using finger contact

  • Broad-range measuring device for all alternating and 3-phase electrical systems with voltages from 65 to 500 V and frequencies of 15.4 to 420 Hz
  • Loop and line impedance measurement with DC bias magnetization
  • Measurement of insulation resistance using nominal voltage, with variable or rising test voltage
  • Low-resistance measurement with automatic polarity reversal
  • Testing of residual current devices and special RCCBs (selective S, SRCDs, PRCDs, Schukomat, Sidos, types G/R, AC, A, F, B, B+, EV and MI) • Testing of RCCBs in IT systems
  • Testing of insulation monitoring devices (IMDs)
  • Leakage current measurement with PRO-AB adapter
  • Automatic test sequence function
  • USB/Bluetooth port
  • Push-print function – transmission of the measured value after measurement

PROFITEST – versatile and future-proof

  • Intuitive operation
  • Efficient work
  • Standards-compliant testing
  • Legally secure documentation

PROFITEST – saves time and money

  • A single test instrument for a broad range of applications
  • All measurements without any bothersome replugging of the measurement cables
  • Can be used all over the world thanks to language selection

PROFITEST – even 10 years down the road

  • Future-proof thanks to firmware updates
  • 10-year service guarantee
  • DAkkS certificate issued by own calibration laboratory
  • User support for questions about testing

PROFITEST – quick and easy report generation

  • Cascadable, future-proof software concept
  • Modern data management by means of customer and measurement data administration
  • Creation of system structures – from the system all the way down to the measuring points
  • Quick and easy generation of a legally secure report per ZVEH

PROFITEST – reliable measuring and testing

  • Easy operation with rotary switch
  • Predefined test sequences for structured testing
  • On-site help thanks to help function with wiring diagrams
  • Measuring category: 600 V CAT III / 300 V CAT IV
  • 4-wire measuring method – no compensation of the measurement cables is required

Testing of the effectiveness of protective measures at stationary electrical installations per IEC 60364-6 (DIN VDE 0100-600), EN 50110-1 (DIN VDE 0105-100), and testing in IT systems

Istruzioni per l’uso
Supplemento
Scheda tecnica
Guida di riferimento rapido
Guida alla configurazione rapida

1 SECULIFE IP
1 Earthing contact plug insert (country-specific)
1 Two-pole measuring adapter
1 Cable for expansion into a 3-pole adapter (PRO-A3-II)
2 Alligator clips
1 Neck strap
1 Set of rechargeable batteries (Z502H)
1 Charger (Z502R) 1 Condensed operating instructions
1 Supplementary sheet with safety information
1 DAkkS calibration certificate
1 USB interface cable
1 IZYTRONIQ Business Starter software
