The current clamp sensors listed below are available for the 150 and 1500 A AC/DC measuring ranges, as well as for operation strictly with batteries or with a 9 V DC mains power pack.

AC/DC – Clamps Current Range Intrinsic Phase Error Frequency Range Cross Ø Art.No.

Type ±% from Mw ±° @ 45-65Hz max.

@45-65 Hz mit

PR150/SP2B Battery 15 -150 A 1% 3° DC-5kHz Ø 52mm Z817N

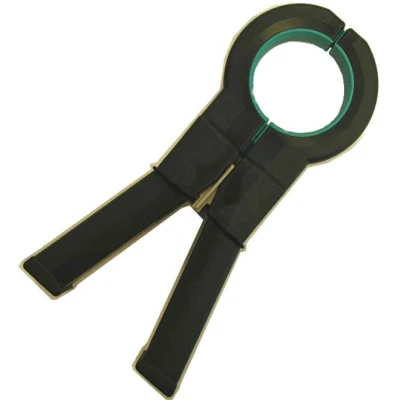

PR1500/SP8B Battery 150-1500 A 1% 3° DC-5kHz Ø 52mm Z817O

PR150/SP1B 15 -150 A 1% 3° DC-5kHz Ø 52mm Z817P

PR1500/SP7B 150-1500 A 1% 3° DC-5kHz Ø 52mm Z817Q

  • Application: Power measurements with power analyzers – because of low phase error
  • Connector: Hypertronic plug for power analyzers
  • Output: Voltage
